Broen 2-й , душ для промывки глаз, сквозь столешницу, Н/Р сталь
Бренд:
Единица: комплект
Время доставки: 14-21 дней
Обязательно указать в спецификации проекта : PEGU OÜ
Min. working pressure: 1.5 bar for all Eye Showers
Видео
Ögon/ansiktsdusch med bänkfäste. Alla delar är ytbehandlade med BROEN-LABs POLYCOAT som inte bara gör att ögon-& ansiktsduschen syns väldigt bra, den står även emot de flesta kemikalier, UV blekning och värme. Utrustad med FLOWFIX som gör spolbilden stadig i varierande vattentryck. Aktiveras automatiskt när den vrids fram över diskho, stängs när den vrids tillbaka.
• Min. arbetstryck: 1,5 bar
• Bänkmontage
• POLYCOAT står emot de flesta kemikalier
• FLOWFIX: 26 l/min
• 2-sidig efterlysande skylt, dekal & testkort
• Vikt: ca. 4 kg
• Anslutning: inv. DN15
Artikel nummer: 17 231 009
Wall mounted double eye wash
Wall mounted eye shower with a two 45° angled heads, incl. 1.5m inlet hose.
Trigger operated including a built-in check valve and FLOWFIX for regulation of water flow (14 l/min).
Description
Wall Mount Double Eye Wash
SAFETY
Improved trigger lock
Improved activation of the shower
OPERATION
Stay-open dust cap
Light weight
Well-balanced construction
Better spray pattern
RELIABILITY
Easy-to-clean spray head
Anti-limescale design and material choice
Improved functionality
Longer lifetime
Wall-mounted safety shower
Ref. 9108
Wall-mounted safety shower with manual control includes:
Frost-free system as standard.
Circular shower head Ø 250mm in green, shock-resistant ABS.
1/4-turn, nickel-plated brass valve opens and closes quickly.
Water flows simply by pulling on the triangular handle.
The flow will continue even when the handle is released.
The flow will stop when the handle is returned to its original position.
Flow rate 70 lpm at 1 bar dynamic pressure (120 lpm at 3 bar dynamic pressure).
Water supply F1".
Pipework made from galvanised steel, grey powder-coated finish. Triangular pull handle in green powder-coated brass.
Supplied with identification sign for first aid equipment: "Safety Shower".
For cross wall installation, with recessed supply, or for mounting on a false ceiling (we recommend a 1" mounting bracket).
TECHNICAL FEATURES
Wall-mounted safety shower
Ref. 9108
| Supply | F1" |
|---|---|
| Height | 450mm |
| Length | 625mm |
| Flow rate | 120 lpm at 3 bar dynamic pressure |
| Finish | Epoxy |
Broen 1-й , душ для промывки глаз, сквозь столешницу, Н/Р сталь
Broen 1-le silmadele 45", hädaabi silmadušš, lääbiviik
Min. working pressure: 1.5 bar for all Eye Showers
No. 27 10 003 10 05 011
Weight: Approx. 0.5 kg

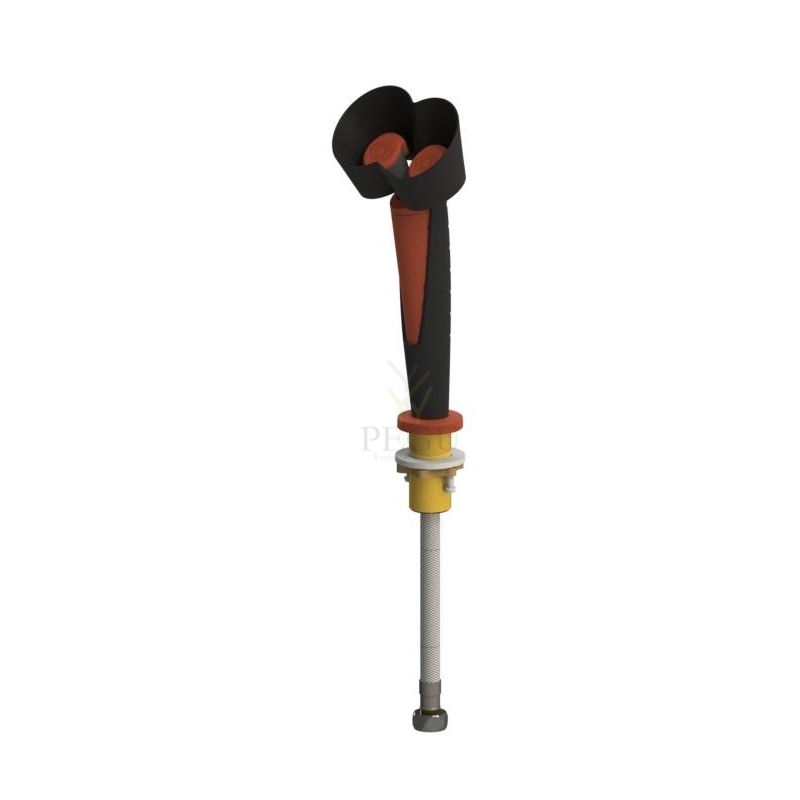

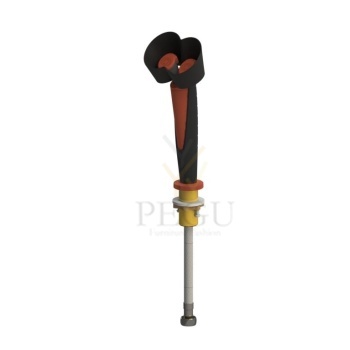

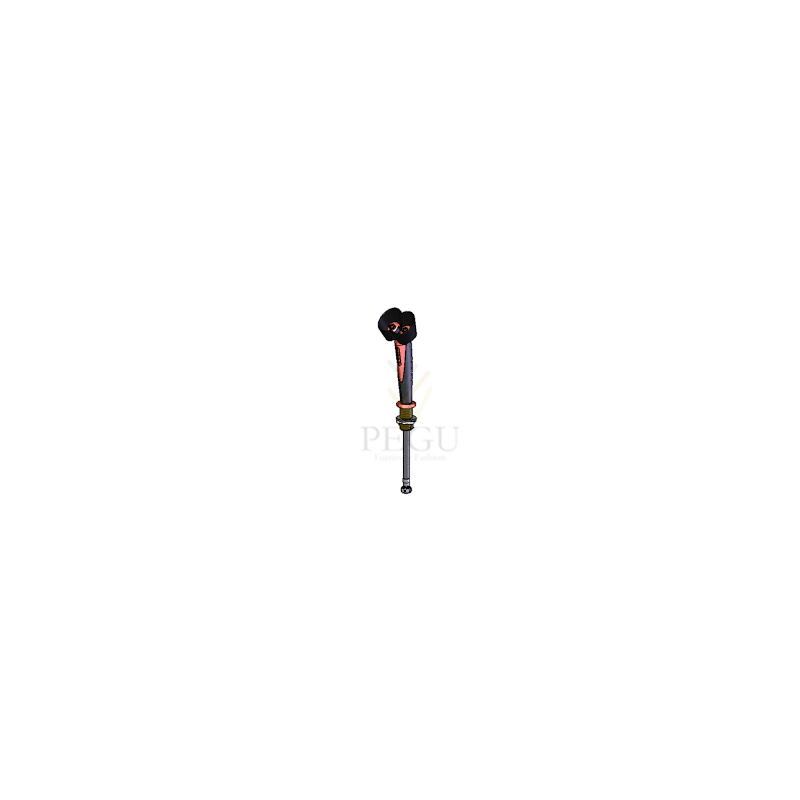

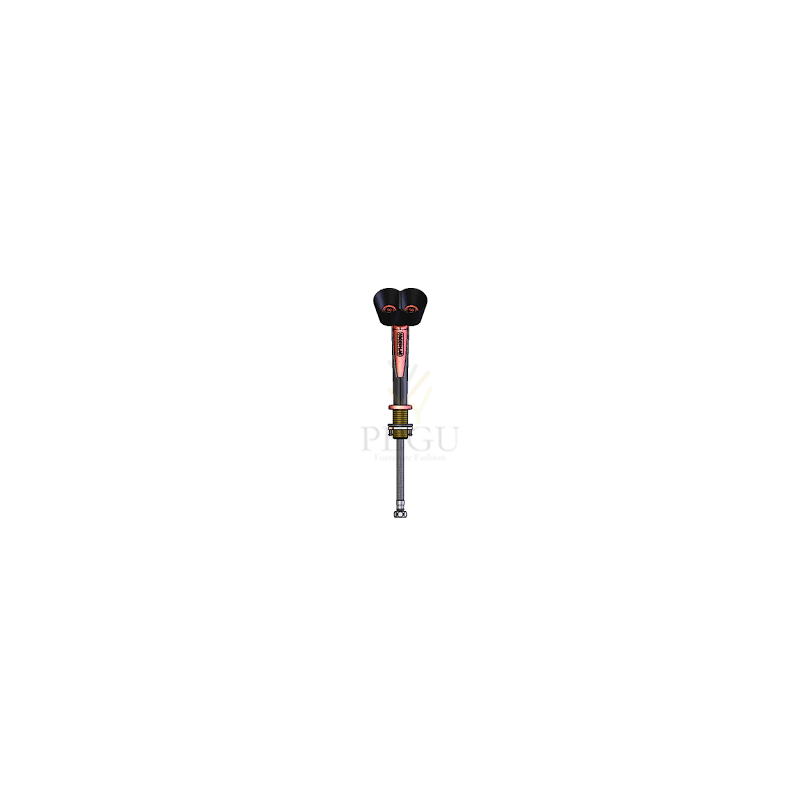

Table mounted eye shower with
a single 45° head, incl. 1.5m inlet hose. Trigger operated including a built-in check valve and FLOWFIX for regulation of water flow (7 l/min).
Min. working pressure: 1,5 bar.
