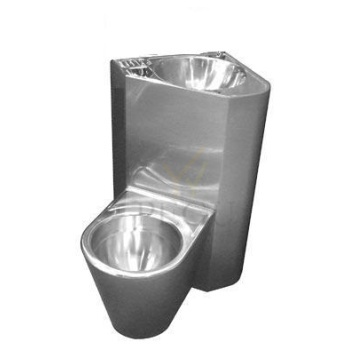

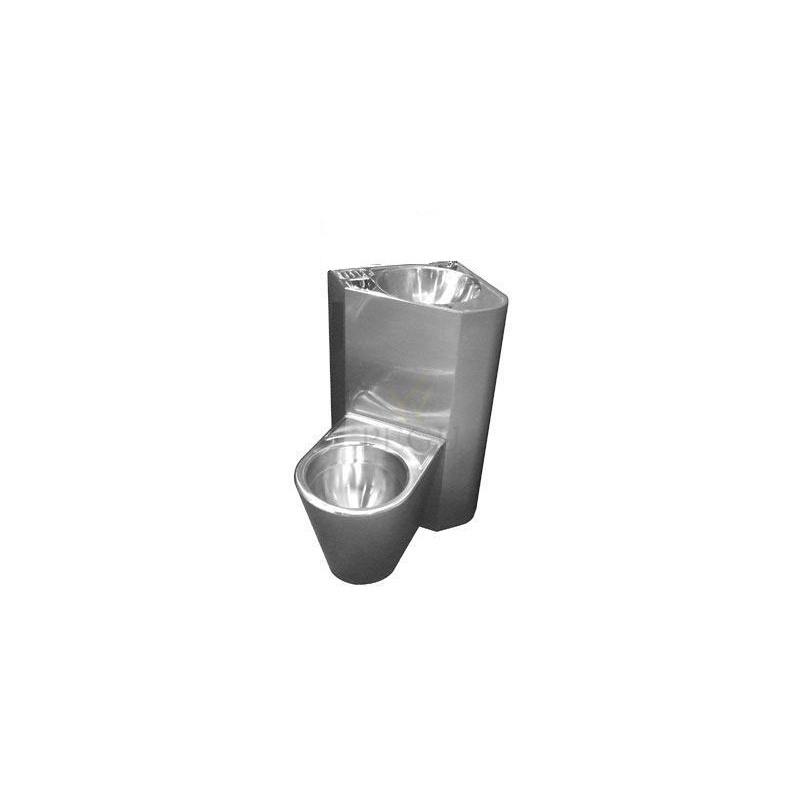

COMPACTO WC+раковина справа непольный, антивандальный Н/Р сталь AISI304
Бренд:
Единица: шт
Время доставки: 6-7 недель
Продавец: PEGU OÜ
R/V teras WC pott ja valamu
AISI304 paksus 1,5 mm
Kinnitus poltidega läbi seina
Loputus ühendus 1"
WC äravool 100mm
Valamu ärravool 32mm
NB! Vee mehhanismid on vaja tellida eraldi
> Working pressure : 1 to 5 bar
> Volume of water delivered : Adjustable from 6 to 9 litres with stop valve Anti-water-hammering design
> Flow time : From 7 to 9 seconds
> Hydraulic supply : MM G 1"1/4 In line Outlet connection on flush pipe Ø 32 mm
> Material and colour finish : Body and cross-partition control in Brass Push Button in Brass, chrome finish
> Security : Anti-siphonic device
> Delivered with : 1 Ball valve integrated 1 cross partition control 15 to 200m 1 fitting out, 1 bent tube and 1 junction nozzle
> Standards & approvals : Brass body in accordance with EN 1982, EN 12164, EN 12165 Molded chrome-plated body in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
> Working pressure : 1 to 5 bar
> Flow : 6 l/min at 3 bar - 4-position flow adjustment device Anti-water-hammering design
> Flow time : 15 seconds (± 5 sec.)
> Hydraulic supply : In-line water inlet M G 1/2" Inlet and outlet Cold water
> Thermal resistance : Resistant to a temperature of 75°C for 30 minute thermal shock
> Security : Patented anti-blocking "S" system to avoid the water to flow continuously
> Delivered with : 1 Cross-partition control (1 to 200 mm thick) 1 Short wall spout (Non-rotating fixing) 87 mm 1 Closing tap with S anti-blocking system 1 stop valve M 1/2" (15x21) / M 1/2" (15x21) with quick couplings (12x14 mm) Instruction manual
> Standards & approvals : Brass body in accordance with EN 1982, EN 12164, EN 12156 Molded chrome-plated body in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 922
DESCRIPTION TEMPOFLUX 1 direct flush valve - Ref. 761200
Cross wall time kit for direct flush: Cross wall control, can be cut-to-size.
Soft-touch operation. Time flow ~7 sec.
Vacuum breaker.
Integrated stopcock and flow/volume rate adjuster.
Solid brass body and chrome-plated push-button.
In-line inlet M3/4".
Connection washer Ø 32/55mm.
For walls ≤ 200mm, without tube.
| Connector | 3/4" |
|---|---|
| Length | 200mm |
TECHNICAL FEATURES
TEMPOSTOP time flow tap
Ref. 741943
| Connector | M1/2" |
|---|---|
| Technology | Time flow |
| Length | 200mm |
| Spout length | 75mm |
| Flow rate | 3 lpm |
TEMPOSTOP time flow tap
Ref. 741943
Cross wall time flow tap with swivel spout :
Time flow ~7 sec.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.5 to 6 lpm.
Tamperproof scale-resistant flow straightener.
Solid chrome-plated brass body M1/2".
Control ≤ 200mm and spout ≤ 230mm cut-size.
Anti-rotating pin and back-nut. AB anti-blocking system.
AB anti-blocking system: water will flow only when the push-button is
