Delabie Be-line lift-up съёмное душевое сидение с ногой алюминий антрацит
Бренд:
Единица: шт
Время доставки: 14-21 день
Обязательно указать в спецификации проекта : PEGU OÜ

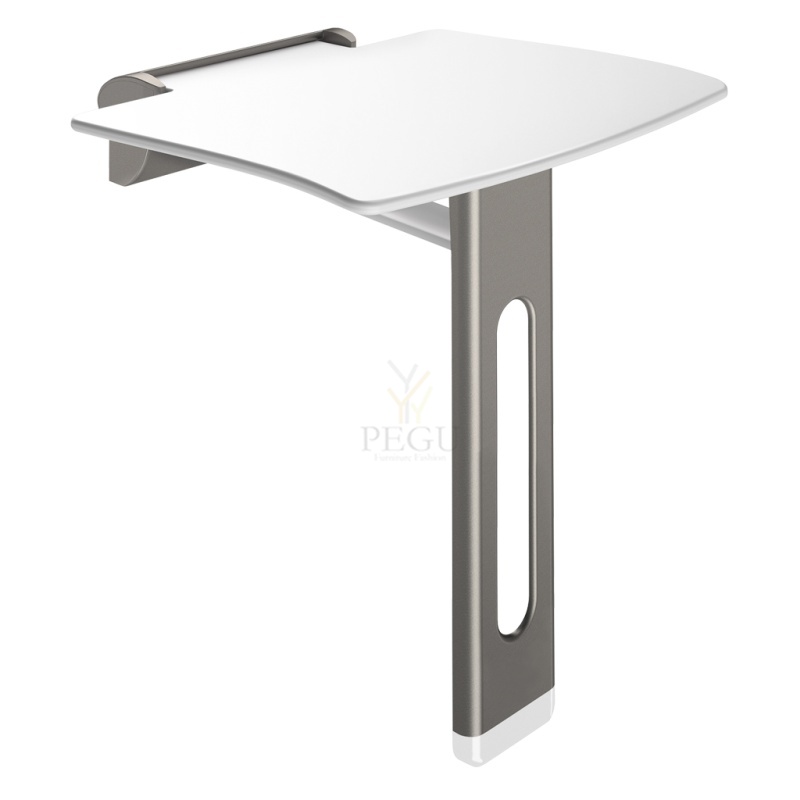

Be-line lift-up shower seat with leg
Ref. 511930C
Be-line removable lift-up for people with reduced mobility.
Large model.

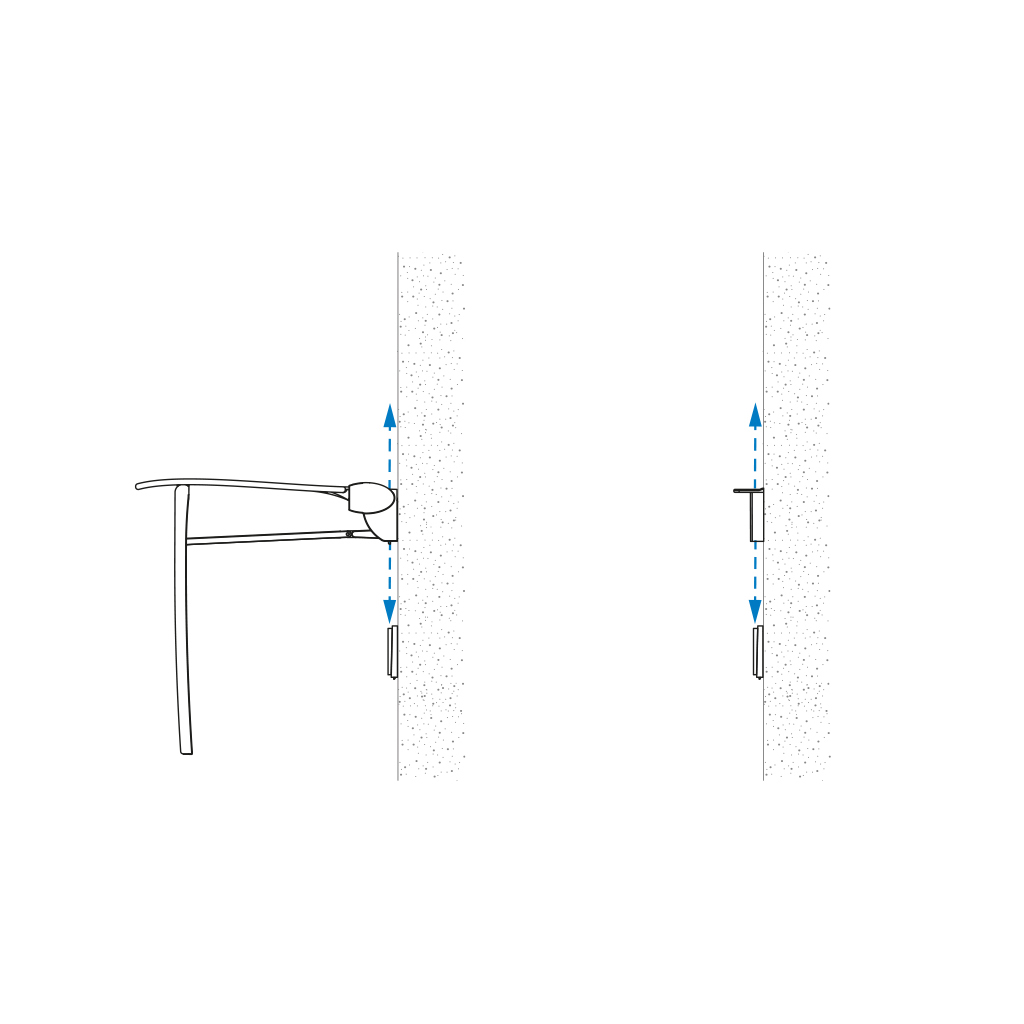

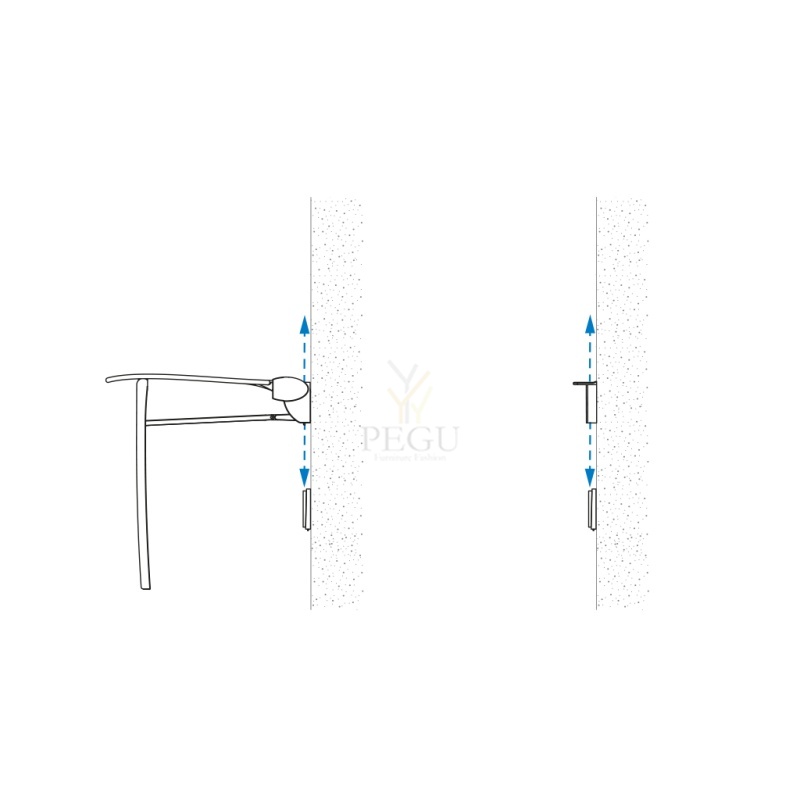

Removable: easy to remove with anti-theft locking system. Reduces the number of shower seats in a facility, allowing installation only when required e.g. hotels or hospitals providing short-term accommodation for people with reduced mobility.
Retained in upright position. Slowed down descent.
Suitable for intensive use in public places or the healthcare sector.
Solid seat made from high strength polymer.
Non-slip surface.
Reinforced by a central, hinged leg which folds automatically.
Metallised anthracite finish provides a good visual contrast with the wall.
5 concealed fixing points.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.

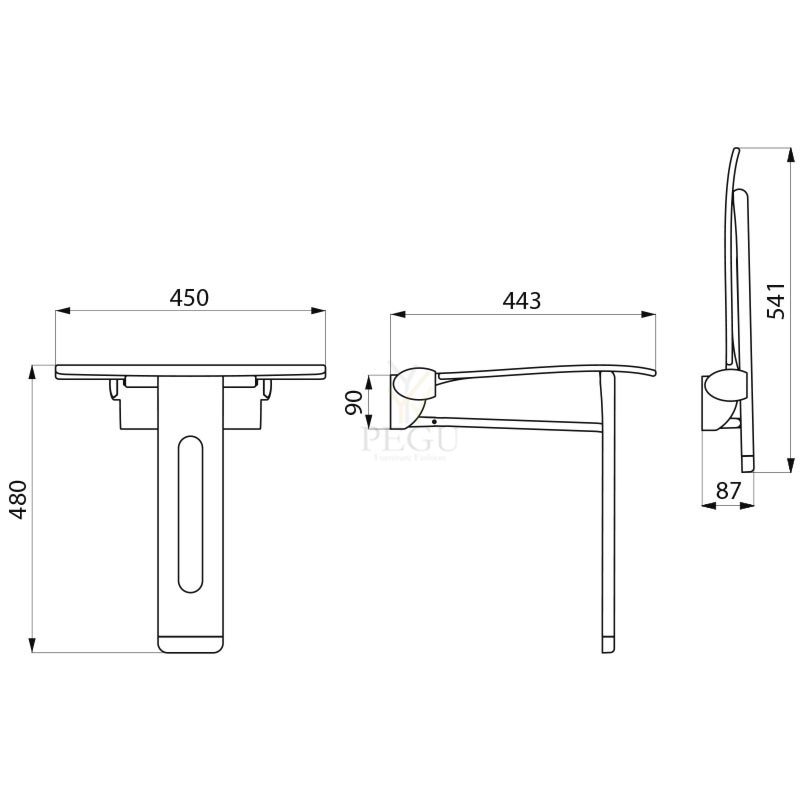

Dimensions: 443 x 450 x 480mm.
Folded dimensions: 87 x 541mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
Technical features
Be-line lift-up shower seat with leg
Ref. 511930C
| Height | 480mm |
|---|---|
| Depth | 443mm |
| Width | 450mm |
| Finish | Metallised anthracite |
Be-Line drop-down support rail with leg, L. 650mm, anthracite
Ref. 511962C
Be-Line drop-down support rail for people with reduced mobility.
In the lowered position use as a grab bar, as a support for standingand for assisting movement, for WCS or showers.
Allows side access in the raised position.
Removable: easy to remove with anti-theft locking system. Reduces the number of barsin a facility, allowing installation only when required.
Example: hotels or hospitals providing short-term accommodation for people with reduced mobility.
Retained in upright position. Slowed down descent.
Aluminium tube.
Rounded profile Ø 42mm with ergonomic flat front face that prevents rotation for an optimal grip.
Metallised anthracite powder-coated aluminium finish provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
Concealed fixings secured to wall by a 304 stainless steel plate, 5mm thick.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Leg provides additional reinforcement when wall fixings are not enough.
Dimensions: 650 x 825 x 120mm.
Leg height can be adjusted from 760 - 780mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
TECHNICAL FEATURES
Be-Line drop-down support rail with leg, L. 650mm, anthracite
Ref. 511962C
| Height | 210mm |
|---|---|
| Length | 650mm |
| Width | 120mm |
| Finish | Powder-coated metallised anthracite aluminium |
Be-Line® matte white straight grab bar Ø 35mm, L. 900mm
Ref. 511909W
Be-Line® grab bar Ø 35mm, for people with reduced mobility.
For use as a handrail or grab bar for WCs, showers or baths.
Aluminium tube, 3mm thick. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Matte white powder-coated aluminium finish provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall:minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
900mm centre-to-centre.
Tested to over 200kg. Maximum recommended user weight: 135kg.
Technical features
Be-Line® matte white straight grab bar Ø 35mm, L. 900mm
Ref. 511909W
| Length | 900mm |
|---|---|
| Width to the wall | 38mm |
| Thickness | 3mm |
| Finish | Matte white powder-coated aluminium |
Description
Be-line corner grab bar Ø 35mm with sliding vertical bar, for showers
Ref. 511949W
Be-line corner grab bar with sliding vertical bar Ø 35mm, for showers.
Use as a grab bar and to support the user in an upright position.
Helps and secures entry and movement in the shower.
Use as a shower rail by adding a sliding shower head holder and/or soap dish.
Upright position can be adjusted during installation: can be moved to the left or the right in order to adapt the space (positioning of shower, depth of shower seat...).
Dimensions: 1,130 x 695 x 695mm.
Aluminium tube thickness 3mm. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Matte white powder-coated aluminium provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Tested to over 200kg. Maximum recommended user weight: 135kg.
Technical features
Be-line corner grab bar Ø 35mm with sliding vertical bar, for showers
Ref. 511949W
| Height | 1,130mm |
|---|---|
| Length | 695mm |
| Width | 695mm |
| Width to the wall | 38mm |
| Thickness | 3mm |
| Finish | Matte white powder-coated aluminium |
Be-Line® wall-mounted toilet brush set
Ref. 4048MW
Wall-mounted Be-Line® toilet brush set without lid.
White powder-coated 304 bacteriostatic stainless steel.
Model with anti-theft lock for fixing.
Robust model.
Easy to clean: plastic bowl can be removed from above.
Plastic bowl with reservoir: prevents the brush from sitting in stagnant water and splashing when next used.
Stainless steel thickness: 1mm body.
Dimensions: Ø 90 x 330mm.
TECHNICAL FEATURES
Be-Line® wall-mounted toilet brush set
Ref. 4048MW
| Height | 330mm |
|---|---|
| Finish | 304 stainless steel powder-coated matte white |
Normbau Inox Care Lift-up регулируемая инвалидная ручка 2050010 vario, suspendable, L = 600mm, с настенным креплением
Normbau Inox Care Lift-up inva käepide ülestüstetav 2050010 vario, suspendable, L = 600mm, siena kinnitusega
Inox Care Lift-up support rail 2050010 vario, suspendable, L = 600mm, with base plate
Lift up support rail vario with base plate,
length 600mm, 32mm dia.,
made of stainless steel, material No. 1.4301 (A2 AISI 304), brushed finish, left or right hand application, space required in vertical position 193mm from wall, with adjustable brake, easy installation by mounting to a base plate.
Base plate, made of stainless steel for balanced wall mounting, concealed screw fixing, supplied without fixing screws and plugs, conform to German standard DIN 18040 1-2, maximum loading permitted: 125 kgs.
850mm length conform to German standard DIN 18040-1/2, Austrian standard ÖNORM B1600.
TÜV PRODUKT SERVICE certified.
Select appropriate fixing material to suit site conditions. Can be fitted with paper roll holder 2050 300 may be added at a later stage.
567,00 €
