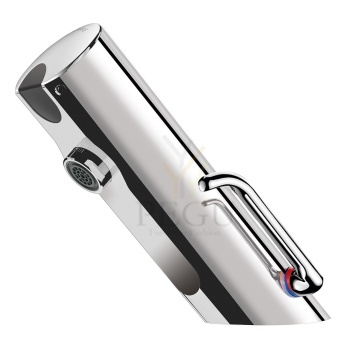

Delabie бесконтактный электронный смеситель TEMPOMATIC MIX 4 6V

Если вы нашли подходящий товар, просто нажмите В КОРЗИНУ, перейдите в КОРЗИНУ, выберите ЗАКАЗ, заполните данные и выберите способ доставки. Всё так просто – покупка всего в нескольких кликах!

Артикул: DE-490006LH
Бренд:
Единица: шт
Время доставки: 14-21 день

Продавец: PEGU OÜ

For orders from European Union countries, please send a price inquiry to our email. To calculate the shipping cost, please provide the address. For companies, include your VAT number.

ESTO järelmaks kuumaks al. 45,31 €
Цена:
530,70 €
Kuumakse alates: 45,31 €
Кол-во: - +
   - или -

TEMPOMATIC MIX 4 electronic mixer
Ref. 490006LH

Deck-mounted electronic basin mixer:
Battery-operated with integrated 123 6V Lithium batteries.
Reduced-stagnation solenoid valve and electronic unit integrated into the body of the mixer.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.5 - 6 lpm.
Scale-resistant flow straightener.
Duty flush (~60 seconds every 24 hours after last use).
Active, infrared presence detection, sensor at the end of the spout optimises detection.
Chrome-plated metal body.
Cap fixed in place by 2 concealed screws.
PEX flexibles with filters and non-return valves.
Fixing reinforced by two stainless steel rods.
Anti-blocking security.
Side temperature control with long lever and adjustable maximum temperature limiter.
Suitable for people with reduced mobility.





TECHNICAL FEATURES

TEMPOMATIC MIX 4 electronic mixer
Ref. 490006LH

Supply 6V battery
Connector F3/8"
Technology Electronic
Drop height 75mm
Spout length 110mm
Flow rate 3 lpm
