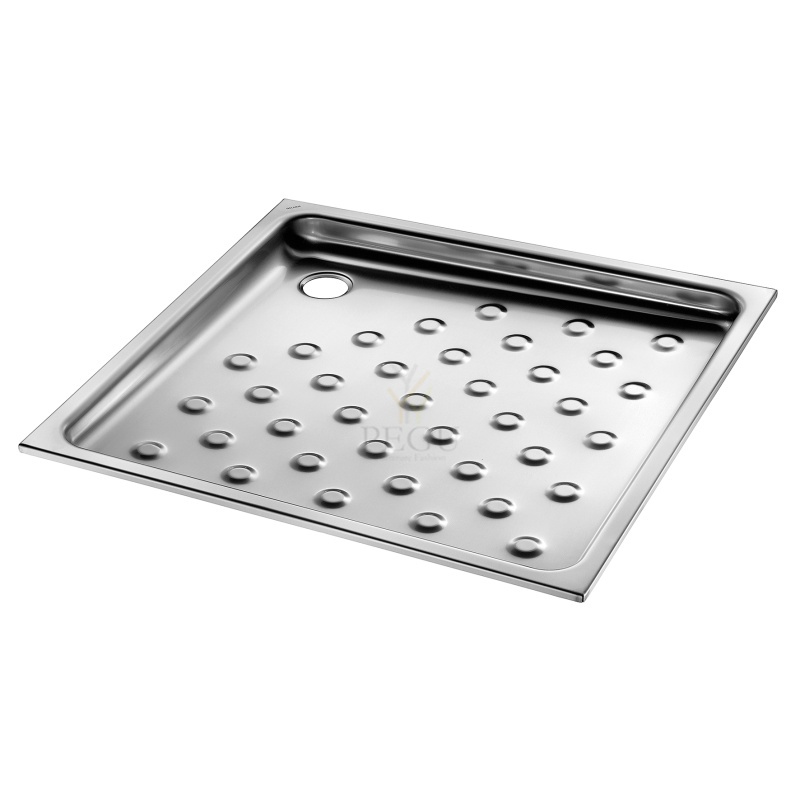

Delabie душевой поддон 700x700mm h60mm нержавеющая сталь

Артикул: DE-150100
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена: 471,00 €
423,90 €
Kuumakse alates: 35,96 €
Кол-во: - +

DESCRIPTION

Recessed shower tray
Ref. 150100

Recessed shower tray, 700 x 700mm.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
One-piece pressed shower tray, seam-free for easy maintenanceand better hygiene.
Rounded internal corners for improved safety in the shower.
Drainage slope.
Supplied with 1 ½" waste.
Non-slip surface.
CE marked. Complies with European standard EN 14527.
Weight: 5.5kg.

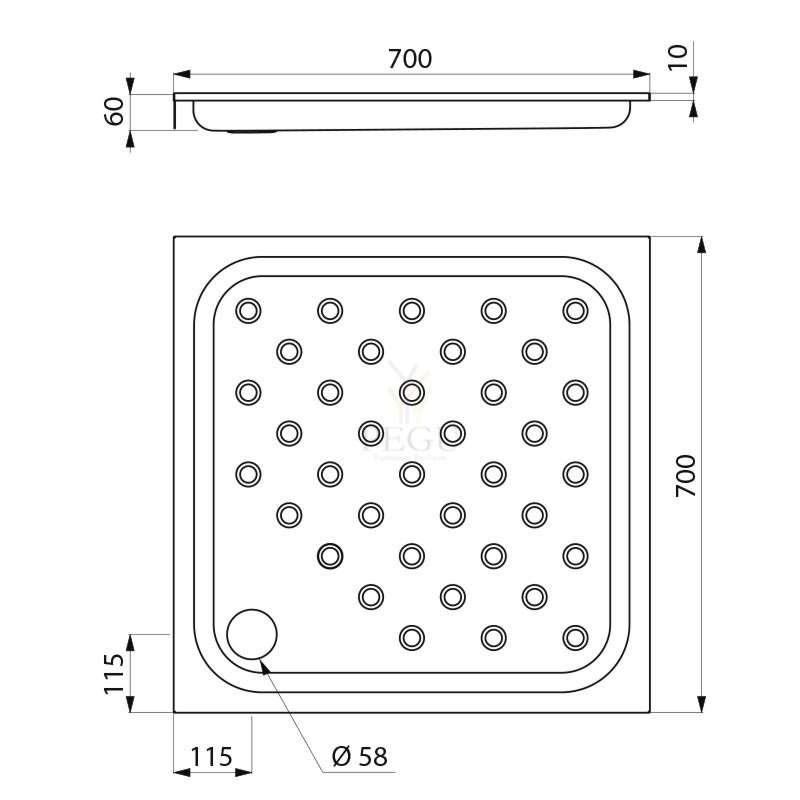

TECHNICAL FEATURES

Recessed shower tray
Ref. 150100

Depth 60mm
Length 700mm
Width 700mm
Thickness 1.2mm
Finish 304 polished satin stainless steel
