Delabie KOMPACT Combi HW/CW WC + раковина слева напольный антивандальный Н/Р сталь AISI304

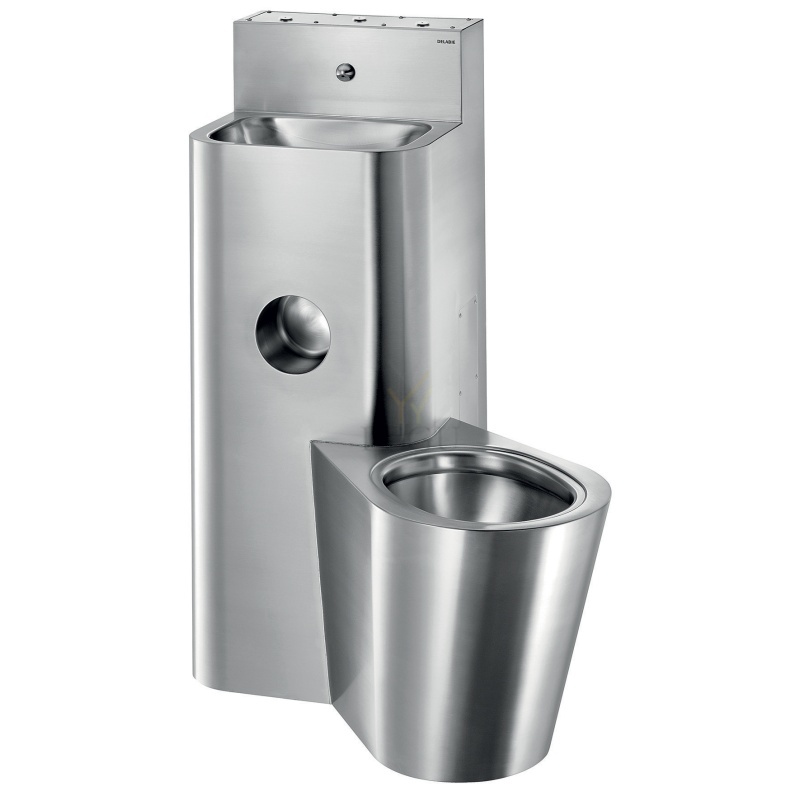

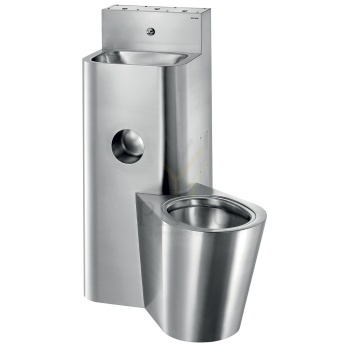

Combi KOMPACT HW/CW - washbasin and floor-standing WC pan
Ref. 161600
Combination unit: washbasin and floor-standing right hand WC pan with recessed toilet roll holder.
Wall-mounted installation with 3 access panels, 2 on the sides and 1 on the top, with theft prevention TORX security screws.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws: makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproof push-button and anti-blocking system, 7-second time flow, M½".
Available with 2 buttons cold water/mixed water.
WC equipped with time flow flush valve, 7-second time flow, M¾".
Water inlet: washbasin M½", WC M¾".
Recessed horizontal water outlet: Ø 100mm.
Supplied with washbasin trap.
Easy to install: only one water outlet for both washbasin and WC, water inlet and outlet already connected.
Weight: 36kg.

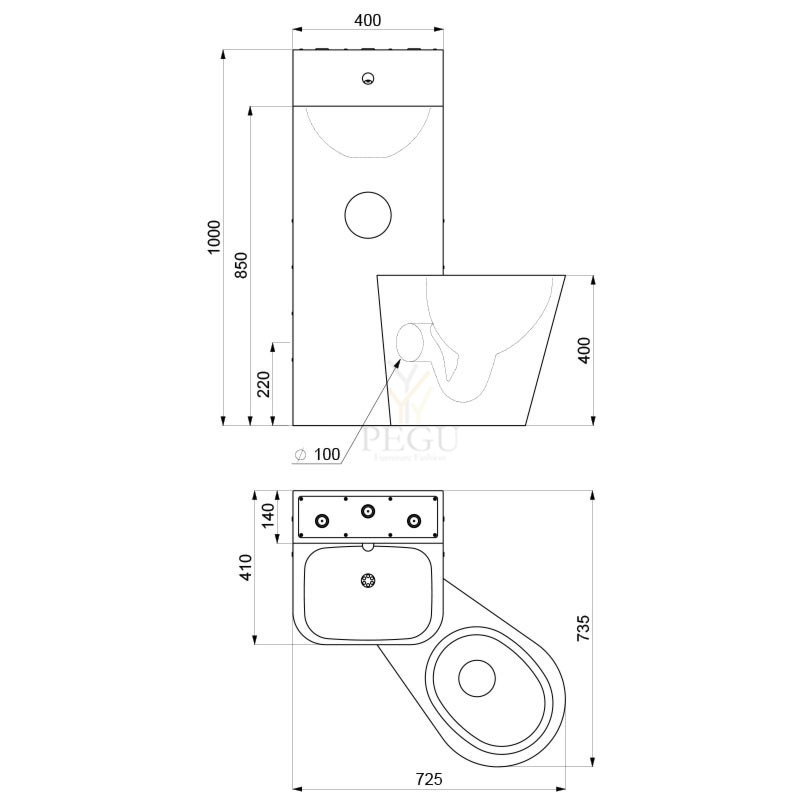

TECHNICAL FEATURES
Combi KOMPACT HW/CW - washbasin and floor-standing WC pan
Ref. 161600
Height | 1000mm |
---|---|
Length | 735mm |
Width | 725mm |
Thickness | 2mm |
Finish | Polished satin 304 stainless steel |
Файлы
HEMI inset round washbasin Ø 310mm - Ref. 120470
Round basin for recessed installation from above or below.
Basin internal diameter: 310mm.
Cut-out diameter: 330mm for installation from above, 310mm for installation from below.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1mm. One-piece, seam-free pressed bowl.
Rounded edges prevent injury. Supplied with 1¼" waste. Without overflow.
CE marked.
Complies with European standard EN 14688. Weight: 1.5kg.
[Formerly ref: 0213470201]
500x490x300
R/V teras AISI 304
835,70 €
General
Size (mm): | 525 x 334 x 97 |
Large bowl (mm): | 500 x 310 x 83 |
Designer: | Halvor Thorsen |
Description
Icon Hand Wash Basin IC1-32 in stainless steel 18/10, is designed for under mounting.The hand wash basin is pressed in one piece and has laser-cut integrated outlet holes that are concealed by a removable outlet cover.The basin is supplied with waste under part and overflow equipment.
Brushed finish.
- Mirror in robust, germ-reducing and easy-care stainless steel mirror sheet metal (AISI 304).
- Mounting: With four Torx® locking screws.
- Delivery includes fixing material.
- Other dimensions available upon request.
- Weight (in kg): 2,8
219,60 €
