Delabie KOMPACT Combi WC + раковина симметричный напольный антивандальный Н/Р сталь AISI304

Артикул: DE-160800
Бренд:
Единица: шт
Время доставки: 4-6 недель
Цена:
3611,20 €
Kuumakse alates: 306,95 €
Кол-во: - +
   - или -

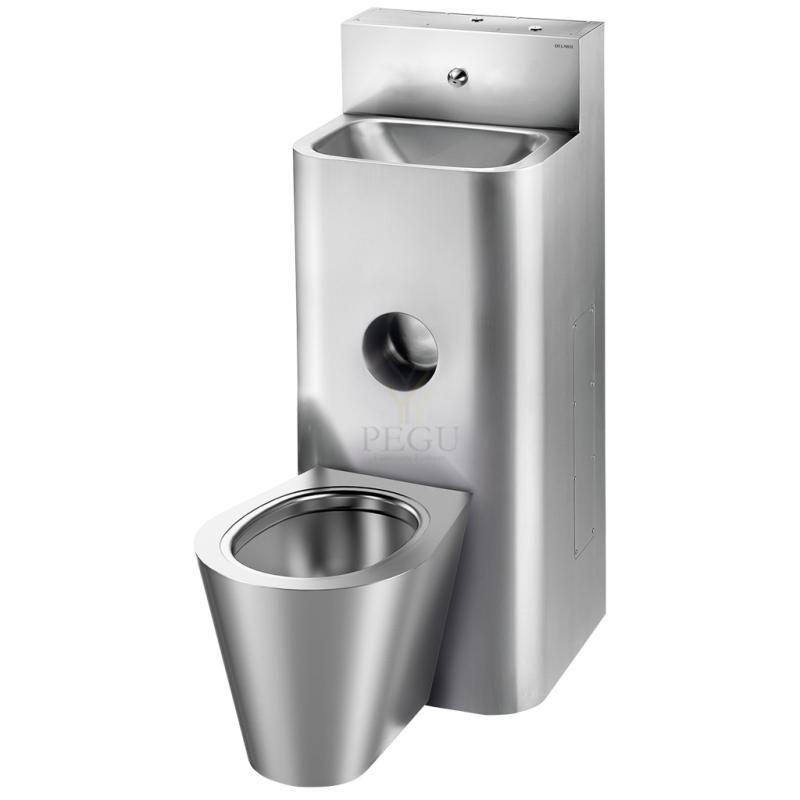

KOMPACT washbasin and floor-standing WC combination
Ref. 160800

Combination unit: washbasin and floor-standing central WC panwith recessed toilet roll holder.
Wall-mounted installation with 3 access panels, 2 on the sidesand 1 on the top with theft prevention TORX security screws.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws:
makes cleaning easier and prevents concealment of objects.
WC pan central to the unit.
Washbasin equipped with time flow tap: stainless steel tamperproofpush-button and anti-blocking system, 7 second time flow, M1/2".
WC equipped with time flow flush valve, 7 second time flow, M3/4".
Water inlet: washbasin M1/2", WC M3/4".
Recessed horizontal water outlet: Ø 100mm.
Supplied with washbasin siphon.
Easy to install: only one water outlet for both washbasin and WC,water inlet and outlet already connected.
Weight: 36kg.
[Formerly ref: 0610030008]



TECHNICAL FEATURES

KOMPACT washbasin and floor-standing WC combination
Ref. 160800

Height 1000mm
Length 735mm
Width 725mm
Thickness 2mm
Finish 304 polished satin stainless steel

Файлы

Схожие продукты
WC рама с бачком и сливной системой , антивандальная с пластиной из Н/Р стали


BSAZ 5

Wall module construction for WC with vandal-resistant st.steel cover






BSAZ 5 is a wall module for wall mounted toilets equipped with anti-vandal stainless steel cover – with resistant stainless safety buttons. The cover is screwed by security bolts therefore it cannot be dismounted without special tools. The system is suitable for spaces where toilet flushing from a cistern is required but where, on the other hand, there is a threat of damaging of usual plastic covers. The robust anti-vandal stainless cover contains stainless control buttons resistant to damage (unlike the usual plastic buttons).



The cover of BSAZ 5 is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).








Version types
BSAZ 5 - Wall module construction for WC with vandal-resistant st.steel cover


Basic technical information
Dimensions of wall module: (1000–1200) × 510 × (160–200) mm
Dimensions of st.steel cover: 510 × 230 × 30 mm
Water inlet: G 1/2"
Outlet: DN 100


Requirements for setting up the construction
  1. Space for mounting the wall module
  2. Water inlet G 1/2"
  3. Waste pipe for outlet connection (DN 100)


Complete delivery
  • wall module with cistern
  • st.steel cover with vandal-proof buttons

Артикул: AZP-BSAZ 5 ,   Время доставки: 3-4 недели
1055,00 €

TECHNICAL FEATURES

TEMPOSTOP time flow tap
Ref. 741943

Connector M1/2"
Technology Time flow
Length 200mm
Spout length 75mm
Flow rate 3 lpm

TEMPOSTOP time flow tap
Ref. 741943

Cross wall time flow tap with swivel spout :
Time flow ~7 sec.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.5 to 6 lpm.
Tamperproof scale-resistant flow straightener.
Solid chrome-plated brass body M1/2".
Control ≤ 200mm and spout ≤ 230mm cut-size.
Anti-rotating pin and back-nut. AB anti-blocking system.
AB anti-blocking system: water will flow only when the push-button is



Артикул: DE-741943 ,   Время доставки: 7-21 день
298,90 €

Wall-mounted PMR XS washbasin
Ref. 120400

Wall-mounted washbasin suitable for people with reduced mobility:shallow basin for easy wheelchair access.
Basin internal diameter: 310mm.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Rounded edges prevent injury.
With no tap hole.
Supplied with 1 1/4" waste.
With no overflow.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 3.9kg.

Артикул: DE-120400 ,   Время доставки: 14-21 день
439,20 €

DUO S TC L washbasin
Ref. 160370

Wall-mounted washbasin with through-the-wallinstallation for service ducts.
Integrated countertop.
Left hand basin.
Basin internal diameter: 310mm. Polished satin finish. Bacteriostatic 304 stainless steel.
Stainless steel thickness: 1.2mm
Rounded edges prevent injury.
Vandal-resistant: shrouded basin.
200mm threaded rod can be cut to size (other lengths are available on request).
Recessed horizontal waste outlet Ø 1".
Flat perforated waste, without screws:
easy cleaning and vandal-resistant.
Without overflow. Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 8.5kg.

Артикул: DE-160370 ,   Время доставки: 14-21 день
799,10 €

Wall-mounted SXS electronic hand washbasin
Ref. 184310

Wall-mounted hand washbasin with electronic control.
Bacteriostatic 304 stainless steel.
Stainless steel thickness: 1.2mm.
Rounded edges prevent injury.
Without splashback.
Supplied with battery-operated electronic mixer with integrated battery and solenoid valve, and chrome-plated brass soap-dispenser.
1¼" waste included. Without overflow.
Water savings: flow rate pre-set at 3 lpm.
Maximum hygiene: no manual contact with tap, reduced stagnation solenoid valve, duty flush prevents bacterial development.
Supplied with fixings.
CE marked. Complies with European standard EN 14688.
Weight: 4.1kg.

Артикул: DE-184310 ,   Время доставки: 14-21 день
1140,70 €
