Delabie кухонный смеситель для профессиональной кухни 5633
Бренд:
Единица: шт
Время доставки: 14-21 день
Обязательно указать в спецификации проекта : PEGU OÜ

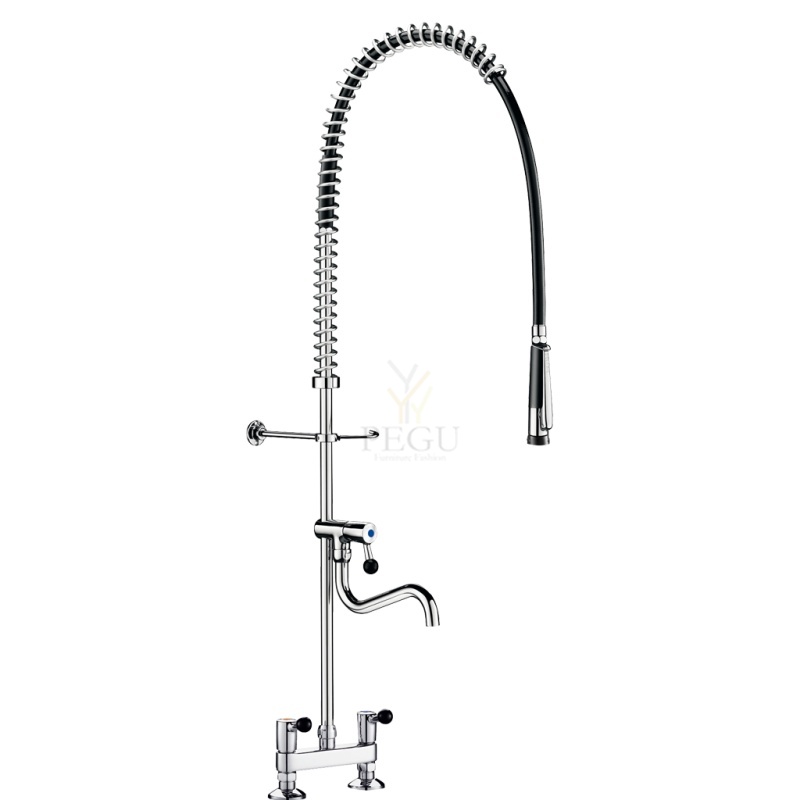

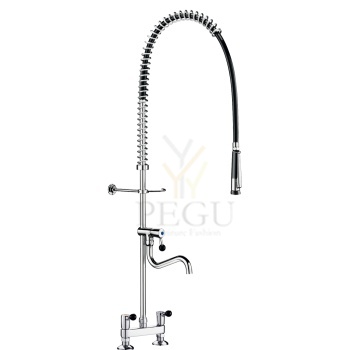

Twin hole pre-rinse set with mixer
Ref. 5633
Complete pre-rinse set with bib tap.
Deck-mounted twin hole mixer with 150mm centres with:
- Valve heads with reinforced mechanisms with ergonomic control levers.
- Offset inlet connections with M1/2" tails.
Bib tap with:
- Swivelling, tubular spout L. 200mm.
- 25 lpm full flow rate achieved within the first 90°.
- Valve head with reinforced mechanism with ergonomic control lever.
Black, scale-resistant M1/2" hand spray with adjustable jet and 9 lpm flow rate at the outlet.
Black, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.

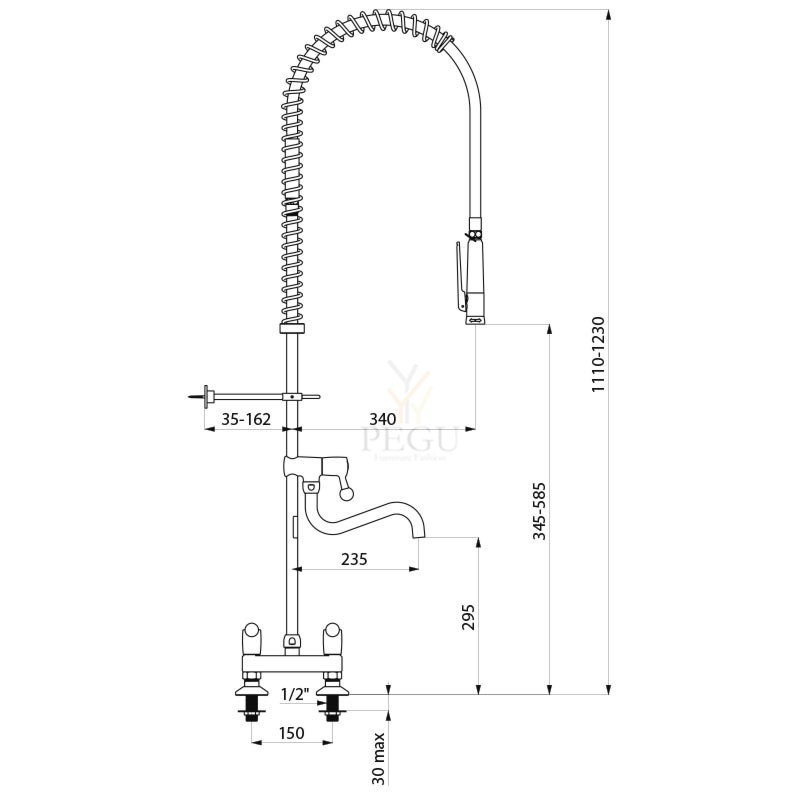

TECHNICAL FEATURES
Twin hole pre-rinse set with mixer
Ref. 5633
| Connector | M1/2" |
|---|---|
| Height | 1110 - 1230mm |
| Drop height | 345 - 585mm |
| Flow rate | 25 lpm |
| Width to the wall | 35 - 162mm |
| Finish | Chrome-plated brass |
Файлы
Kangsegisti keraamilise töörganiga
Kahes suuna pööratava jooksutoruga.
Toru mõõt: 10 mm
Paigaldusava:30mm, max.35mm
Раковина с ножками 700x700, высота 850mm , Н/Р сталь
Stainless steel floor standing bulk sink, 700x700x850 mm
Characteristics
- stainless steel bulk sink with supporting legs with a sheating
- without a tap hole (could be made to order)
- possibility of fine plane regulation by the regulation screws on the supporting legs
- available also in dimensions 600 x 600 x 850 mm
- material CrNi 18/10 (AISI-304)
- brushed finish
- different dimensions could be made to order
| Order number | 93150 |
| Code | SLUN 15 |
Hole cut out size, mixer: 42 mm.
Hole cut out size, spout: 22 mm.
Twin hole pre-rinse set with mixer
Ref. 5633UK
Complete pre-rinse set with bib tap.
Deck-mounted twin hole mixer with 180mm centres with:
- Valve heads with reinforced mechanisms with ergonomic control levers.
- Offset inlet connections with M1/2" tails.
Bib tap with:
- Swivelling, tubular spout L. 200mm.
- 25 lpm full flow rate achieved within the first 90°.
- Valve head with reinforced mechanism with ergonomic control lever.
Black, scale-resistant M1/2" hand spray with adjustable jet and 9 lpm flow rate at the outlet.
Black, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
TECHNICAL FEATURES
Twin hole pre-rinse set with mixer
Ref. 5633UK
| Connector | M1/2" |
|---|---|
| Height | 1110-1230mm |
| Drop height | 345 - 585mm |
| Flow rate | 25 lpm |
| Width to the wall | 35 - 162mm |
| Finish | Chrome-plated brass |
Twin hole pre-rinse set with mixer
Ref. G6533
Complete pre-rinse set without bib tap.
Deck-mounted twin hole mixer with adjustable centres 100 - 240mm with:
- Valve heads with control knobs.
- Offset inlet connections with M1/2" tails.
White, scale-resistant M1/2" hand spray with adjustable spray and 9 lpm flow rate at the outlet.
White, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
TECHNICAL FEATURES
Twin hole pre-rinse set with mixer
Ref. G6533
| Connector | M1/2" |
|---|---|
| Height | 1125 - 1245mm |
| Drop height | 360 - 600mm |
| Flow rate | 9 lpm |
| Width to the wall | 35-162mm |
| Finish | Chrome-plated brass |
