Delabie настенная хозяйственная раковина для гипса Н/Р сталь AISI304

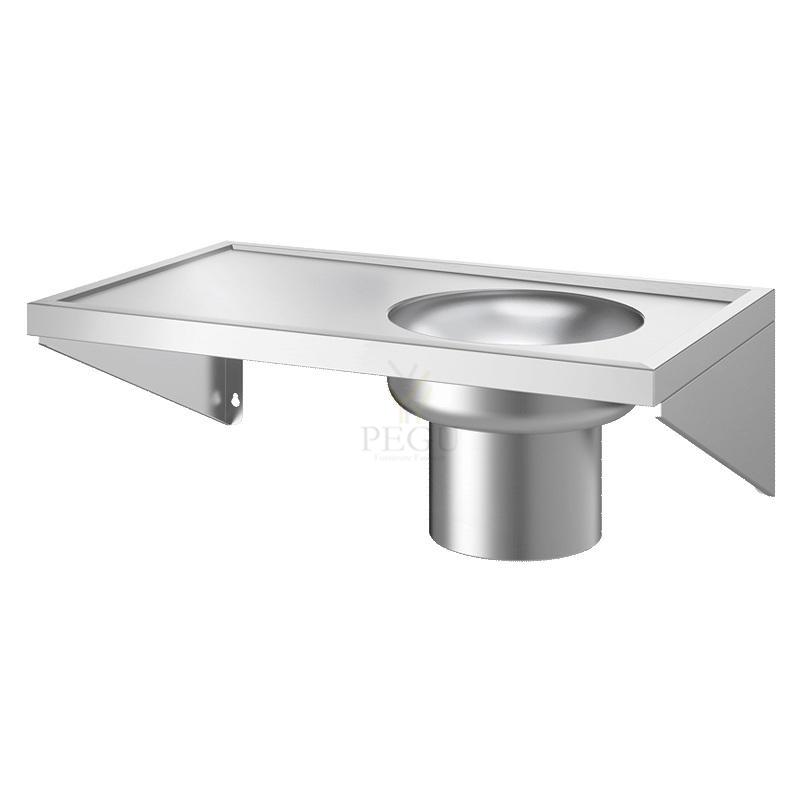

Wall-mounted plaster sink
Ref. 180130
Wall-mounted plaster sink.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.5mm.
Smooth surface and flat edges for easy cleaning.
Suitable for hospitals, healthcare establishments and leisure centres.
Supplied with removable plaster basket with lid to filter plaster debris.
Can be installed in 2 ways: bowl on the right or bowl on the left.
Waste outlet 1 ½".
Supplied with fixing elements.Weight: 17kg.
TECHNICAL FEATURES
Wall-mounted plaster sink
Ref. 180130
Height | 390mm |
---|---|
Length | 600mm |
Width | 1000mm |
Thickness | 1.5mm |
Finish | 304 polished satin stainless steel |
Файлы
Seinasegisti kroom
Настенный смеситель для уборщицы с длинной ручкой
Idral Itaalia
Jooksutoru pööratav, valamule
General
Size (mm): | 525 x 334 x 97 |
Large bowl (mm): | 500 x 310 x 83 |
Designer: | Halvor Thorsen |
Description
Icon Hand Wash Basin IC1-22 in stainless steel 18/10, is designed for under mounting.The hand wash basin is pressed in one piece and has laser-cut integrated outlet holes that are concealed by a removable outlet cover.The basin is supplied with waste under part and overflow equipment.
Polished finish.
Bucket sink in stainless steel for wall mounting. Supplied with stainless steel wall panel, supporting bracket and 3 1/2" x 2" waste with plug and overflow.
Смывная система для писсуара с реле времени 230V/AC антивандальная
SLP 01Z
Time-controlled flushing unit, 230 V AC
Characteristics
- vandal-proof
- time-controlled flushing unit for urinal troughs SLPN 02(Z) - 05(Z)
- adjustable flushing time 0,5 - 15,5 s, standard 5 s
- parameters adjustment by remote control SLD 04
- adjustable flushing interval 10 min - 3 days, standard 1 h
- after switch on the power supply 230 V AC, SLP 01Z starts to flush in adjusted interval
Order number | 01011 |
Code | SLP 01Z |
Supply specification
Technical information
Mounting box dimension: 145 x 155 x 100 mm
Operating voltage: 230 V AC/50 Hz
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 40 l/min (inf. data)
Water inlet: male thread G 1“
Water outlet: male thread G 1“
