Delabie писсуар L 1200mm антивандальный Н/Р сталь AISI304

Артикул: DE-130210
Бренд:
Единица: шт
Время доставки: 4-6 недель
Цена:
1750,70 €
Kuumakse alates: 150,44 €
Кол-во: - +
   - или -

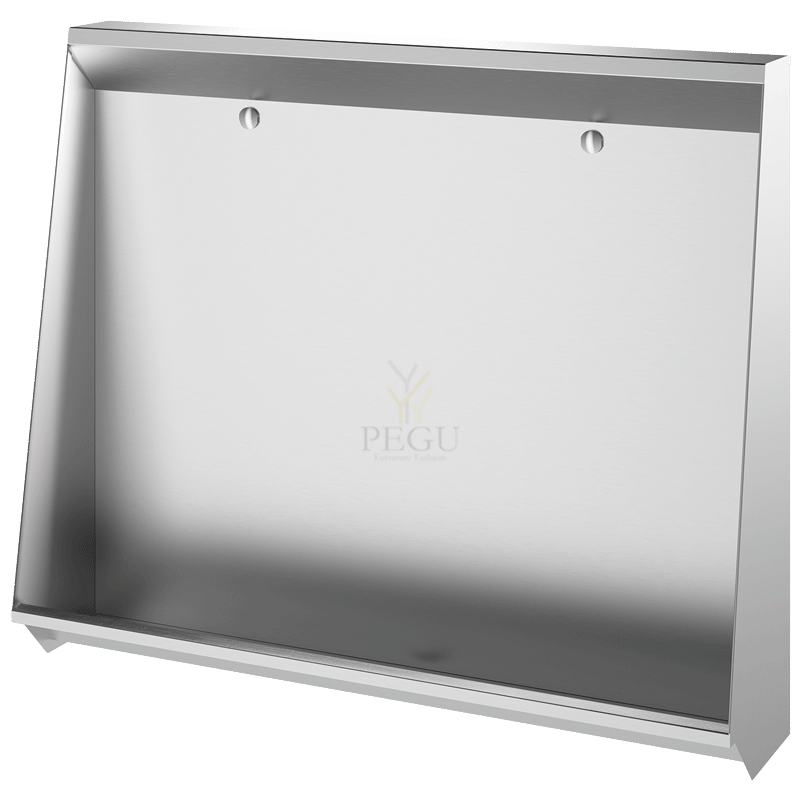

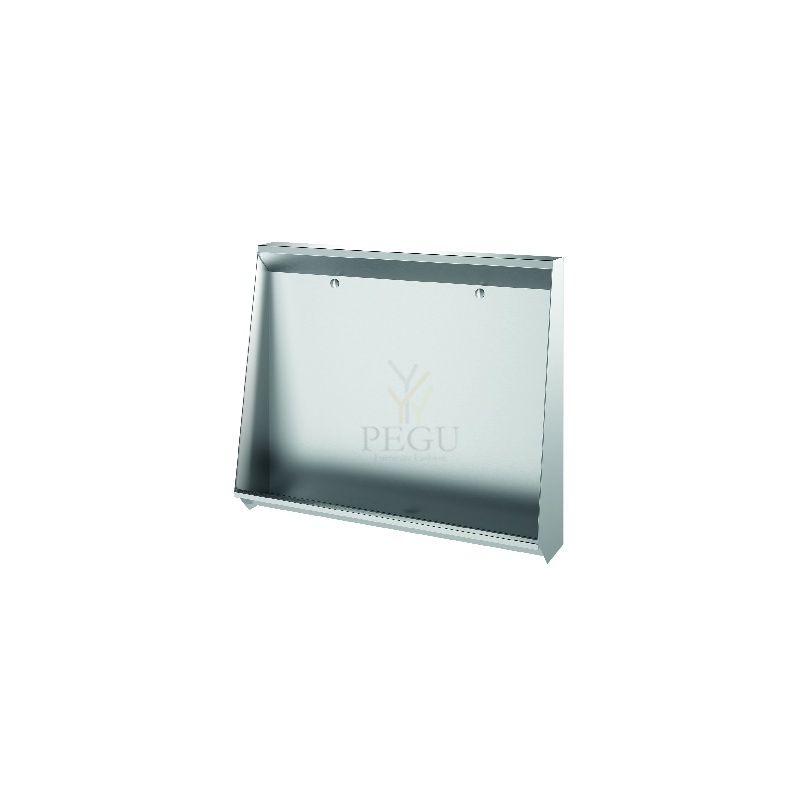

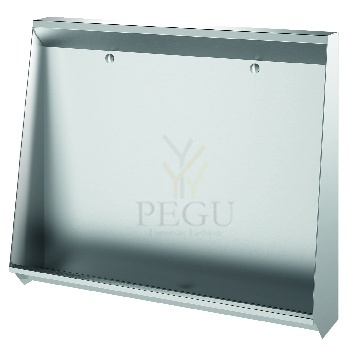

L trough urinal
Ref. 130210

Floor-recessed trough urinal.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Rear water inlet. Central drainage.
Supplied with 2 stainless steel rinsers and 2 flexible hoses.
Water saving: optimal rinsing with 0.1 L/sec. per service i.e. 0.3L per use.
Waste outlet 11/2". Supplied with waste and integrated trap (ref. 785000).
Weight: 25.4kg.

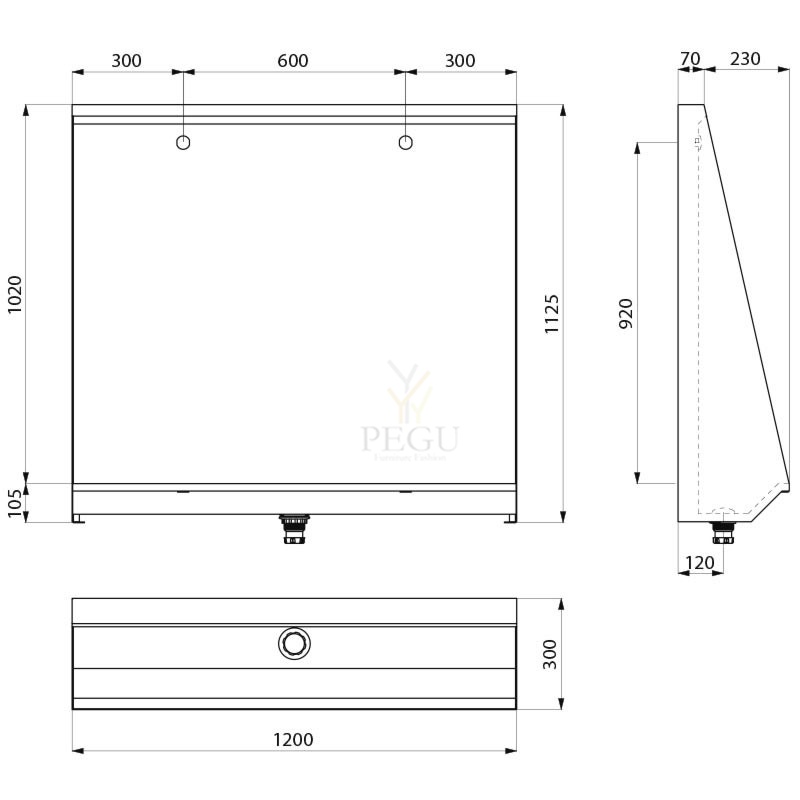

TECHNICAL FEATURES

L trough urinal
Ref. 130210

Height 1020mm
Length 300mm
Width 1200mm
Thickness 1.5mm
Finish 304 polished satin stainless steel
