Delabie писсуар L 1800mm антивандальный Н/Р сталь AISI304

Артикул: DE-130220
Бренд:
Единица: шт
Время доставки: 4-6 недель
Цена:
2354,60 €
Kuumakse alates: 202,48 €
Кол-во: - +
   - или -

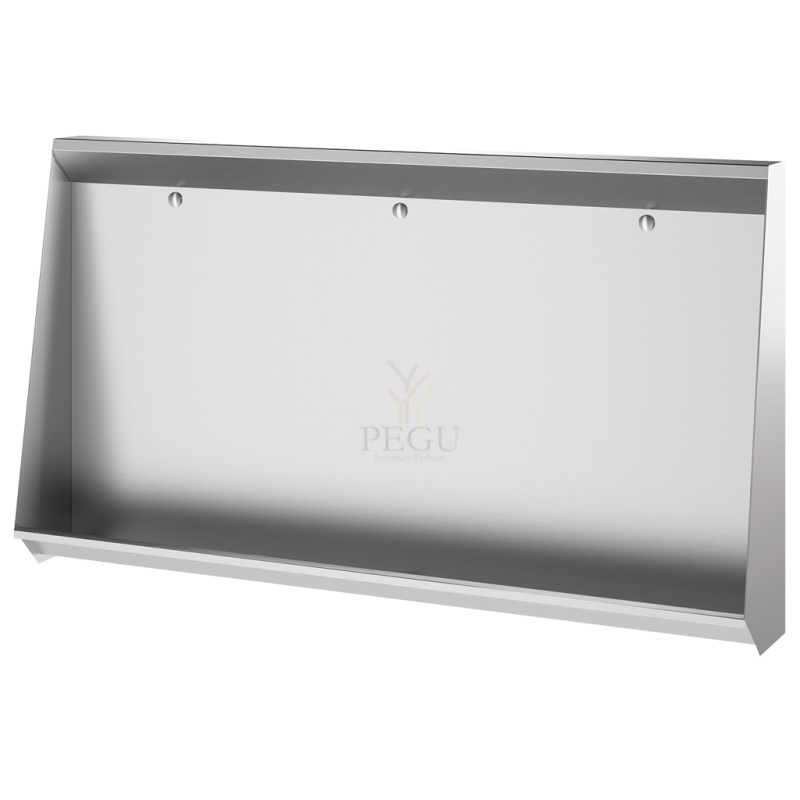

L trough urinal
Ref. 130220

Floor-standing recessed trough urinal.
Bacteriostatic 304 stainless steel.
Stainless steel thickness: 1.2mm.
Rear water inlet.
Supplied with 3 stainless steel rinsers and 3 flexible hoses.
Water saving: optimal rinsing with 0.1 L/sec. per service i.e. 0.3L per use.
Waste outlet 11/2". Supplied with waste and integrated trap (ref. 785000).
Weight: 34kg.

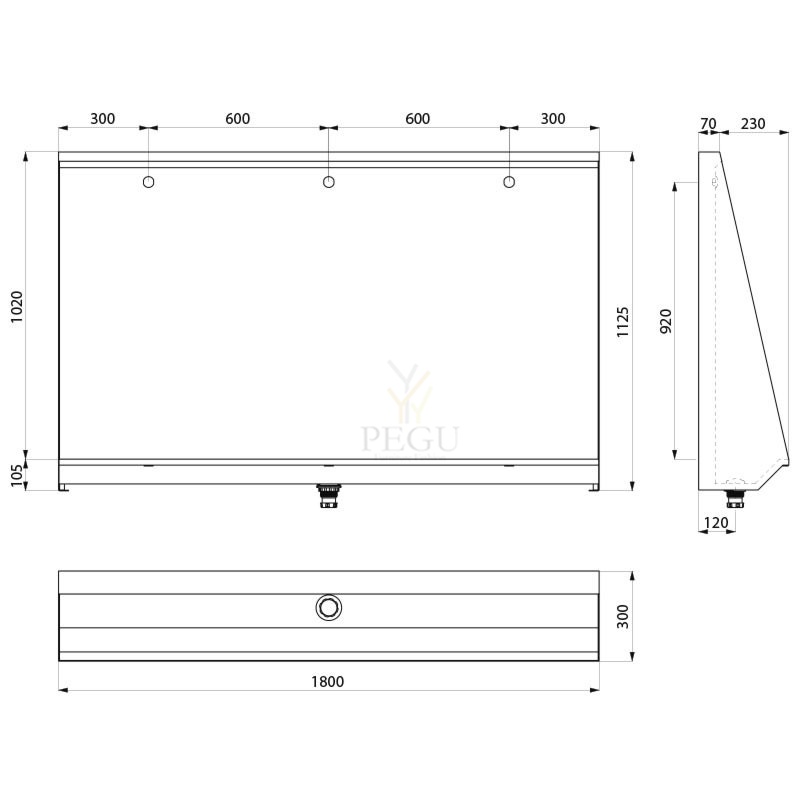

TECHNICAL FEATURES

L trough urinal
Ref. 130220

Supply Rear inlet/recessed
Height 1020mm
Length 300mm
Width 1800mm
Thickness 1.2mm
Finish 304 polished satin stainless steel

Файлы

Схожие продукты
Антивандалльная душевая пьезо кнопка Н/Р сталь, для смешанной воды,  без адаптора



AUS 11

Pressure button-controlled shower for heat regulated water










AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.




Basic technical information
Water input: G 1/2“
Water pressure: 1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow: 10 s – 42,5 min in mode 1
  0 s - 42,5 min in mode 2
Power supply: 12 V, 50 Hz
Power requirement: 6 VA
Source of power supplz: ZAC 1/20 (max. 3× AUS 11)
  ZAC 1/50 (max. 8× AUS 11)
Weight: 2,0 kg


Requirements for setting up the construction
  1. Water installation set up as per picture
  2. Set-up alcove 150 x 75 mm for installation casket
  3. Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC


Complete delivery
  • installation casket
  • input and output bolting
  • electromagnetic valve
  • spherical valve
  • covering metal plate with piezo button
  • electronics


Made to order
  • SP 1 – shower arm with water flow of 9 l/min
  • SP 2 – shower arm with water flow of 7 l/min
  • SP 3 – shower arm with water flow of 7 l/min
  • ZAC - source of power supply 12V, 50Hz


Figure


A - water inlet G 1/2"
C - electricity supply cable 12 V, 50 Hz
G - water outlet into shower armG 1/2"




Download information about the product
AUS 11 data for projectants - ( 84 kB )

Артикул: AZP-AUS 11 ,   Время доставки: 3-4 недели
375,00 €

Сливной механизм для писсуара инфра-красный датчик монтажная коробка, с встроенным элементом питания 230V/AC

SLP 02NZ



Urinal infra-red flushing unit with a mounting box and integrated power supply, 230 V AC



Characteristics

  • system reacts to the user attendance in front of the urinal at a maximum distance of 0,7 m, minimum stay time in active range is 7,5 s
  • water flows after the user leaves active range
  • adjustable flushing time 0,5 - 15,5 s
  • parameters adjustment by remote control SLD 03
  • automatic hygiene flushing after 24 hours non-use
  • possibility to regulate a water flow by the ball valve
Order number 42023
Code SLP 02NZ


Supply specification

SLP 02NZ - Supply No. 42023 - stainless steel cover with electronics, plastic mounting box with brass screw coupling, electromagnetic valve and ball valve, power supply

Technical information

Stainless steel cover dimension: 170 x 170 x 10 mm
Mounting box dimension: 140 x 140 x 75 mm
Operating voltage: 230 V AC/50 Hz
Active range: 0,6 - 0,75 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 3/4“
Water outlet: male thread G 3/4“
Артикул: SA-SLP02NZ ,   Время доставки: 14-21 день
373,50 € (10%)
415,00 €

Керамический писсуар Roca Zoom с радаром Sanela,  с интегрированным источником питания 230V/ AC

SLP 35RZ



Urinal Roca Zoom with a radar flushing unit and integrated power supply, 230 V AC



Characteristics

  • economy flushing by 1 liter of water
  • easy installation by the help of paper drill template
  • whole flushing unit is placed behind the urinal
  • system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
  • adjustable flushing time 0,5 - 15,5 s
  • parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
  • automatic flushing after each 6 hours non-use
  • possibility to regulate a water flow by the ball valve
  • radar flushing unit recharges a water to the siphon after each flushing
Code SLP 35RZ
Order number 01355


Supply specification

SLP 35RZ - Supply No. 01355 - ceramic urinal with the radar flushing unit on the mounting rail, electromagnetic valve, connecting hoses, angle valve with filter and check valve, inlet fitting with a rubber sealing, siphon, paper drill template, power supply

Technical information

Operating voltage: 230 V AC/50 Hz
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 1/2“
Water outlet: inlet fitting with a rubber sealing
Артикул: SA-SLP35RZ ,   Время доставки: 14-21 день
878,40 € (10%)
976,00 €

BOB HD washbasin
Ref. 164130

Wall-mounted hand washbasin.
Basin internal diameter: 310mm.
Clean and simple design.
Bacteriostatic 304 stainless steel.
Stainless steel thickness: 1.2mm.
Rounded edges prevent injury.
Vandal-resistant: shrouded basin, concealed trap, reinforced mounting frame.
Quick and easy to install from the front thanks to a stainless steel mounting frame.
Supplied with 11/2" waste and trap.
Without overflow.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14688.



TECHNICAL FEATURES

BOB HD washbasin
Ref. 164130

Height 285mm
Length 400mm
Width 360mm
Thickness 1.2mm
Finish Polished satin 304 stainless steel
Артикул: DE-164130 ,   Время доставки: 14-21 день
689,30 €

KOMPACT TC washbasin and floor-standing WC combination
Ref. 166700

Combination unit: washbasin and floor-standing WC pan on left sidewith recessed toilet roll holder.
Service duct installation (through-the-wall).
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws:
makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproofpush-button and anti-blocking system, 7 second time flow, M1/2".
WC equipped with time flow flush valve, 7 second time flow, M3/4".
Water inlet: washbasin M1/2", WC M3/4".
Recessed horizontal water outlet: Ø 100mm.
200mm threaded rod can be cut to size (other lengths available on demand).
Weight: 30kg.
[Formerly ref: 0616130007]



TECHNICAL FEATURES

KOMPACT TC washbasin and floor-standing WC combination
Ref. 166700

Height 1000mm
Length 615mm
Width 725mm
Thickness 2mm
Finish 304 polished satin stainless steel
Артикул: DE-166700 ,   Время доставки: 4-6 недель
3611,20 €
