Delabie писсуар L 600mm антивандальный Н/Р сталь AISI304

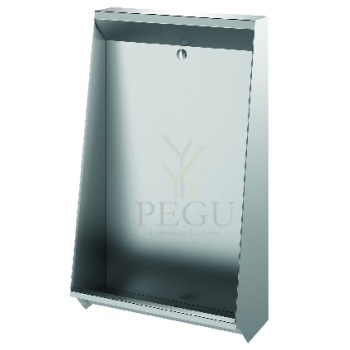

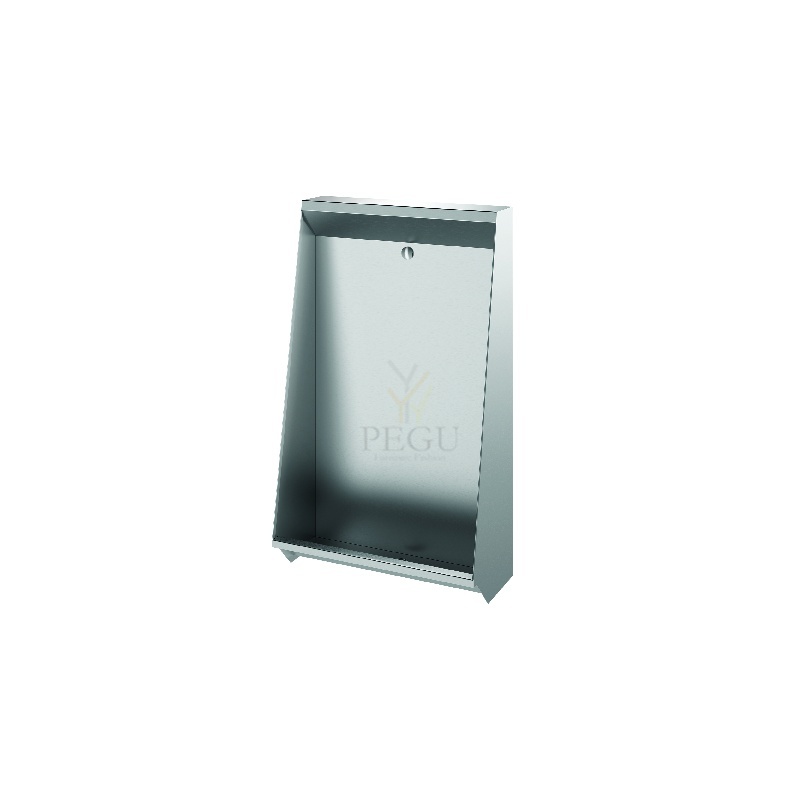

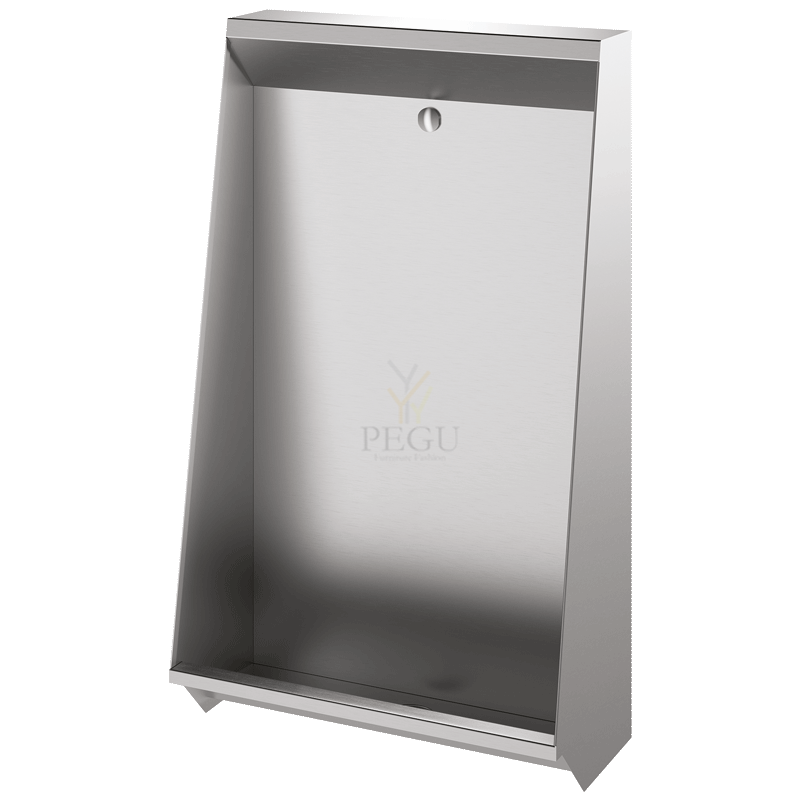

Single L stall urinal
Ref. 130200
Trough urinal for recessing in the floor.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Rear water inlet. Central drainage.
Supplied with 1 stainless steel rinser and 1 flexible hose.
Water saving: optimal rinsing with 0.1 L/sec. per service i.e. 0.3L per use.
Waste outlet 11/2". Supplied with waste and integrated trap (ref. 785000).
Weight: 16.8kg.

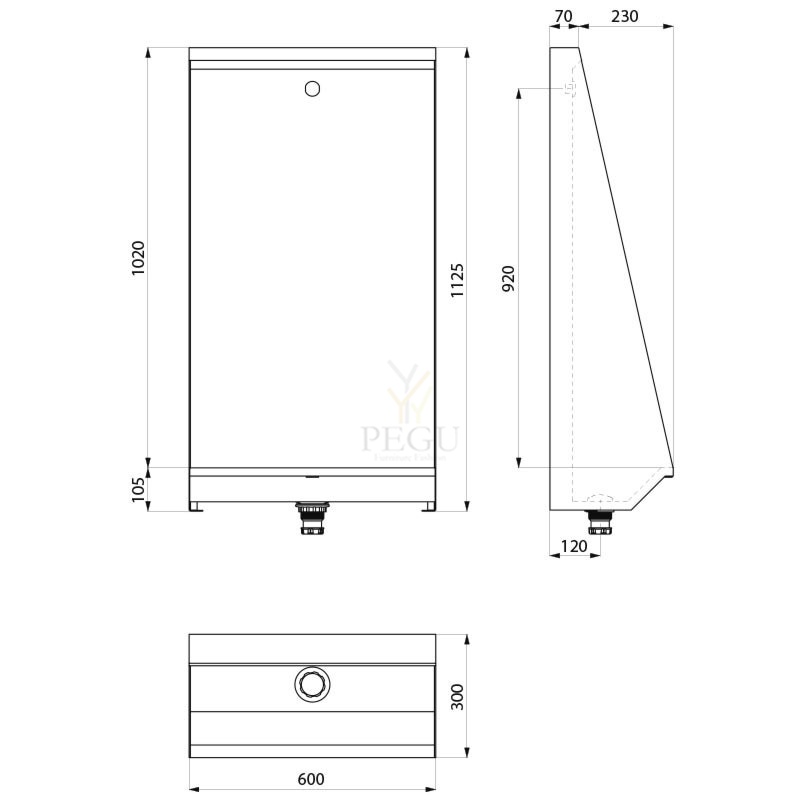

TECHNICAL FEATURES
Single L stall urinal
Ref. 130200
Height | 1020mm |
---|---|
Length | 300mm |
Width | 600mm |
Thickness | 1.2mm |
Finish | 304 polished satin stainless steel |
Файлы
Радарное устройство смыва для писсуара Nova, Renova, Nova Top 9 V
SLP 07B
Radar flushing unit on the mounting rail, 6 V
Characteristics
- radar flushing unit for urinals NOVA PRO FELIX 26 000; RENOVA Nr. 1 235 300; NOVA PRO ALEX 66 000; NOVA PRO M36 000; RENOVA Nr. 1 PLAN 235 100 (Kolo)
- economy flushing by 1 liter of water
- easy installation by the help of paper drill template
- whole flushing unit is placed behind the urinal
- system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
- adjustable flushing time 0,5 - 15,5 s
- parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
- automatic flushing after each 6 hours non-use
- possibility to regulate a water flow by the angle valve
- radar flushing unit recharges a water to the siphon after each flushing
Code | SLP 07B |
Order number | 11076 |
Supply specification
Technical information
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 1/2“
Water outlet: inlet fitting with a rubber sealing
719,00 €
Dushikomplekt anivandaalne 512S, 1-200mm
Wall-hung 700 S WC pan for disabled people
Ref. 110710
Wall-hung WC pan, 360 x 350 x 700mm.
Available with 700mm elongated pan for improved comfort for peoplewith reduced mobility (700 S).
Compatible with all standard frame systems available on the market.Elegant and simple design.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.5mm.
One-piece pressed WC bowl, seam-free for easy maintenance and better hygiene.
WC bowl surface is polished with rounded edges for easy cleaning.
Concealed perimetral flushing rim.
Horizontal water inlet: Ø 55mm.
Horizontal waste outlet: Ø 100mm.
Water saving: works with 4L or more of water.
Shrouded WC pan.
Pre-drilled holes for fixing the toilet seat. Supplied with stainless steel blanking caps when installed without toilet seat lid.
Quick and easy to install from the front thanks to a stainless steel mounting frame.
Supplied with fixing plate and 6 theft prevention TORX security screws.
CE marked. Complies with European standard EN 997 for 4L flush.
Weight: 14.5kg.
KOMPACT washbasin and floor-standing WC combination
Ref. 160800
Combination unit: washbasin and floor-standing central WC panwith recessed toilet roll holder.
Wall-mounted installation with 3 access panels, 2 on the sidesand 1 on the top with theft prevention TORX security screws.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws:
makes cleaning easier and prevents concealment of objects.
WC pan central to the unit.
Washbasin equipped with time flow tap: stainless steel tamperproofpush-button and anti-blocking system, 7 second time flow, M1/2".
WC equipped with time flow flush valve, 7 second time flow, M3/4".
Water inlet: washbasin M1/2", WC M3/4".
Recessed horizontal water outlet: Ø 100mm.
Supplied with washbasin siphon.
Easy to install: only one water outlet for both washbasin and WC,water inlet and outlet already connected.
Weight: 36kg.
[Formerly ref: 0610030008]
TECHNICAL FEATURES
KOMPACT washbasin and floor-standing WC combination
Ref. 160800
Height | 1000mm |
---|---|
Length | 735mm |
Width | 725mm |
Thickness | 2mm |
Finish | 304 polished satin stainless steel |
KOMPACT washbasin and wall-hung WC combination
Ref. 160400
Combination unit: washbasin and suspended WC pan on left side with recessed toilet roll holder.
Wall-mounted installation with 3 access panels, 2 on the sidesand 1 on the top with theft prevention TORX security screws.Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws: makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproofpush-button and anti-blocking system, 7 second time flow, M1/2".
WC equipped with time flow flush valve, 7 second time flow, M3/4".
Water inlet: washbasin M1/2", WC M3/4".
Recessed horizontal water outlet: Ø 100mm.
Supplied with washbasin siphon.
Easy to install: only one water outlet for both washbasin and WC,water inlet and outlet already connected.
Weight: 36kg.
[Formerly ref: 0610030004]
TECHNICAL FEATURES
KOMPACT washbasin and wall-hung WC combination
Ref. 160400
Height | 1000mm |
---|---|
Length | 735mm |
Width | 725mm |
Thickness | 2mm |
Finish | 304 polished satin stainless steel |
