Water inlet | G 1/2" |
Water pressure | 2 – 6 Bar, recommended 3 Bar |
Outlet | d = 40 mm |
Inner dimensions of sink | d = 290 mm |
Weight | 20 kg |
Delabie раковина коллективная TRIPLO RP 1800x500mm нержавеющая сталь сатин

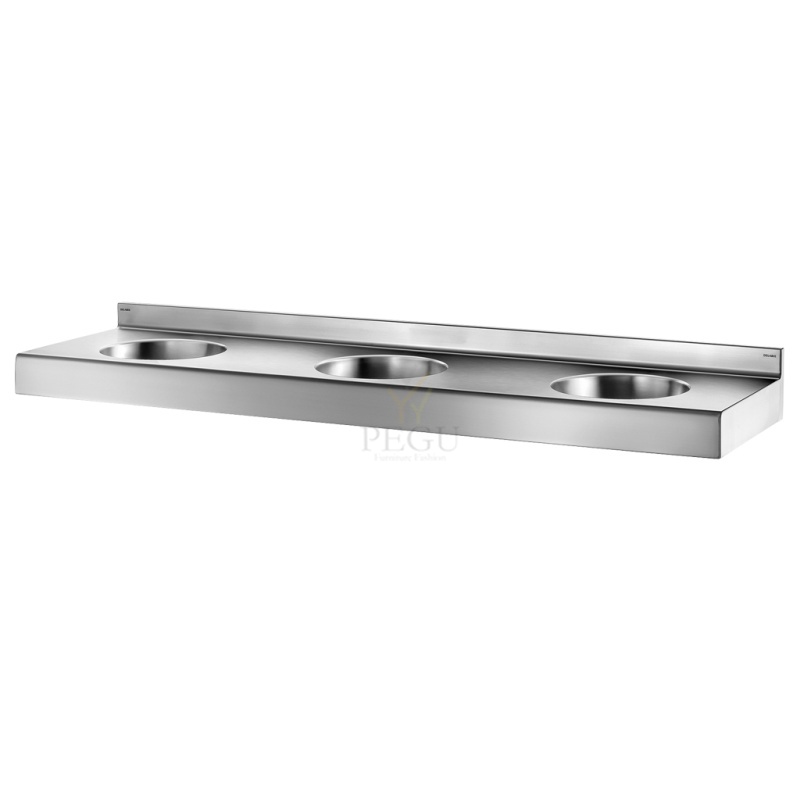

TRIPLO RP wall-mounted multiple washbasin
Ref. 120750
Wall-mounted triple washbasin, 1,800x500mm.
With an upstand to protect the wall from splashing and improve hygiene.
Basin internal diameter: 310mm.
Bacteriostatic 304 stainless steel.
Polished satin stainless steel.
Stainless steel thickness: 1.5mm
Rounded edges prevent injury.
With no tap hole.
Supplied with 1 ¼" waste.
Without overflow.
Supplied with brackets and fixing elements.
CE marked. Complies with European standard EN 14688.
Weight: 22kg.
Файлы
Коллективный писуар 1200 mm нержавеющая сталь
1220,00 €
TECHNICAL FEATURES
LISO urinal divider for wall-mounting
Ref. 100590
Height | 700mm |
---|---|
Length | 25/50mm |
Width | 350mm |
Thickness | 1.5mm |
Finish | 304 polished satin stainless steel |
HEMI inset round washbasin Ø 310mm - Ref. 120471
Round basin for recessed installation from above or below.
Basin internal diameter: 310mm.
Cut-out diameter: 330mm for installation from above, 310mm for installation from below.
Bacteriostatic 304 stainless steel.
304 stainless steel, bright polished
Stainless steel thickness: 1mm. One-piece, seam-free pressed bowl.
Rounded edges prevent injury. Supplied with 1¼" waste. Without overflow.
CE marked.
Complies with European standard EN 14688. Weight: 1.5kg.
Питьевой фонтан free-standing механический Н/Р сталь AISI316
AFO 02 - IIstainless steel free-standing drinking fountain (indoor/outdoor)
AFO 02-II is a stainless steel drinking fountain of modern design with a manual press valve that allows its easy use. The water flows only when the valve is pressed and then there is a certain adjusted time to rinse out the nozzle.
The drinking fountain is to be placed in an open space. It is made up of an anchoring part intended for embedding in concrete and the column itself with a press valve and nozzle. These parts are connected by means of 3 screws and the upper part can be, therefore, easily dismounted in case of necessity (e.g. during winter).
The water inlet is fitted with a flexible hose, the siphon is made from a stretchy, flexible connector. The flexible finish of the water inlet and outlet allows the variable and problem-free connection of the fountain.
AFO 02-II stainless steel fountain is suitable mainly for schools, medical facilities and spa resorts, and is utilizable outdoors.
Drinking fountain AFO 02-II is manufactured from the stainless steel AISI 304. AFO 02.CL-II is made of the stainless steel AISI 316 and is suitable for places with higher concentration of chlorine.
For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).Detail of the bowl
Package contents
- stainless steel column and cone with nozzle
- press valve
- anchoring construction
- flexible hose siphon
- connecting hoses
- anchoring material
- Set-up water inlet - pipe G 1/2“
- Set-up drainage d = 40 mm
- Prepared alcove for embedding (concreting) in the base construction
Питьевой фонтан с системой охлаждения, возможность набора воды в бутылку, пол/стена пьезо кнопка, Н/Р сталь AISI304 230V/50Hz
AFO 01.SCL
drinking fountain with cooling and spout for filling bottles designed to stand and to be attached to wall
AFO 01.SCL is a drinking fountain with cooling and spout for filling bottles designed to stand and to be attached to wall. User can select between uncooled water and water running through a flow cooler. Uncooled water is used for bottle filling as a standard – can be changed. Start/stop control by piezo-buttons – resistant solution. Facility keeper can set a time period after which the water flow automatically stops.
The product contains a flow cooler. It is not a design with cooled tank only where – after the pre-cooled amount of water is pumped out – the user has to wait for the next charge to be cooled.
Water supply is provided by a flexible hose, trap comprises an elastic flexible couple. Flexible design of water supply and outflow allows variable and easy connection of the drinking fountain as well as its dismounting.
Automatic drinking fountain (with a sensor) can be supplied per order.
AFO 01.SCL is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).
Package contents
- Stainless housing with cone
- Electronics and control piezo-buttons
- Water supply and electromagnetic valves
- Flow cooler
- Flexible hose outflow
- Fixing and connecting material
dimensions | 330 x 900 x 365 mm |
water outlet | d = 40 mm |
water inlet | G 1/2" |
water pressure | 0,2 – 0,6 MPa, recommended 0,3 MPa |
power supply | 230 V, 50 Hz |
power input | 830 W |
weight | 25 kg |
- Set up water outlet d = 40 mm
- Set up water inlet G 1/2"
- Electric socket 230 V, or set up electric cable CYKY 3C x 1,5
