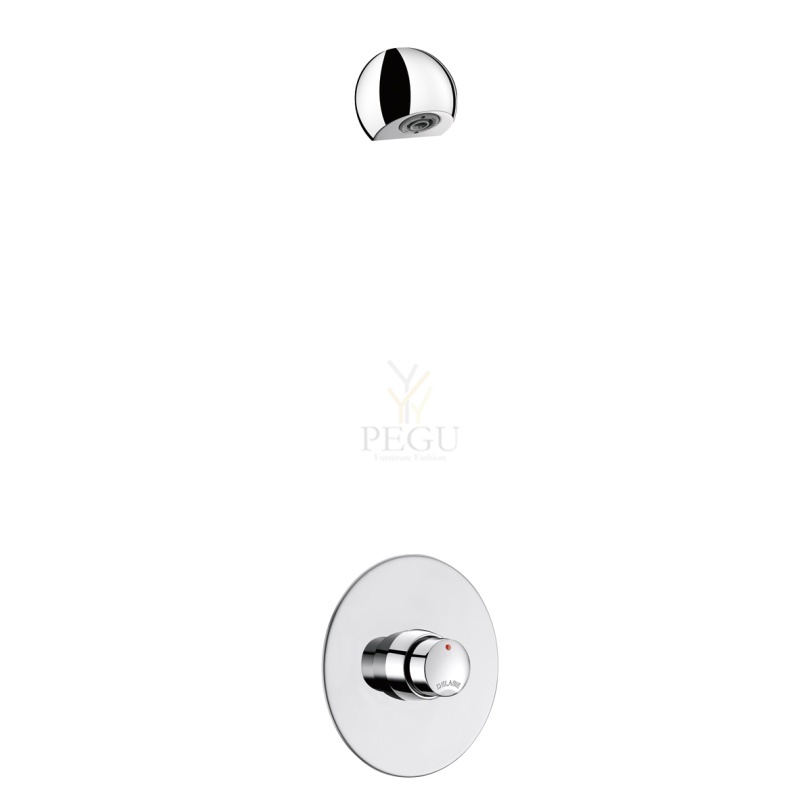

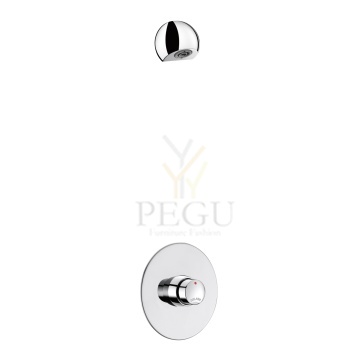

Delabie TEMPSOFT 2 душевой комплект самовыключающийся, на смешанную воду в стену 30 sek хром

Артикул: DE-749429
Бренд:
Единица: комплект
Время доставки: 14-21 день
Цена: 361,00 €
324,90 €
Kuumakse alates: 27,54 €
Кол-во: - +
   - или -

TEMPOSOFT 2 shower kit
Ref. 749429

Recessed time flow shower kit:
TEMPOSOFT 2 M1/2" time flow valve for mixed water supply.
For recessed installation.
Bright polished stainless steel 304 wall plate Ø 130mm.
Recessing depth can be adjusted from 1 to 5mm.
Soft-touch operation.
Time flow ~30 seconds.
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof ROUND shower head with scale-resistant nozzle and automatic flow rate regulation.
Body and shower head in chrome-plated solid brass.
10-year warranty.

This model does not have a waterproof recessing box. The installer must ensure that the recessing area is waterproof and any leaks or condensates can drain away (see installation guide).

Файлы

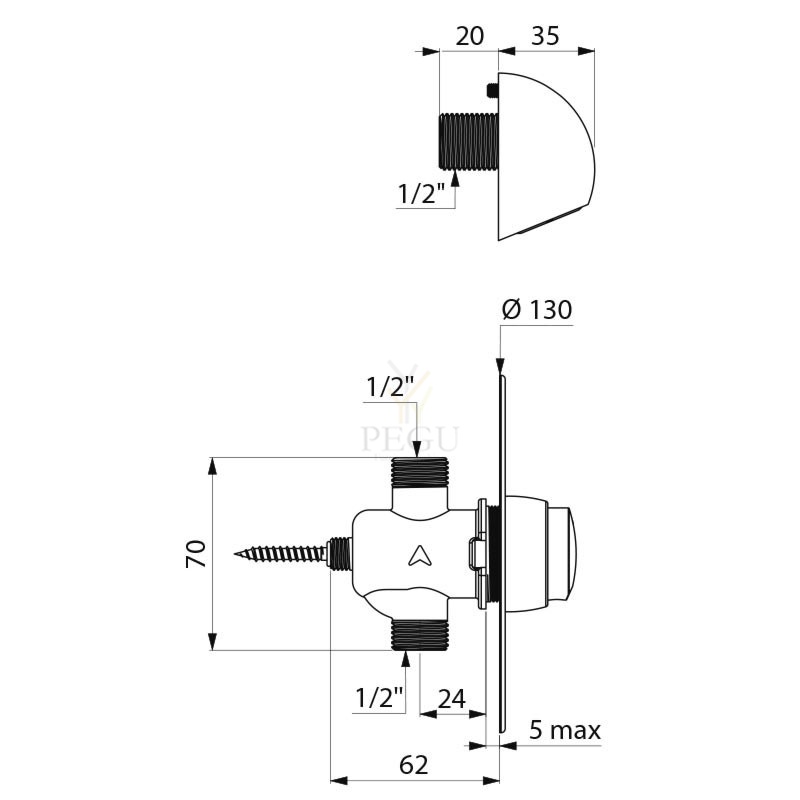

TECHNICAL FEATURES

TEMPOSOFT 2 shower kit
Ref. 749429

Connector 1/2"
Technology Time flow
Flow rate 6 lpm
Схожие продукты
Артикул: D7650700 ,   Время доставки: 7 дней
136,00 €

Кран с сенсором Sanela Н/Р сталь холодная/смешанная вода

Characteristics

  • economical aerator, rate of flow 6 l/min
  • function of automatic water stop after 5 minutes of continuous flow
  • water is flowing as long as hands are in the active range (max. range to 0,3 m)
  • water stops flowing after removal of hands from the active range of sensor after adjustable time delay from 0,25 to 7,75 sec
  • possibility of changing of time delay, active range and switching off by SLD 03
  • SLU 45 is destined for cold or premixed water under the washbasin
  • START/STOP program
Артикул: SA-SLU 45, 24V DC ,   Время доставки: 14 дней
575,00 €



ZAC 1/20, ZAC 1/50, ZAC 1/36L

power supply






ZAC is a safe source of voltage supply intended to power automatic sanitary equipment made by AZP Brno, Ltd.

The source of power supply consists of a safety transformer produced in accordance with ČSN IEC 742+A1 standards. All kinds of sensors can be connected to these sources in random combinations, as can other devices with a supply voltage of 12 V, 50 Hz (total power requirement either 20 VA, 50 VA or 36 VA).

ZAC 1/20 and ZAC 1/50 are independent sources, 1/36L ZAC is the source for the location on the DIN-rail (4 modules).




Version types
ZAC 1/20 - source of power supply with output 20 VA
ZAC 1/50 - source of power supply with output 50 VA
ZAC 1/36L - source of power supply with output 36 VA

Source of power supply can be placed at a maximum distance of 30 m from the connected appliance.

Basic technical information
Input voltage: 230 V, 50 Hz
Output voltage: 12 V, 50 Hz
Power requirement: 20 VA (ZAC 1/20)
  50 VA (ZAC 1/50)
  36 VA (ZAC 1/36L)
Electricity protection: IP 55 (ZAC 1/20, ZAC 1/50)
  IP 20 (ZAC 1/36L)
Weight: 0,8 kg (ZAC 1/20, ZAC 1/36L)
  1,2 kg (ZAC 1/50)


Requirements for setting up the construction
ZAC 1/20, ZAC 1/50
  1. Set-up supply of electricity 230 V,50 Hz – cable CYKY 3Cx1,5
  2. Set-up niche for flush mounting – size as per installed source
  3. Distribution to each device is carried out by cable CYKY 2Ax1,5
ZAC 1/36 L
  1. It is installed on the DIN-rail - width of 4 modules


Figure
ZAC 1/20

ZAC 1/50





Product title
ZAC 1/20 -
power supply for up to 3 devices - 230V, 50Hz
ZAC 1/50 -
power supply for up to 8 devices - 230V, 50Hz
ZAC 1/36L -
power supply for up to 6 devices - 230V, 50Hz
Артикул: AZP-ZAC 1-20 ,   Время доставки: 3-4 недели
105,00 €
