Душевая панель Delabie SECURITHERM с термомтатом электронная 6V ALU
Бренд:
Единица: шт
Время доставки: 14-21 день
Продавец: PEGU OÜ

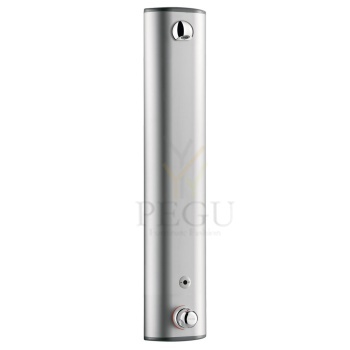

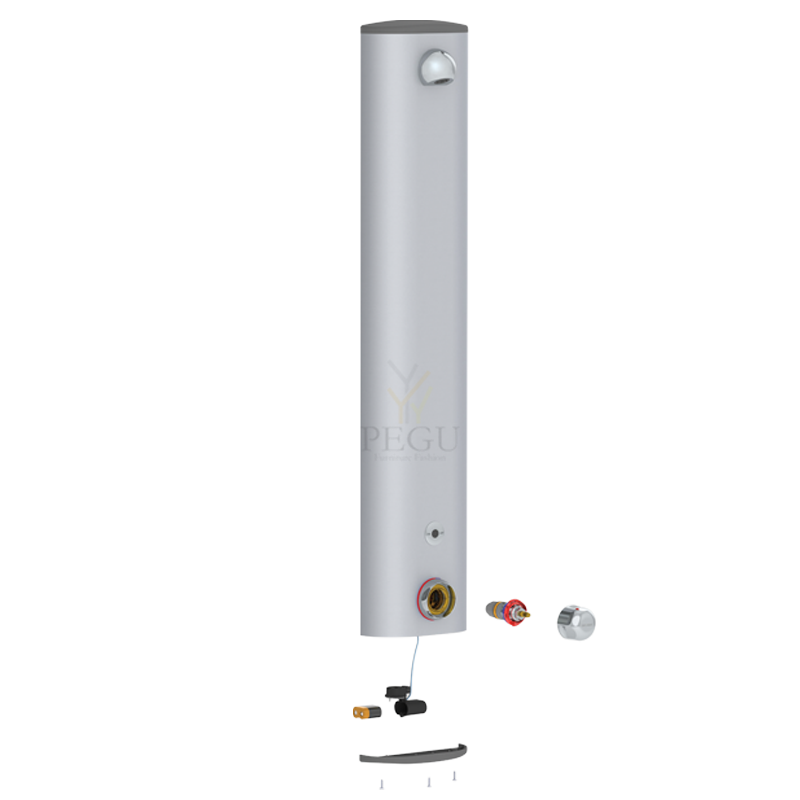

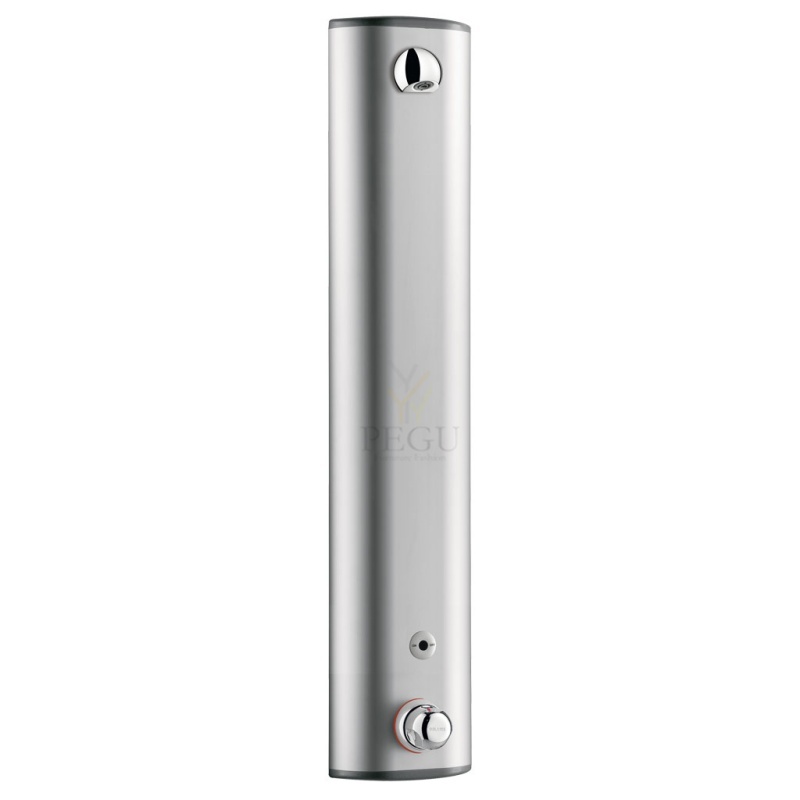

SECURITHERM shower panel
Ref. 792410
Electronic thermostatic shower panel:
Anodised aluminium shower panel for wall-mounted, exposed installation.
With concealed inlet via flexibles, M1/2".
SECURITHERM thermostatic mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding safety: automatic shut-off if cold or hot water supply fails.
Thermal shocks are possible.
Battery-operated with 223 6V Lithium battery.
Infrared presence detection. Shower starts when hand is 4cmfrom the sensor.
Shuts off on demand or automatically after ~60 seconds.
Duty flush (~60 seconds every 24 hours after the last use).
Flow rate set at 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
Concealed fixings.
Filters and non-return valves.
Файлы
Technical features
SECURITHERM shower panel
Ref. 792410
| Supply | 6V battery |
|---|---|
| Connector | M1/2" |
| Technology | Electronic |
| Height | 1050mm |
| Depth | 65mm |
| Width | 210mm |
| Flow rate | 6 lpm |
| Temperature limiter | Thermostatic |
| Finish | Aluminium |
Segisti, isesulguv
kroom
30sek töötsükkel
Душевой комплект смеситель Presto ALPA 35812 с ограничителем времени работы, 30 sek 3bar, хром
Идеальное решение для спортклуба, производства, тренажёрного зала
Vajutava nupuga dušši segisti
ALPA
Presto
kroom
30 sek. töötsükkel 3 bar
613,05 €
1/2" наружняя резьба
> Working pressure :
1 to 5 bar
> Flow :
3 l/min with integrated flow limiter High quality anti-limescale aerator Anti-water-hammering design
> Hydraulic supply :
G 3/8" (12x17)
> Power supply :
230 VAC / 7 VDC transformer in IP65 waterproof case
> Material and colour finish :
Injected molded metal body and cover Chrome finishing
> Thermal resistance :
Resistant to a temperature of 75°C for 30 minute thermal shocks
> Security :
Temperature limiting system to avoid any risk of scalding Anti-overflow security time is set to 30 seconds
Anti-blocking system preventing the water to flow continuously
> Delivered with :
1 Brass clamping nut
1 Gasket and 1 Washer
2 PEX Hoses with revolving nuts and NF check valves 2 MM G 3/8" (12x17) Stop valves
2 Filter gaskets
1 Self-adhesive sticker
Instruction manual
> Standards & approvals :
Molded chrome-plated body in accordance with EN 12540
Brass in accordance with NF EN1982, EN12164, EN12165
200-hour neutral salt spray resistant (NSS) in accordance with NF ISO 9227
PREMIX SECURITY
Ref. 731055
Group thermostatic mixing valve for hot water circulating loops adjustable from 44°C to 58°C:
Anti-scalding safety.
Regulates temperature variations.
Non-return valves and filters accessible from the exterior without having to remove the mechanism.
Thermal cartridge with no specific lever needed (push-button on the control knob).
Interchangeable cartridge with thermostatic cell.
High-resistance chrome-plated brass body.
Maximum hot water temperature: 85°C.
Differential hot water / mixed water: 15°C mini.
Pressure differences at the entrance: 1 bar maximum (0.5 bar recommended).
Minimum pressure / maximum: 1 to 10 bar (1 to 5 bar recommended).
Left hand side hot water inlet (red ring) and right hand side cold water inlet (blue ring).
Mixed water outlet at the top (purple ring) for bottom outlet: unscrew / place lid at the top and outlet connector at the bottom.
15% energy savings: optimised heat loss (comparison between a circulating loop at 55°C and a non-circulating system at 70°C).
Safety and prolongation of system life span (Hot water at >65°C leads to premature aging within the system).
Maximum temperature limiter, can be adjusted by the installer.
Reduced risk of scalding by limiting temperature at the point-of-use.
190 lpm - M1 1/2".
