Душевая панель Delabie SECURITHERM с термостатом и ручным душем Н/Р сталь
SECURITHERM shower panel
Ref. 792344
Dual control thermostatic shower panel with handset:

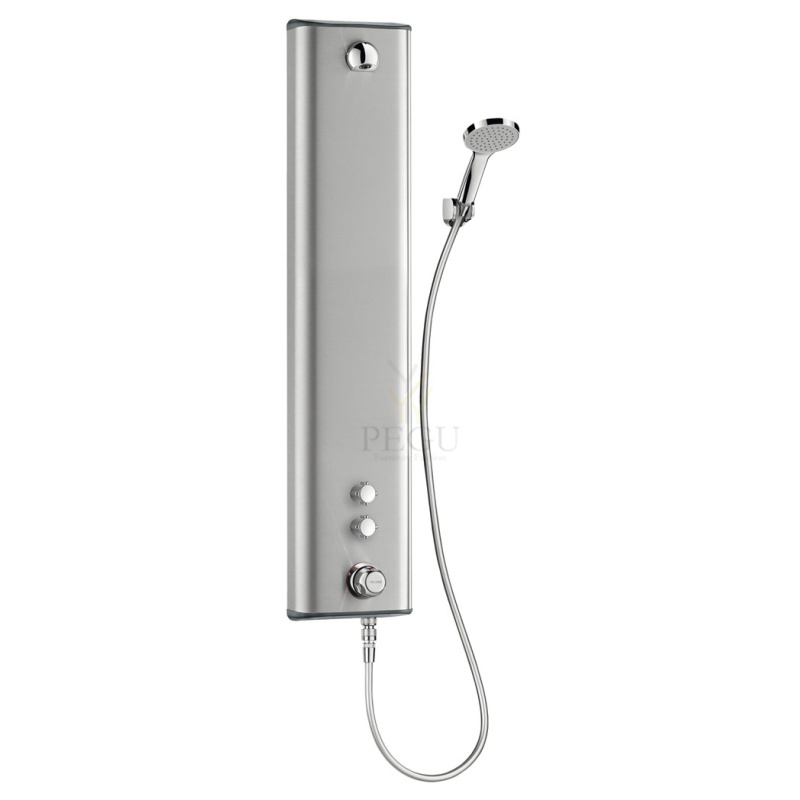

Large model stainless steel shower panel for wall-mounted, exposed installation.
Top inlet via in-line stopcocks M1/2".
SECURITHERM thermostatic mixer.
Adjustable temperature control from cold water up to 38°C with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding safety: automatic shut-off if cold or hold water supply fails.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation set at 6 lpm at 3 bar.
Handset with removable flexible via rapid push-fit STOP connector, wall support supplied.
Non-time flow valves control the ROUND shower head and the handset.
Thermal shocks are possible.
Concealed fixings.
Filters and non-return valves.
Файлы
TECHNICAL FEATURES
SECURITHERM shower panel
Ref. 792344
Connector | M1/2" |
---|---|
Technology | Non-time flow |

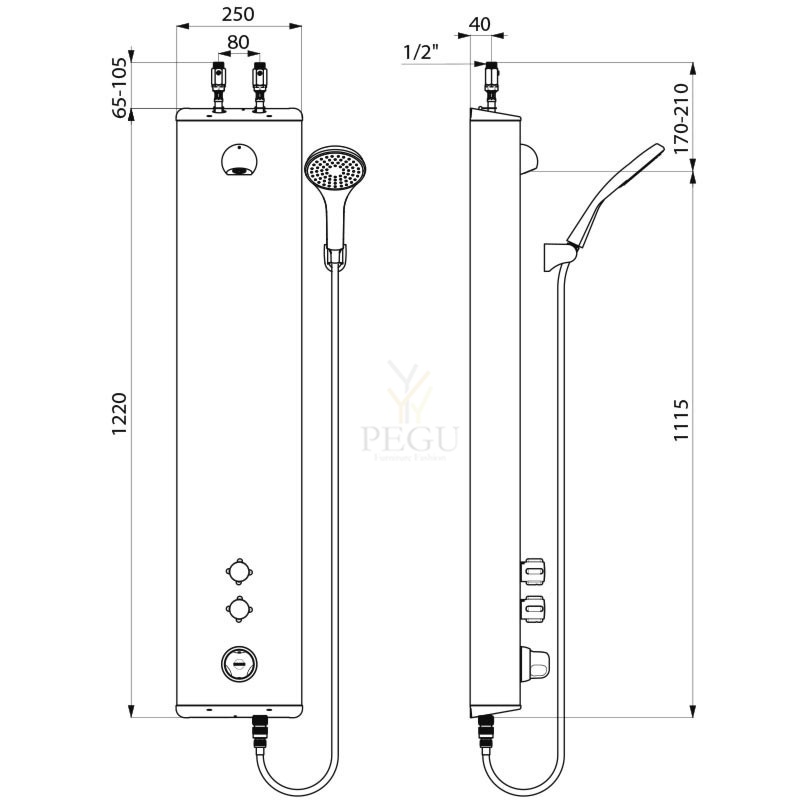

Height | 1220mm |
Depth | 100mm |
Width | 250mm |
Flow rate | 6 lpm |
Temperature limiter | Thermostatic |
Finish | Stainless steel |
Vajutava nupuga segisti
Presto
Antiblokeerimise süsteemiga
kroom
15 sek. töötsükkel 3 bar
3-6 l/min
Töötsükkel 15 sek
Sisu 30 sek
> Working pressure :
1 to 5 bar
> Flow :
6 l/min with integrated flow limiter Anti-water-hammering design
Hand-held shower on rail with chrome plated slide
> Flow time :
30 seconds (± 5 sec.)
> Hydraulic supply :
G 1/2" (15x21), top or rear water inlet. For rear water inlet, we recommend to add the adaptation kit under the reference 91026. On ALPA S® NF IB mixer tap with NF check valves
> Material :
Anodised aluminium extruded section (2.5mm thickness) Aluminium removable valve plate, peinted RAL 7005 colour High resistance RAL 7005 coloured ABS covers
> Functioning:
Wide opening panel without the need to dismantle from the wall and shower taps on a removable valve plate
> Thermal resistance :
Resistant to a temperature of 75°C for 30-minute-thermal-shocks
> Security :
Adjustable tamper-proof temperature limiter to prevent scalding
Patented anti-blocking "S" system preventing the water flows continuously
> Delivered with :
1/2" hoses with revolving nuts
MM 1/2" (15x21) straight stop valve and 250 micron filters Fastening screw and instruction manual
> Standards & approvals :
Brass body in accordance with EN 1982, EN 12164, EN 12165 Chrome-plated surface treatment in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
1/2" наружняя резьба
