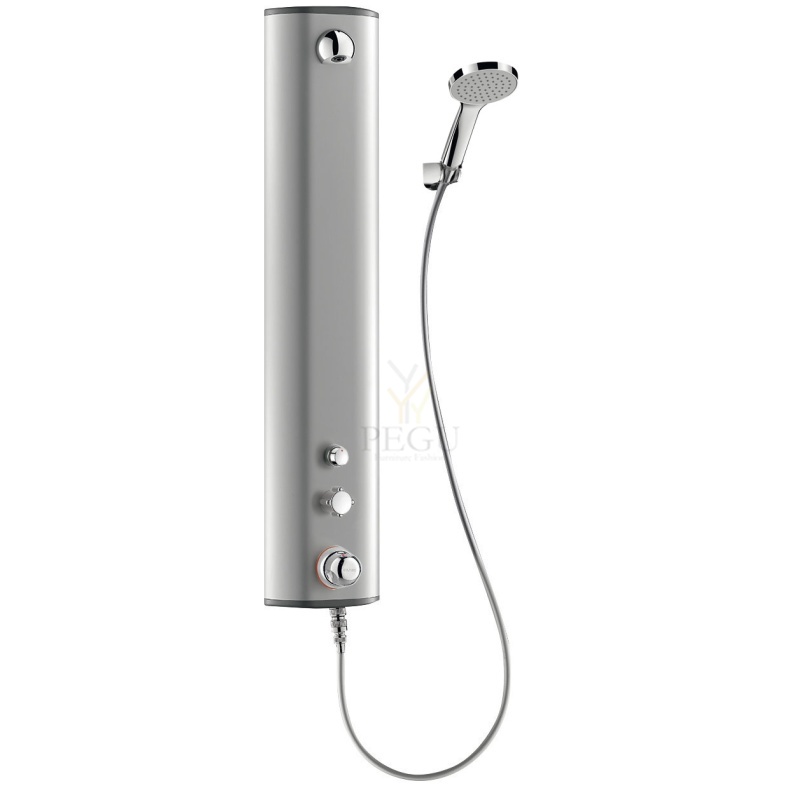

Душевая панель Delabie SECURITHERM с термостатом самовыключающаяся 30 sek ALU

Артикул: DE-792340
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена:
1305,40 €
Kuumakse alates: 111,54 €
Кол-во: - +

SECURITHERM shower panel
Ref. 792340

Dual control thermostatic shower panel:
Anodised aluminium shower panel for wall-mounted, exposed installation.
Top inlets via in-line stopcocks M1/2".
SECURITHERM thermostatic mixer.
Adjustable temperature control from cold water up to 38°C; with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding safety: automatic shut-off if cold or hot water supply fails.
Time flow valve ~30 seconds with soft-touch operation to control the ROUND shower head.
Non-time flow 1/4-turn valve controls the hand set.
Thermal shocks are possible.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation at 6 lpm at 3 bar.
Handset with removable flexible via rapid push-fit STOP connector and wall support supplied.
Concealed fixings.
Filters and non-return valves.

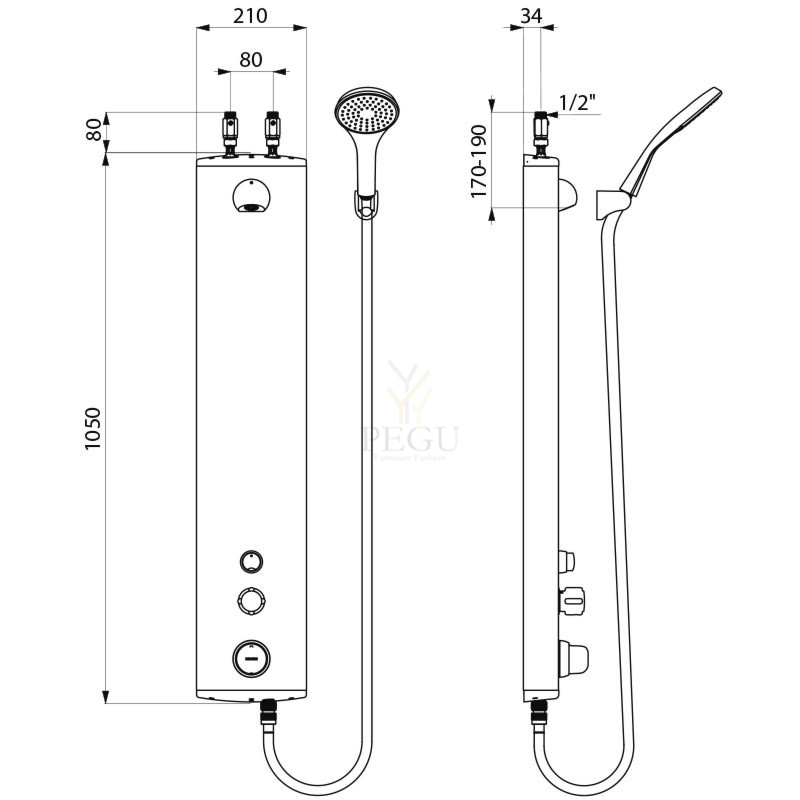

TECHNICAL FEATURES

SECURITHERM shower panel
Ref. 792340

Connector M1/2"
Technology Dual control
Height 1050mm
Depth 65mm
Width 210mm
Flow rate 6 lpm
Temperature limiter thermostatic
Finish Aluminium
