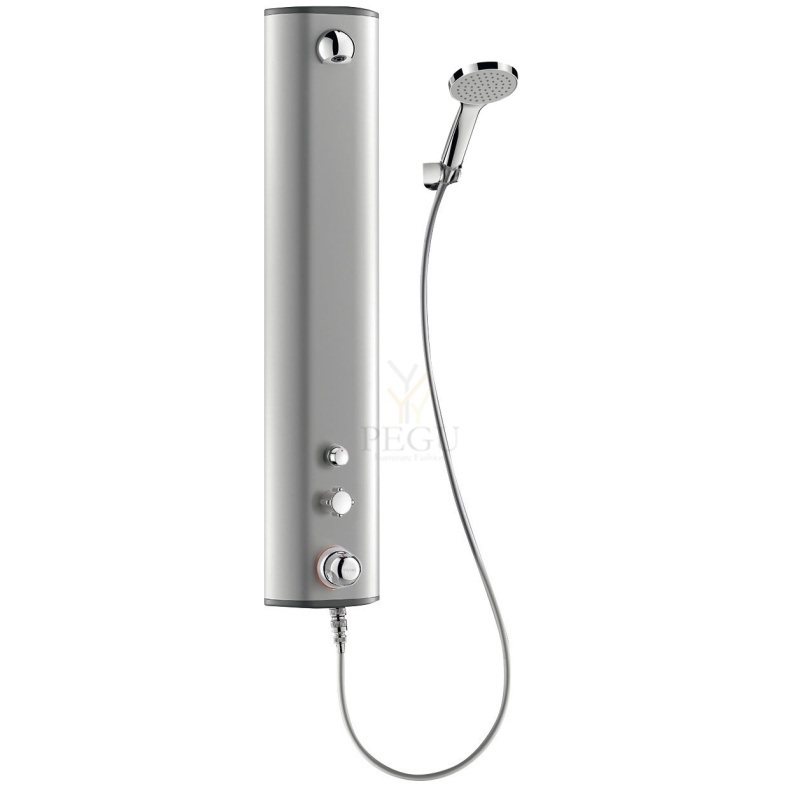

Душевая панель Delabie SECURITHERM с термостатом самовыключающаяся 30 sek ALU

Артикул: DE-792350
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена:
1305,40 €
Kuumakse alates: 111,36 €
Кол-во: - +
   - или -

SECURITHERM shower panel
Ref. 792350

Dual control thermostatic shower panel:
Anodised aluminium shower panel for wall-mounted, exposed installation.
Concealed inlets via flexibles, M½".
SECURITHERM thermostatic mixer.
Adjustable temperature control from cold water up to 38°C; with 1st limiter set at 38°C and 2nd limiter set at 41°C.
Anti-scalding safety: automatic shut-off if cold or hot water supply fails.
Time flow valve ~30 seconds with soft-touch operation controls the ROUND shower head.
Non-time flow 1/4-turn valve controls the hand set.
Thermal shocks are possible.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation at 6 lpm at 3 bar.
Handset with removable flexible via rapid push-fit STOP connector and wall support supplied.
Concealed fixings.
Filters and non-return valves.

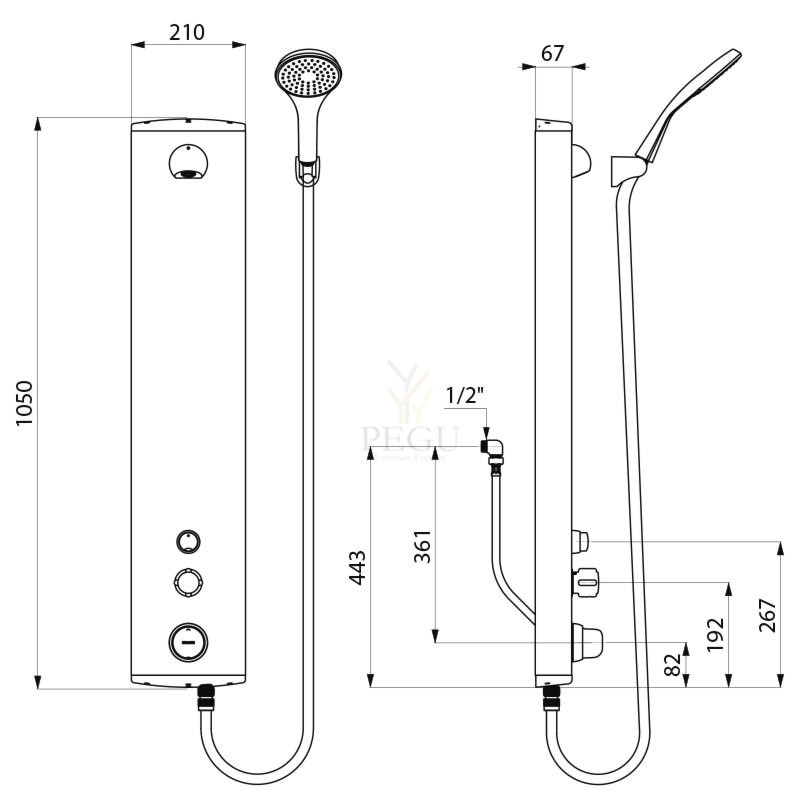

TECHNICAL FEATURES

SECURITHERM shower panel
Ref. 792350

Connector M1/2"
Technology Dual control
Height 1050mm
Depth 65mm
Width 210mm
Flow rate 6 lpm
Temperature limiter thermostatic
Finish Aluminium
Схожие продукты

WC isesulguv mehhanism

Артикул: P14906 ,   Время доставки: 7-21 день
329,40 €
Антивандалльная душевая пьезо кнопка Н/Р сталь, для смешанной воды,  без адаптора



AUS 11

Pressure button-controlled shower for heat regulated water










AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.




Basic technical information
Water input: G 1/2“
Water pressure: 1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow: 10 s – 42,5 min in mode 1
  0 s - 42,5 min in mode 2
Power supply: 12 V, 50 Hz
Power requirement: 6 VA
Source of power supplz: ZAC 1/20 (max. 3× AUS 11)
  ZAC 1/50 (max. 8× AUS 11)
Weight: 2,0 kg


Requirements for setting up the construction
  1. Water installation set up as per picture
  2. Set-up alcove 150 x 75 mm for installation casket
  3. Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC


Complete delivery
  • installation casket
  • input and output bolting
  • electromagnetic valve
  • spherical valve
  • covering metal plate with piezo button
  • electronics


Made to order
  • SP 1 – shower arm with water flow of 9 l/min
  • SP 2 – shower arm with water flow of 7 l/min
  • SP 3 – shower arm with water flow of 7 l/min
  • ZAC - source of power supply 12V, 50Hz


Figure


A - water inlet G 1/2"
C - electricity supply cable 12 V, 50 Hz
G - water outlet into shower armG 1/2"




Download information about the product
AUS 11 data for projectants - ( 84 kB )

Артикул: AZP-AUS 11 ,   Время доставки: 3-4 недели
375,00 €

Сердечник

ALPA

Presto

чёрная кнопка

30 sek. töötsükkel 3 bar



Артикул: P01015 ,   Время доставки: 7 дней
244,00 €

> Working pressure :

1 to 5 bar

> Flow :

10 l/min with integrated flow limiter
Fixed shower head with anti-limescale spikes

> Hydraulic supply :

G 1/2" (15x21), top or rear water inlet. For rear water inlet, we recommend to add the adaptation kit under the reference 91026 Single control mixer tap with ceramic disks

> Material :

Anodised aluminium extruded section (2.5mm thickness) Aluminium removable valve plate, peinted RAL 7005 colour High resistance RAL 7005 coloured ABS covers

> Functioning:

Wide opening panel without the need to dismantle from the wall and shower taps on a removable valve plate

> Thermal resistance :

Resistant to a temperature of 75°C for 30-minute-thermal-shocks

> Security :

Adjustable tamper-proof temperature limiter to prevent scalding

> Delivered with :

1/2" hoses with revolving nuts
MM 1/2" (15x21) straight stop valves and 250 micron filters Fastening screws and instruction manual

> Standards & approvals :

Brass body in accordance with EN 1982, EN 12164, EN 12165 Chrome-plated surface treatment in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227

Артикул: P88816 ,   Время доставки: 14-21 день
1073,60 €

Dushiotsik antivandaalne ülemine paigaldus, 1/2" F

D40x40mm

Артикул: P29296 ,   Время доставки: 14-21 дней
88,45 €
