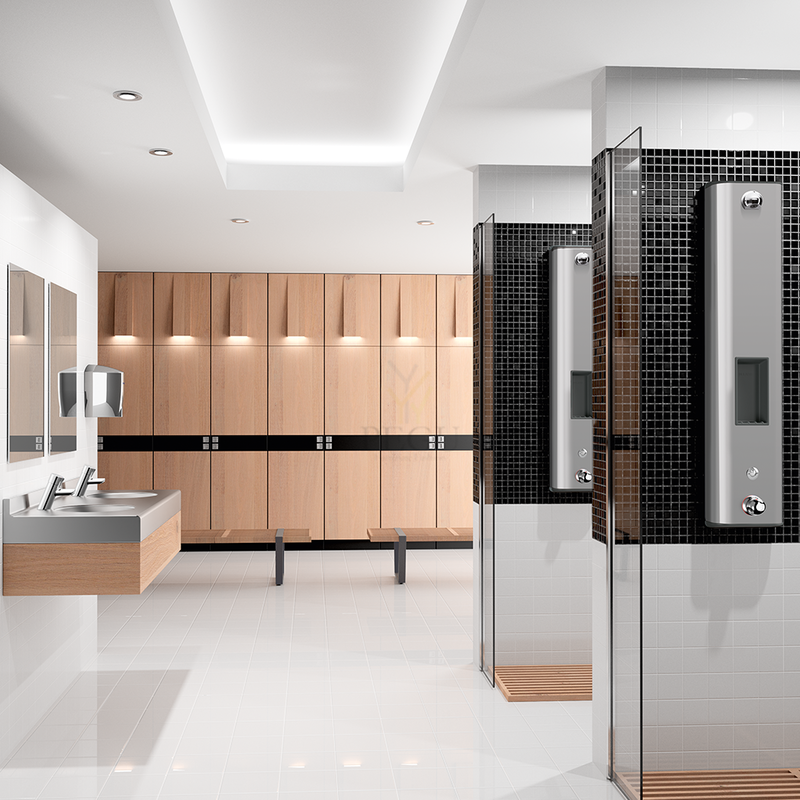

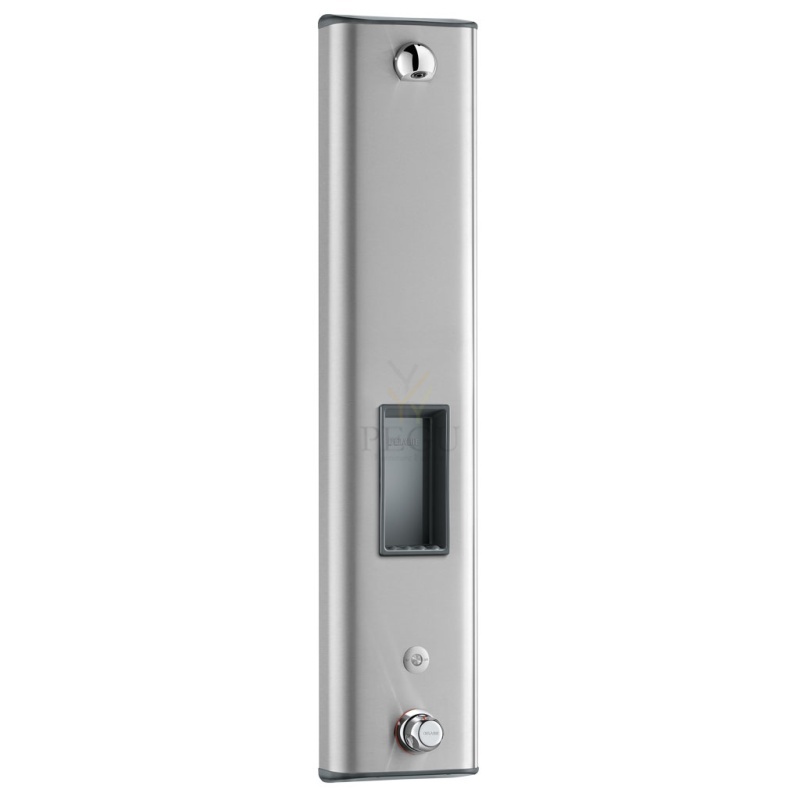

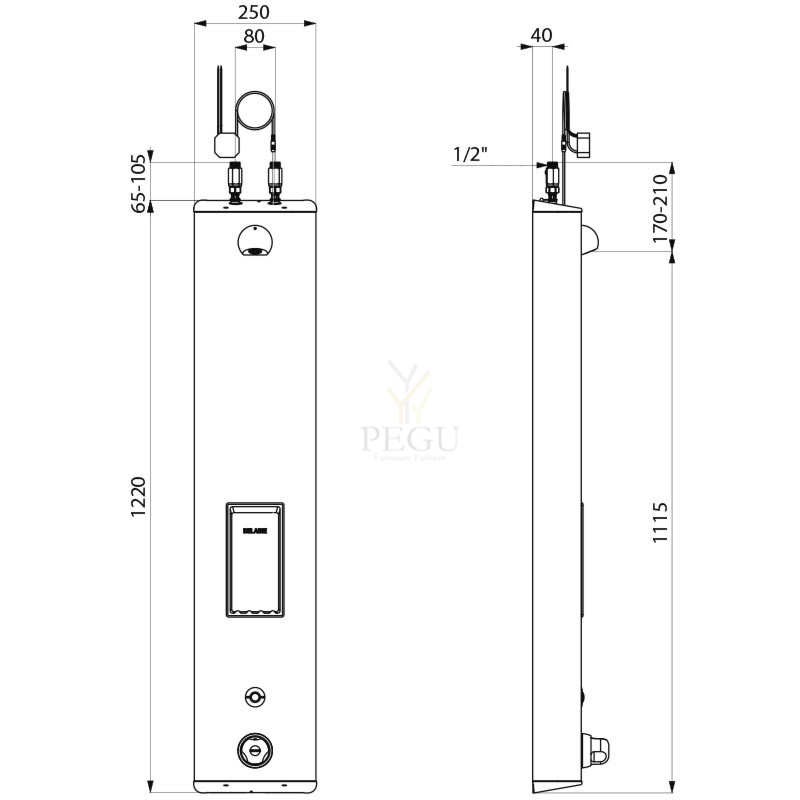

Душевая панель Delabie SECURITHERM с термостатом сенсорная 6V RST

AZP Brno адаптор 1-3 потребителя

	ZAC 1/20, ZAC 1/50, ZAC 1/36L power supply

ZAC is a safe source of voltage supply intended to power automatic sanitary equipment made by AZP Brno, Ltd.

The source of power supply consists of a safety transformer produced in accordance with ČSN IEC 742+A1 standards. All kinds of sensors can be connected to these sources in random combinations, as can other devices with a supply voltage of 12 V, 50 Hz (total power requirement either 20 VA, 50 VA or 36 VA).

ZAC 1/20 and ZAC 1/50 are independent sources, 1/36L ZAC is the source for the location on the DIN-rail (4 modules).

Version types
ZAC 1/20 - source of power supply with output 20 VA
ZAC 1/50 - source of power supply with output 50 VA
ZAC 1/36L - source of power supply with output 36 VA

Source of power supply can be placed at a maximum distance of 30 m from the connected appliance.

Basic technical information
Input voltage:	230 V, 50 Hz
Output voltage:	12 V, 50 Hz
Power requirement:	20 VA (ZAC 1/20)
	50 VA (ZAC 1/50)
	36 VA (ZAC 1/36L)
Electricity protection:	IP 55 (ZAC 1/20, ZAC 1/50)
	IP 20 (ZAC 1/36L)
Weight:	0,8 kg (ZAC 1/20, ZAC 1/36L)
	1,2 kg (ZAC 1/50)

Requirements for setting up the construction

ZAC 1/20, ZAC 1/50

Set-up supply of electricity 230 V,50 Hz – cable CYKY 3Cx1,5
Set-up niche for flush mounting – size as per installed source
Distribution to each device is carried out by cable CYKY 2Ax1,5

ZAC 1/36 L

It is installed on the DIN-rail - width of 4 modules

Figure
ZAC 1/20

ZAC 1/50

Product title

ZAC 1/20 -

power supply for up to 3 devices - 230V, 50Hz

ZAC 1/50 -

power supply for up to 8 devices - 230V, 50Hz

ZAC 1/36L -

power supply for up to 6 devices - 230V, 50Hz

Артикул: AZP-ZAC 1-20 , Время доставки: 3-4 недели

105,00 €

Presto рем.комплект пружинки 20шт , комплект

20 tk komplektis

Артикул: P90207 , Время доставки: 7 дней

22,37 €

Душевая панель PRESTOTEM2 ALPA S® самозапорный- 30 sek рабочий цикл, система антиблок, с лифтом

> Working pressure :

1 to 5 bar

> Flow :

6 l/min with integrated flow limiter Anti-water-hammering design
Hand-held shower on rail with chrome plated slide

> Flow time :

30 seconds (± 5 sec.)

> Hydraulic supply :

G 1/2" (15x21), top or rear water inlet. For rear water inlet, we recommend to add the adaptation kit under the reference 91026. On ALPA S® NF IB mixer tap with NF check valves

> Material :

Anodised aluminium extruded section (2.5mm thickness) Aluminium removable valve plate, peinted RAL 7005 colour High resistance RAL 7005 coloured ABS covers

> Functioning:

Wide opening panel without the need to dismantle from the wall and shower taps on a removable valve plate

> Thermal resistance :

Resistant to a temperature of 75°C for 30-minute-thermal-shocks

> Security :

Adjustable tamper-proof temperature limiter to prevent scalding
Patented anti-blocking "S" system preventing the water flows continuously

> Delivered with :

1/2" hoses with revolving nuts
MM 1/2" (15x21) straight stop valve and 250 micron filters Fastening screw and instruction manual

> Standards & approvals :

Brass body in accordance with EN 1982, EN 12164, EN 12165 Chrome-plated surface treatment in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227

Артикул: P88814 , Время доставки: 14-21 день

1232,20 €

Presto NOVA IR смеситель бесконтактный на батарейке чёрный матовый

> Working pressure : 1 to 5 bar

> Flow : 3 l/min with integrated flow limiter High quality anti-limescale aerator Anti-water-hammering design

> Hydraulic supply : G 3/8" (12x17)

> Power supply : Integrated 6V CRP2 lithium battery

> Material and colour finish : Injected molded metal body and cover Matte Black finishing

> Thermal resistance : Resistant to a temperature of 75°C for 30 minute thermal shocks

> Security : Temperature limiting system to avoid any risk of scalding Anti-overflow security time is set to 30 seconds Anti-blocking system preventing the water to flow continuously

> Delivered with : 1 Brass clamping nut 1 Gasket and 1 Washer 2 PEX Hoses with revolving nuts and NF check valves 2 MM G 3/8" (12x17) Stop valves 2 Filter gaskets 1 Self-adhesive sticker Instruction manual

> Standards & approvals : Molded chrome-plated body in accordance with EN 12540 Brass in accordance with NF EN1982, EN12164, EN12165 200-hour neutral salt spray resistant (NSS) in accordance with NF ISO 9227

Артикул: P55387 , Время доставки: 14-21 день

732,00 €
