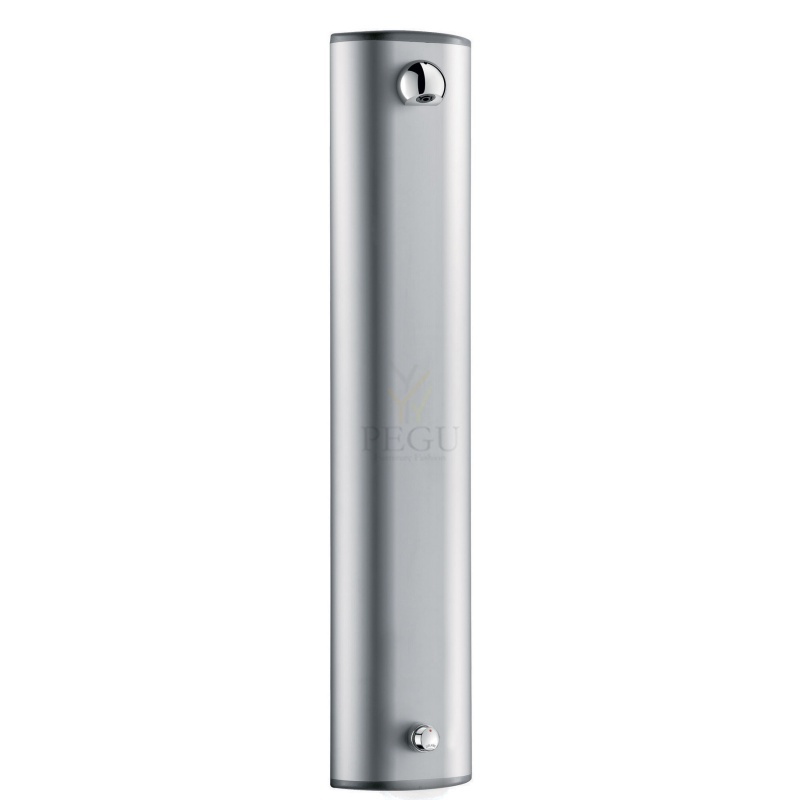

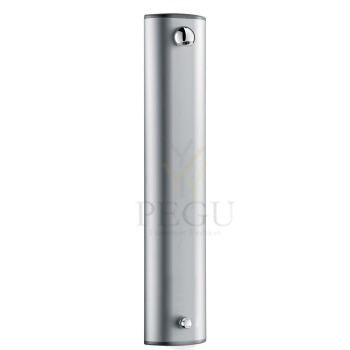

Душевая панель Delabie TEMPOSOFT на смешанную воду самовыключающаяся 30 sek ALU

Артикул: DE-749300
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена:
597,80 €
Kuumakse alates: 51,05 €
Кол-во: - +

TEMPOSOFT shower panel
Ref. 749300

Time flow shower panel:
Anodised aluminium shower panel for wall-mounted, exposed installation.
Top inlet supply for mixed water via in-line stopcock M1/2".
TEMPOSOFT time flow control for mixed water.
Soft-touch operation.
Time flow ~30 seconds.
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
Concealed fixings.
Filter.

Файлы

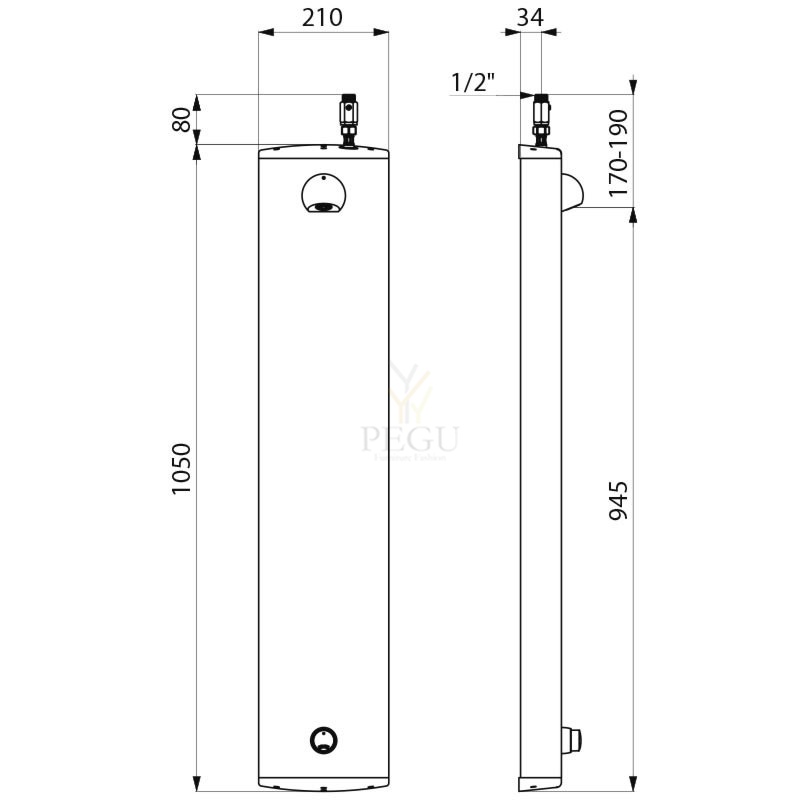

TECHNICAL FEATURES

TEMPOSOFT shower panel
Ref. 749300

Connector M1/2"
Technology Time flow
Height 1050mm
Depth 65mm
Width 210mm
Flow rate 6 lpm
Finish Aluminium
