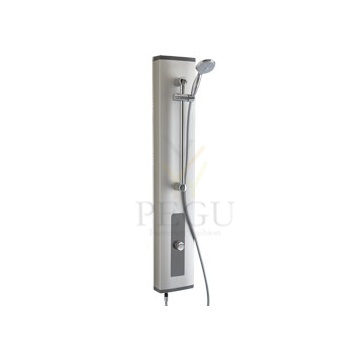

Душевая панель PRESTOTEM2 ALPA S® самозапорный- 30 sek рабочий цикл, система антиблок, с лифтом

Артикул: P88814
Бренд:

Единица: шт
Время доставки: 14-21 день

Обязательно указать в спецификации проекта : PEGU OÜ

kuumaks al. 106,02 €

Цена:

1232,20 €

Kuumakse alates: 106,02 €

> Working pressure :

1 to 5 bar

> Flow :

6 l/min with integrated flow limiter Anti-water-hammering design
Hand-held shower on rail with chrome plated slide

> Flow time :

30 seconds (± 5 sec.)

> Hydraulic supply :

G 1/2" (15x21), top or rear water inlet. For rear water inlet, we recommend to add the adaptation kit under the reference 91026. On ALPA S® NF IB mixer tap with NF check valves

> Material :

Anodised aluminium extruded section (2.5mm thickness) Aluminium removable valve plate, peinted RAL 7005 colour High resistance RAL 7005 coloured ABS covers

> Functioning:

Wide opening panel without the need to dismantle from the wall and shower taps on a removable valve plate

> Thermal resistance :

Resistant to a temperature of 75°C for 30-minute-thermal-shocks

> Security :

Adjustable tamper-proof temperature limiter to prevent scalding
Patented anti-blocking "S" system preventing the water flows continuously

> Delivered with :

1/2" hoses with revolving nuts
MM 1/2" (15x21) straight stop valve and 250 micron filters Fastening screw and instruction manual

> Standards & approvals :

Brass body in accordance with EN 1982, EN 12164, EN 12165 Chrome-plated surface treatment in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227

Видео

Файлы

Схожие продукты

Laost otsas

Душевая панель PRESTO DL400SE на смешанную/холодную воду, 30 sek 3bar, алюминий стоп кран 1/2"

Vajutava nupuga duššipaneel

DL400SE

eelsegatud vesi

Presto

30 sek. töötsükkel 3 bar

Range: Timed flow single tap for shower

Ref: 27400 - PRESTO DL 400 SE® single tap with straight stop valve

> Working pressure :

1 to 5 bar

> Flow :

8 l/min at 3 bar with integrated flow limiter (+ additional 6l/mn limiter) Anti-water-hammering design
Fixed shower head with anti-limescale spikes

> Flow time :

30 seconds (± 5 sec.)

> Hydraulic supply :

G 1/2" (15x21) Top water inlet with straight stop valve For cold or premixed water

> Material and colour finish :

Injected molded metal body and cover
Extruded cover in aluminium (magnesium-silicon alloy 6060)

> Thermal resistance :

Resistant to a temperature of 75°C for 30-minute-thermal-shocks

> Security :

Patented anti-blocking "S" system to avoid the water to flow continuously

> Delivered with :

VBA screws and nylon plugs Additional 6l/mn limiter
M G 1/2" - FG3/4" stop valve and filter Instruction manual

> Standards & approvals :

Acoustic class I
Molded chrome-plated body in accordance with EN 12540
200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227

Артикул: P27400 , Время доставки: 7-14 дней

337,53 €

Сравнить

Laos

Смеситель самозапорный для душа 30sek 1/2"

Segisti, isesulguv

kroom

30sek töötsükkel

Артикул: IDR-08132-15 , Время доставки: 7 дней

286,70 €

Сравнить

Laost otsas

Антивандалльная душевая пьезо кнопка Н/Р сталь, для смешанной воды, без адаптора

	AUS 11 Pressure button-controlled shower for heat regulated water

AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.

Basic technical information
Water input:	G 1/2“
Water pressure:	1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow:	10 s – 42,5 min in mode 1
	0 s - 42,5 min in mode 2
Power supply:	12 V, 50 Hz
Power requirement:	6 VA
Source of power supplz:	ZAC 1/20 (max. 3× AUS 11)
	ZAC 1/50 (max. 8× AUS 11)
Weight:	2,0 kg

Requirements for setting up the construction
Water installation set up as per picture Set-up alcove 150 x 75 mm for installation casket Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC

Complete delivery
installation casket input and output bolting electromagnetic valve spherical valve covering metal plate with piezo button electronics

Made to order
SP 1 – shower arm with water flow of 9 l/min SP 2 – shower arm with water flow of 7 l/min SP 3 – shower arm with water flow of 7 l/min ZAC - source of power supply 12V, 50Hz

Figure

A -	water inlet G 1/2"
C -	electricity supply cable 12 V, 50 Hz
G -	water outlet into shower armG 1/2"

Download information about the product
AUS 11 data for projectants - ( 84 kB )

Артикул: AZP-AUS 11 , Время доставки: 3-4 недели

375,00 €

Сравнить

Laost otsas

PRESTO NEO DUO S® самозапрный кран 7/11 sek, система антиблокировки 2L/min

> Working pressure: 1 to 5 bar

> Flow: 1.9 l/min with flow regulator Anti water-hammer system

> Flow time: 7 seconds - lever upwards 11 seconds - lever downwards

> Hydraulic supply: G 1/2'' x 40

> Thermal resistance: This tap can withstand a thermal shock of 75°C for 30 minutes as part of a thermal shock programme

> Safety: With S® antiblocking system to prevent blocking in continuous flow

> Convenience: Soft-touch Two-coloured ergonomic lever, in glass fiber reinforced polymer

> Delivered with: 1 Filter gasket 1 base gasket 1 fixture nut + 1 stainless steel washer 1 Nut for 12x14 tube 1 rubber flat gasket 1 coloured sticker

> Standards / Approvals: Chrome-plated brass body compliant with standards NF EN1982 / NF EN12164 / NF EN12165 Nickel-Chrome surface treatment compliant with NF EN12540 Neutral Salt Spray (NSS) resistant: 200 h according to NF ISO 9227

Артикул: P64704 , Время доставки: 7-14 дней

195,20 €

Сравнить
