Душевой комплект экономичный самовыключающийся встраеваемый Delabie TEMPOMIX 794BOX1+794219 30sek
Если вы нашли подходящий товар, просто нажмите В КОРЗИНУ, перейдите в КОРЗИНУ, выберите ЗАКАЗ, заполните данные и выберите способ доставки. Всё так просто – покупка всего в нескольких кликах!
Бренд:
Единица: комплект
Время доставки: 14 -21 день
Продавец: PEGU OÜ
For orders from European Union countries, please send a price inquiry to our email. To calculate the shipping cost, please provide the address. For companies, include your VAT number.
DESCRIPTION
TEMPOMIX 3 shower kit
Ref. 794BOX1-794219
Recessed time flow shower mixer with soft-touch operation:
Tamperproof chrome-plated metal wall plate 160 x 160mm.

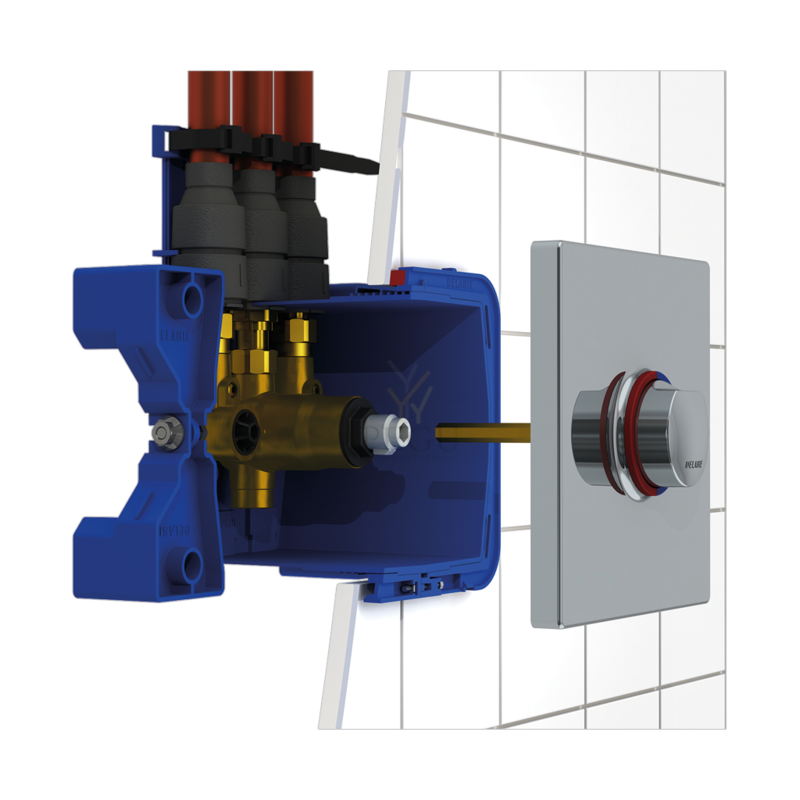

Waterproof recessing housing:
- Collar with waterproof seal.
- Hydraulic connection from the exterior and maintenance from the front.
- Top inlet.

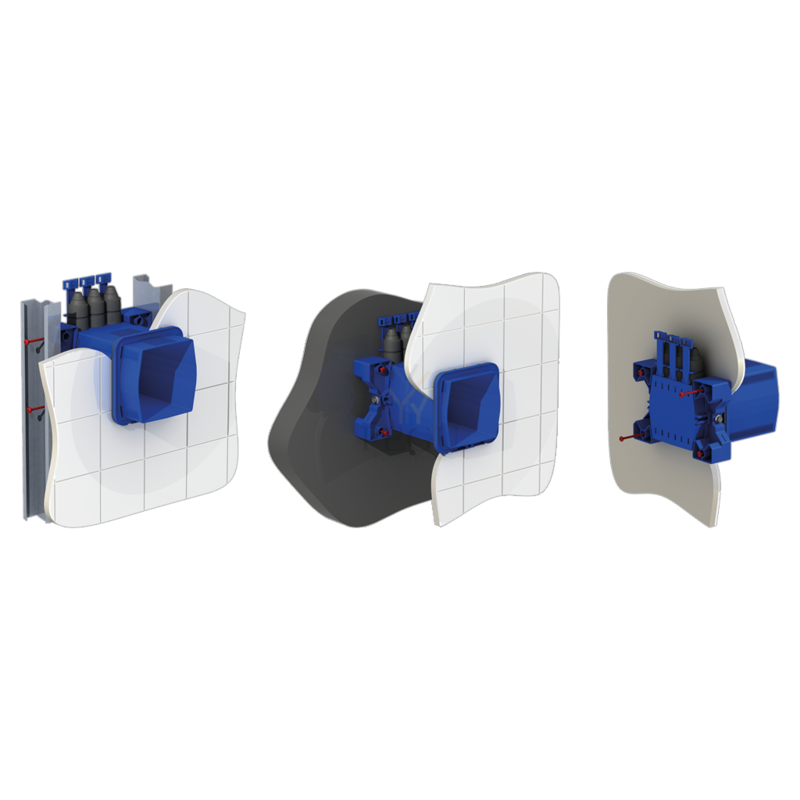

- Adjusts to all types of installation (rails, solid walls, panels).
- Compatible with wall finishes 10 - 120mm (while maintaining the minimum recessing depth of 93mm).
- Suitable for standard pipe supply or "pipe in pipe".
- Stopcocks and flow rate adjustment, filters, non-return valves and cartridge are integrated and can be accessed from the front.
- TEMPOMIX 3 single control mixer F½".
-Supplied in 2 kits: secure system flush without sensitive elements.
Temperature control and operation via the push-button.
Maximum temperature limiter (can be adjusted by installer).
Time flow ~30 seconds, can be adjusted.
Soft-touch operation.
Flow rate 6 lpm at 3 bar.

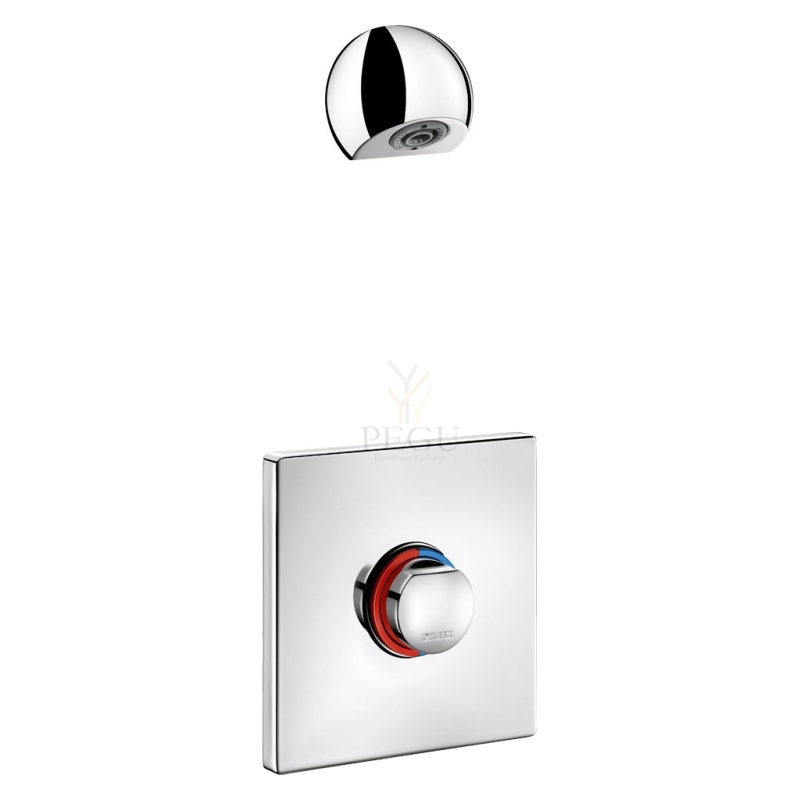

Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.
Файлы
TECHNICAL FEATURES
TEMPOMIX 3 shower kit
Ref. 794BOX1-794219

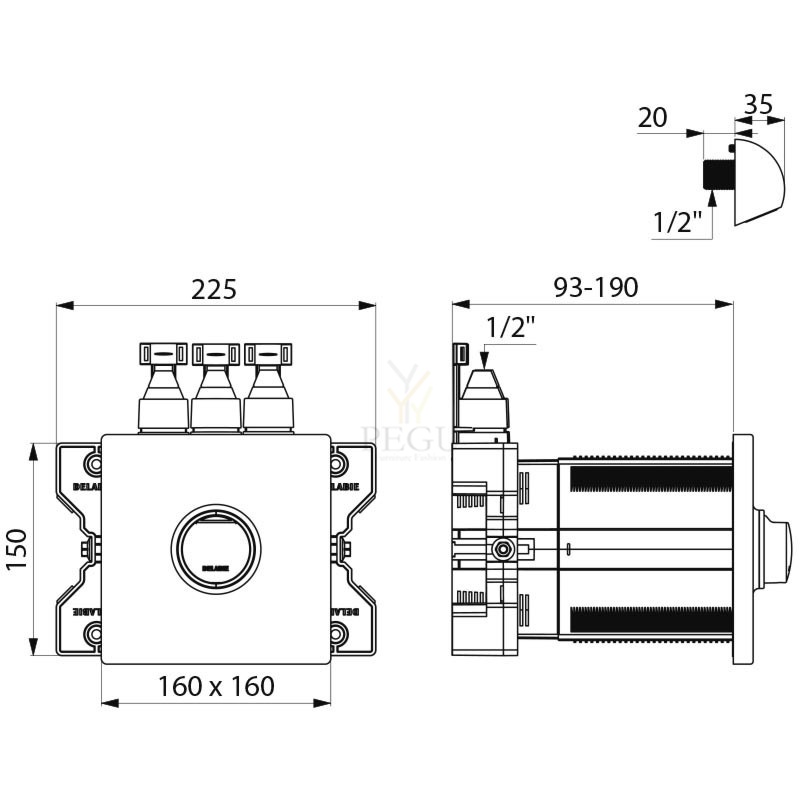

| Connector | 1/2" |
|---|---|
| Technology | Time flow |
| Height | 160mm |
| Depth | 93-190mm |
| Width | 160mm |
| Flow rate | 6 lpm |
Põlvekraan kas külma, või eelsegatud veele, isesulgev 390mm
15 sek on töötsükkel
Standard features
221,00 €
1/2" наружняя резьба
> Working pressure: 1 to 5 bar
> Flow: 3 l/min at 3 bar - 4 position-setting Anti water-hammer system
> 15 seconds - lever upwards or downwards
> Hydraulic supply: 2 PEX hoses DN8 G3/8'' - 350mm
> Thermal resistance: This tap can withstand a thermal shock of 75°C for 30 minutes as part of a thermal shock programme
> Convenience: Soft-touch Two-coloured ergonomic lever, in glass fiber reinforced polymer
> Installation: Cross-partition Wall thickness: 0 to 50 mm
> Delivered with: 2 PEX hoses with swivel nut and NF check valves 2 MM 3/8'' (12x17) stop valves 2 Filter gaskets 1 clamping nut > Standards / Approvals: Chrome-plated brass body compliant with standards NF EN1982 / NF EN12164 / NF EN12165 Nickel-Chrome surface treatment compliant with NF EN12540 Neutral Salt Spray (NSS) resistant: 200 h according to NF ISO 9227
