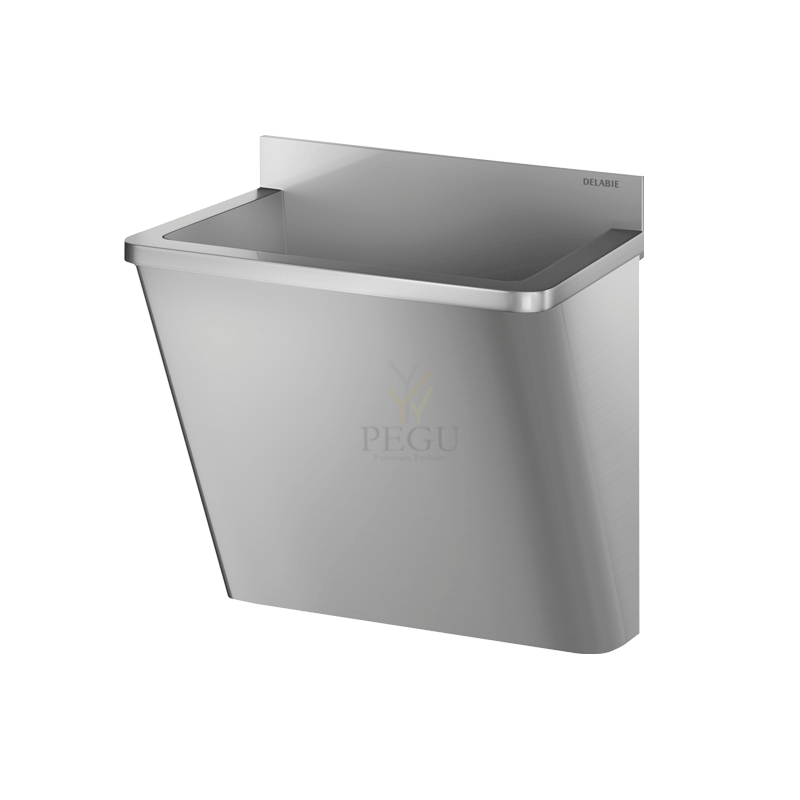

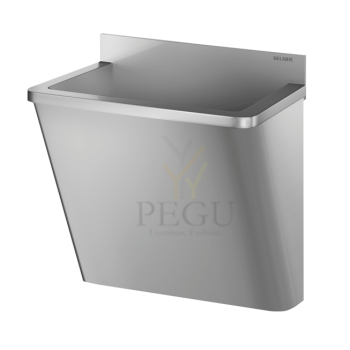

Хирургическая раковина с низким экраном "Hygiene+ 700mm нержавеющая сталь сатин AISI304

Артикул: DE-185020
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена: 2795,00 €
2515,50 €
Kuumakse alates: 213,82 €
Кол-во: - +
   - или -

Хирургическая раковина с низким экраном "Hygiene+ 700mm нержавеющая сталь сатин AISI304



Описание :


Хирургическая раковина Ref. 185020 разработана для профессионального использования в больницах и медицинских учреждениях. Изготовлена из бактериостатической нержавеющей стали 304 и оснащена инновационным дизайном "Hygiene+", который минимизирует зоны для размножения бактерий и облегчает очистку. Раковина имеет низкий защитный экран (75 мм), слив справа и крепежные элементы в комплекте.

Основные характеристики:

  • Настенное крепление
  • Низкий защитный экран: 75 мм
  • "Hygiene+": скрытый слив, уменьшение зон для размножения бактерий
  • Гладкая поверхность и скрытый сифон для легкой очистки
  • Изготовлена из бактериостатической нержавеющей стали 304
  • Толщина: 1,2 мм
  • Без отверстий для смесителя
  • Сертификат CE, соответствует стандарту EN 14296

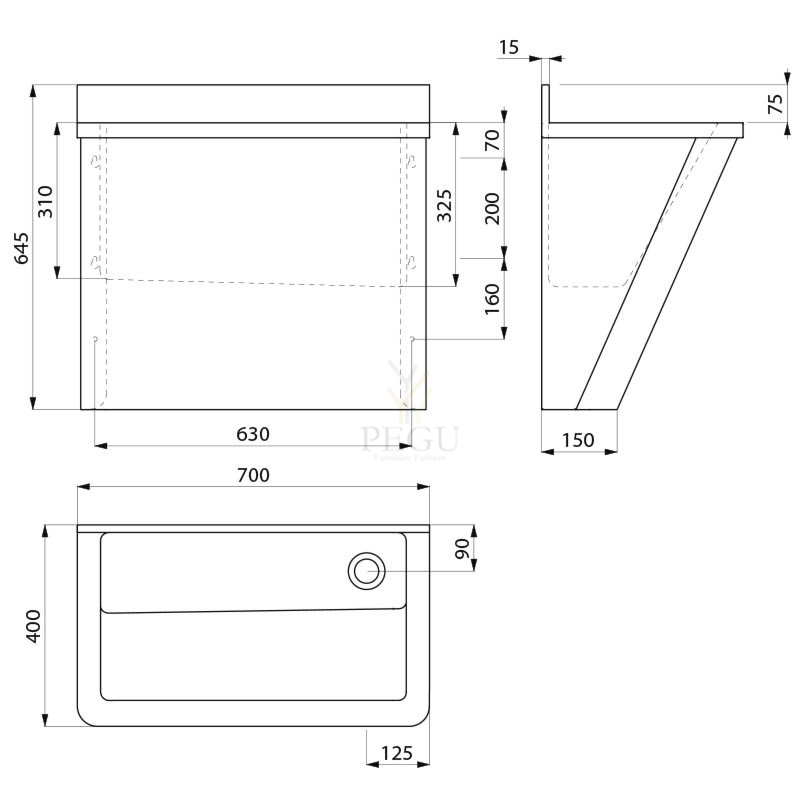

  • Размеры: высота 645 мм, ширина 400 мм, длина 700 мм
  • Вес: 15,6 кг



Surgical scrub-up trough with low upstand
Ref. 185020

Wall-mounted surgical scrub-up trough with 75mm upstand.
Suitable for hospitals and healthcare facilities.
Bacteriostatic 304 stainless steel. Polished satin finish. Stainless steel thickness: 1.2mm.
Length 700mm, 1 service. Without tap hole.
Smooth surface for easy cleaning.
"Hygiene+": reduces niches where bacteria can develop, concealed trap, easy to clean.
Drainage on the right. Without overflow. Supplied with fixing elements.
Weight: 15.6kg.

Схожие продукты

AUM 026 INV is a stainless steel, partly wall-built in washbasin, containing the combination of a liquid soap dispenser, water tap and hand dryer in a small space. The washbasin is adjusted to be used also by wheelchair persons – it is shallow, completed with handles, the waste is hidden behind the wall. Controlled by durable piezo-pushbuttons, electronically controlled turn-off (the period of water running is settable by the owner). The washbasin is to be mounted through the wall, all technology components are behind the wall, and thus cannot be damaged by users (anti-vandal design).

A wall-hanged version may be supplied to order, or a version without any of the functions (e.g. onlz water plus soap, or water plus dryer). The washbasin is made of AISI 304 stainless steel. A recommended cleaning agent for stainless products maintenance: Würth – preservation (order no. 0893 121 K), cleaning (order no. 893 121 1).

Basic technical information
Power supply: 230 V, 50 Hz
IP protection: IP 55
Dimensions (visible from outside): 800 x 800 x 363 mm
Required thickness of wall: min. 100 mm
Outlet: d = 40 mm

Requirements for setting up the construction
  1. Opening in the wal 740 x 740 mm
  2. Prepared el. supply cable 3C x 1,5 s 230 V, 50 Hz
  3. Prepared water outlet according to technical scheme


Complete delivery
  • Stainless-steel washbasin with handles
  • Electronic hand dryer
  • Electronic soap dispenser
  • Electronic water tap
  • Through-wall frame with bolts
  • Waste with a stink trap
  • 230V / 12V source for the electronics

Артикул: AZP-AUM 026.TV INV ,   Время доставки: 3-4 недели
4300,00 €
Водяной трап Н/Р сталь, D75 mm вертикальный, 150x150mm

On võimalik versioonid , vertikaalsed, horisontaalsed D50mm,75mm,110mm





PV 01

stainless steel floor trap






PV 01 is a fully stainless floor trap with braz designed to drain showers, industrial premises and other inner spaces. The trap is designed as stepping (not driven-over). The trap is made of AISI 304 quality stainless steel. Detergents containing chlorine must not be used for cleaning. If chlorine is contained in the environment, we recommend custom-made model of another material (e.g. AISI 316).

For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

We produce other custom-made models – outlet d = 50 mm, 110 mm; without rim for waterproofing; alternative cover grid (mesh); without braz; with adjustable height, etc. Send us your requirements, we will promptly answer!



Version types
PV 01.D.75.P - floor trap d = 75 mm, smell trap, outlet down, rim for waterproofing, not adjustable
PV 01.D.75.S - floor trap d = 75 mm, smell trap , outlet down , rim for waterproofing, adjustable
PV 01.B.75.P - floor trap d = 75 mm, smell trap , outlet to the side, rim for waterproofing, not adjustable
PV 01.B.75.S - floor trap d = 75 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.50.P - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.50.S - floor trap d = 50 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.50.P - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.50.S - - floor trap d = 50 mm, smell trap , outlet to the side , rim for waterproofing , adjustable
PV 01.D.110.P - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , not adjustable
PV 01.D.110.S - floor trap d = 110 mm, smell trap , outlet down , rim for waterproofing , adjustable
PV 01.B.110.P - floor trap t d = 110 mm, smell trap , outlet to the side , rim for waterproofing , not adjustable
PV 01.B.110.S - floor trap d = 110 mm, smell trap , outlet to the side , rim for waterproofing , adjustable


Basic technical information
Minimum inner diameter: 70 mm
Diameter of connecting sewerage pipe: 75 mm
Water flow: min. 50 lts / min
Loading class: K3
Weight: 2,2 kg


Complete delivery
  • Trap body
  • Grid with braz cover
  • Hook to pull up the grid





Requirements for setting up the construction
  1. Completed sewerage drains terminated by DN 75 coupling
  2. Prepared hole in the floor with diameter min. 300 mm (200 mm without rim for waterproofing) and depth min. 120 mm

Артикул: AZP-PV 01.D.75.P ,   Время доставки: 3-4 недели
423,00 €
Антивандальный унитаз Н/Р сталь



AUZ 08

stainless-steel standing closet, with hardened seat, back drain






AUZ 08 is a stainless-steel WC in matt design. To increase the user comfort, it is provided with a grey seat with a lid made of hardened plastic (newly also with a seat in black design AUZ 08.CS). AUZ 08 is designed to stand on the floor at the wall; it is suitable for places where the common closet cannot be attached to the wall, because of a thin bearing particle, for example. The standard version of AUZ 08 has a back drain (the version with the bottom drain AUZ 02). It is suitable to supplement the WC with the automatic pressure water flushing device AUZ 3, automatic flushing device with the piezo button AUZ 3.P (or the vandal-resistant flushing device BSAZ 01) or any flushing device with a cistern.



Thanks to its resistance to damage, the closet is primarily intended for social facilities with demanding operation, such as highway lay-byes, alehouses, etc., where easy maintenance of sanitary conditions is required. WC is also manufactured in the design for the disabled under the designation AUZ 08 INV



Further closet versions can be found in the section Stainless-steel closets or Stainless-steel safety closets.




Basic technical information
Water inlet: d= 34-50 mm
Min. water flow: 70 l/min
Outlet: d= 90 mm
Weight: 23 kg


Requirements for setting up the construction
  1. Set-up outlet d = 110 mm including rubber sleeve for pipe d = 90 mm.
  2. Set-up water inlet d= 34-50 mm according to chosen sealing.


Complete delivery
  • Stainless steel closet
  • Plastic seat
  • Anchoring material


Made to order
  • AUZ 3 - automatic pressure flushing system
  • AUZ 3.P - automatic pressure flushing system with piezo control
  • BSAZ 01 - vandal resistant pressure flushing system

Артикул: AZP-AUZ 08 ,   Время доставки: 3-4 недели
2452,00 €

> Working pressure : 1 to 5 bar

> Flow : 6 l/min at 3 bar - 4-position flow adjustment device Anti-water-hammering design

> Flow time : 15 seconds (± 5 sec.)

> Hydraulic supply : In-line water inlet M G 1/2" Inlet and outlet Cold water

> Thermal resistance : Resistant to a temperature of 75°C for 30 minute thermal shock

> Security : Patented anti-blocking "S" system to avoid the water to flow continuously

> Delivered with : 1 Cross-partition control (1 to 200 mm thick) 1 Short wall spout (Non-rotating fixing) 87 mm 1 Closing tap with S anti-blocking system 1 stop valve M 1/2" (15x21) / M 1/2" (15x21) with quick couplings (12x14 mm) Instruction manual

> Standards & approvals : Brass body in accordance with EN 1982, EN 12164, EN 12156 Molded chrome-plated body in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 922

Артикул: P31660 ,   Время доставки: 6-7 недель
310,65 € (5%)
327,00 €
 Раковина из нержавеющей стали KEG

Characteristics

  • stainless steel wall hung washbasin
  • with a tap hole
  • material AISI - 304
  • brushed finish
Артикул: SA-SLUN77A ,   Время доставки: 14-21 день
1179,00 €
