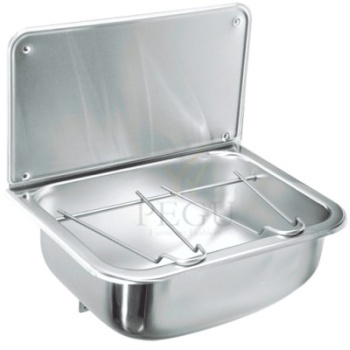

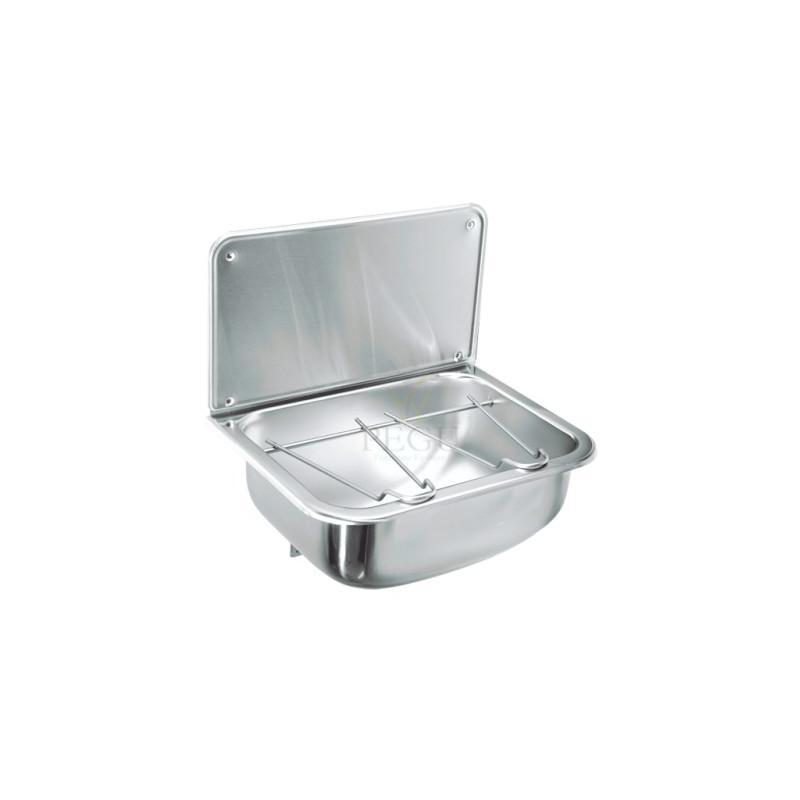

Intra GUB3 Н/Р сталь раковина, с подставкой под ведро и задней стенкой, 100mm отверстие

Артикул: I-GUB3
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена:
355,00 €
Kuumakse alates: 30,18 €
Кол-во: - +

Valamu R/V terasest

Garaazi/koristusruumi jaoks

Схожие продукты

Delabie WC INVA Monobloco 700 Н/Р сталь

DESCRIPTION

MONOBLOCO 700 PMR WC pan with cistern
Ref. 110790

Floor-standing WC pan with dual flush cistern 3L/6L, 370 x 895 x 700mm.
700mm elongated pan for better comfort for people with reduced mobility.
Bacteriostatic 304 stainless steel. Polished satin finish.
Stainless steel thickness: 1.5mm.
One-piece pressed WC bowl, seam-free for better hygiene.
WC bowl surface is polished with rounded edges for easy cleaning.
Concealed perimetral flushing rim. Water supply can be recessed from below or exposed from the side (right/left).
Recessed horizontal or vertical waste outlet. Supplied with PVC pipe.
Pre-drilled holes for fixing the toilet seat. Supplied with stainless steel blanking caps when installed without toilet seat lid.
Quick to install: 2 access panels with theft prevention TORX security screws.
CE marked. Complies with European standard EN 997 for 4L flush.
Weight: 22kg.
10-year warranty.

TECHNICAL FEATURES

MONOBLOCO 700 PMR WC pan with cistern
Ref. 110790

Height 895mm
Length 700mm
Width 370mm
Thickness 1.5mm
Finish Polished satin 304 stainless steel


Артикул: DE-110790 ,   Время доставки: 7 недель
2519,10 € (10%)
2799,00 €
Артикул: PINS-535-OVC + PWC-Wood mahagon ,   Время доставки: 8 недель
1795,00 €
Антивандалльная душевая пьезо кнопка Н/Р сталь, для смешанной воды,  без адаптора



AUS 11

Pressure button-controlled shower for heat regulated water










AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.




Basic technical information
Water input: G 1/2“
Water pressure: 1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow: 10 s – 42,5 min in mode 1
  0 s - 42,5 min in mode 2
Power supply: 12 V, 50 Hz
Power requirement: 6 VA
Source of power supplz: ZAC 1/20 (max. 3× AUS 11)
  ZAC 1/50 (max. 8× AUS 11)
Weight: 2,0 kg


Requirements for setting up the construction
  1. Water installation set up as per picture
  2. Set-up alcove 150 x 75 mm for installation casket
  3. Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC


Complete delivery
  • installation casket
  • input and output bolting
  • electromagnetic valve
  • spherical valve
  • covering metal plate with piezo button
  • electronics


Made to order
  • SP 1 – shower arm with water flow of 9 l/min
  • SP 2 – shower arm with water flow of 7 l/min
  • SP 3 – shower arm with water flow of 7 l/min
  • ZAC - source of power supply 12V, 50Hz


Figure


A - water inlet G 1/2"
C - electricity supply cable 12 V, 50 Hz
G - water outlet into shower armG 1/2"




Download information about the product
AUS 11 data for projectants - ( 84 kB )

Артикул: AZP-AUS 11 ,   Время доставки: 3-4 недели
375,00 €

TECHNICAL FEATURES

LISO urinal divider for wall-mounting
Ref. 100590

Height 700mm
Length 25/50mm
Width 350mm
Thickness 1.5mm
Finish 304 polished satin stainless steel
Артикул: DE-100590 ,   Время доставки: 14-30 дней
680,40 € (10%)
756,00 €

Питьевой фонтан напольный/настенный с наполнителем для бутылки ,механический Н/Р сталь AISI304

AFO 01.SL

drinking fountain with spout for filling bottles designed to stand and to be attached to wall

AFO 01.SL is a drinking fountain with spout for filling bottles designed to stand and to be attached to wall. Water runs for the time for which the valve is pressed plus the pre-set period after it is released; thus the jet can be rinsed. Second pressure valve serves for bottle filling.

In standard version the fountain is produced with a niche suitable for filling the bottle of 0.7 l. Fliountain with a niche for filling the botlles of 1.5 l can be made on order.

Water supply is provided by a flexible hose, trap comprises an elastic flexible couple. Flexible design of water supply and outflow allows variable and easy connection of the drinking fountain as well as its dismounting.

TAutomatic drinking fountain (with a sensor) can be supplied per order.

AFO 01.SL is manufactured from the stainless steel AISI 304. Other materials (e.g. AISI 316) possible on order.
For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).

Package contents

  • Stainless housing with cone
  • Pressure valve with jet
  • Pressure valve for bottle filling
  • Flexible hose outflow
  • Fixing and connecting material
dimensions 330 x 900 x 365 mm
water outlet d = 40 mm
water inlet G 1/2"
water pressure 2 - 6 Bar, recommended 3 Bar
weight 12 kg



  • Set up water outlet d = 40 mm
  • Set up water inlet G 1/2"



Артикул: AZP-AFO01.SL ,   Время доставки: 3-4 недели
1917,00 €
