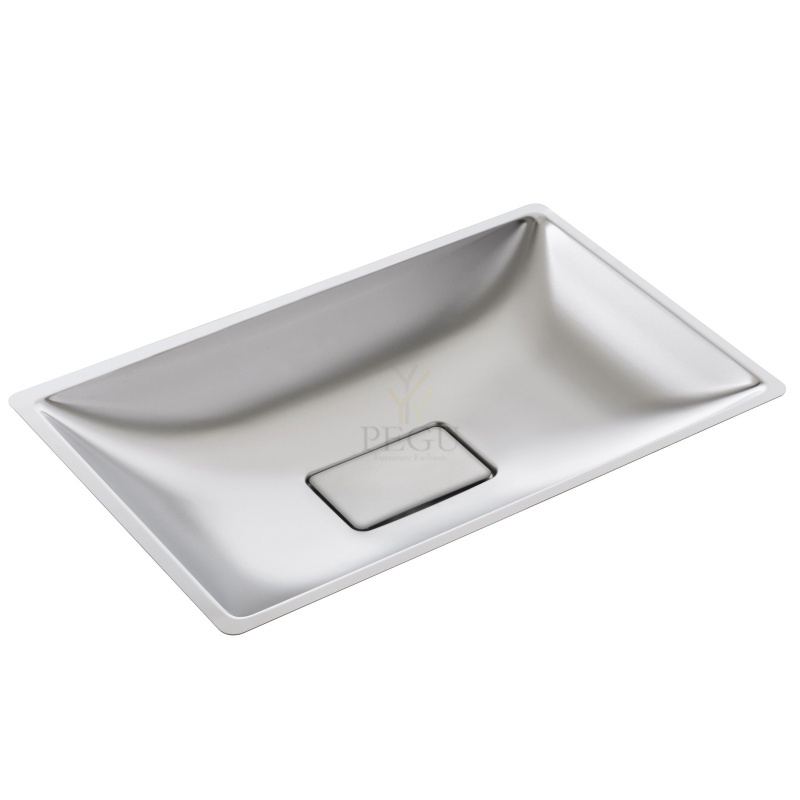

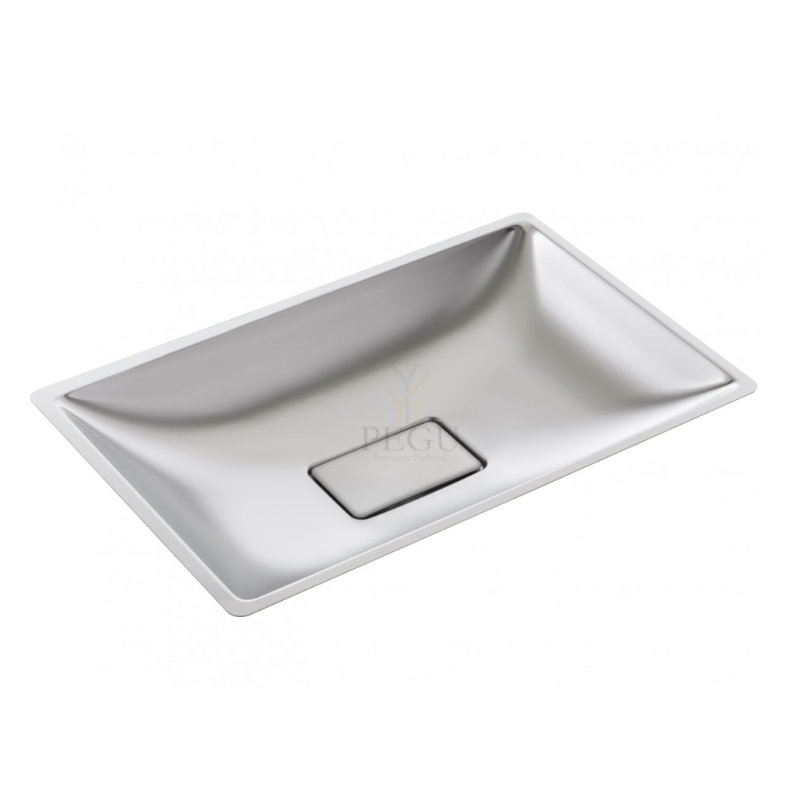

Intra ICON раковина IC1 матовая, установка под столешницу
Бренд:
Единица: шт
Время доставки: 14-21 день
Продавец: PEGU OÜ
Откройте для себя широкий ассортимент качественной сантехники и аксессуаров на PEGU.EE, включая мусорные баки, сушилки для рук, душевые стойки, моечные раковины, лабораторные раковины и аварийные души. Добавьте подходящие товары в корзину и используйте код купона PEGU-LUMI для получения специальных цен! Промокод действует на товары, которые не участвуют в других акциях.
General

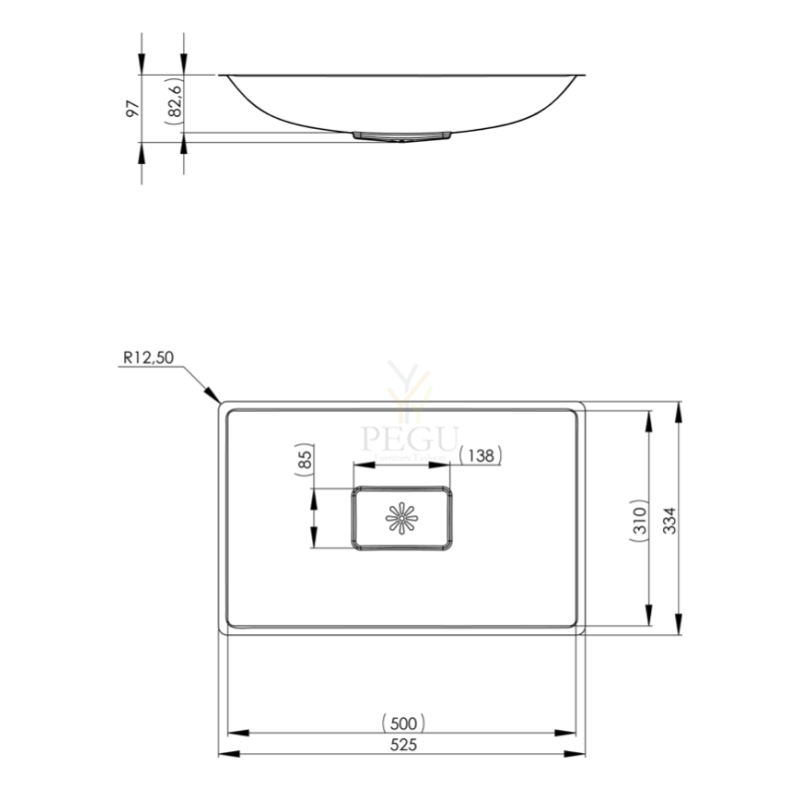

| Size (mm): | 525 x 334 x 97 |
| Large bowl (mm): | 500 x 310 x 83 |
| Designer: | Halvor Thorsen |
Description
Icon Hand Wash Basin IC1-32 in stainless steel 18/10, is designed for under mounting.The hand wash basin is pressed in one piece and has laser-cut integrated outlet holes that are concealed by a removable outlet cover.The basin is supplied with waste under part and overflow equipment.
Brushed finish.
Коллективный писуар 1200 mm нержавеющая сталь
automatic washing system for wellingtons with jets - 12V, 50Hz
| Radius of sensor | 0 – 0,4 m |
| Water inlet | G 1/2“ |
| Water pressure | 0,3 – 1,0 MPa |
| Outlet | d = 32 mm |
| Inner dimensions of the trough | 250 x 400 x 280 mm |
| Electricity protection | IP 55 |
| Power supply | 12 V, 50 Hz |
| Power requirement | 10 VA |
| Source of power supply | ZAC 1/20 (max. 2 x AMO 01) |
| ZAC 1/50 (max. 5 x AMO 01) | |
| Weight | 18 kg |
- Set up water inlet as per picture
- Set up outlet d = 32 mm
- Set up cable for power supply – 12 V, 50 Hz from source of power supply ZAC
Сливной механизм для писсуара инфра-красный датчик монтажная коробка, с встроенным элементом питания 230V/AC
SLP 02NZ
Urinal infra-red flushing unit with a mounting box and integrated power supply, 230 V AC
Characteristics
- system reacts to the user attendance in front of the urinal at a maximum distance of 0,7 m, minimum stay time in active range is 7,5 s
- water flows after the user leaves active range
- adjustable flushing time 0,5 - 15,5 s
- parameters adjustment by remote control SLD 03
- automatic hygiene flushing after 24 hours non-use
- possibility to regulate a water flow by the ball valve
| Order number | 42023 |
| Code | SLP 02NZ |
Supply specification
Technical information
Mounting box dimension: 140 x 140 x 75 mm
Operating voltage: 230 V AC/50 Hz
Active range: 0,6 - 0,75 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 3/4“
Water outlet: male thread G 3/4“
Питьевой фонтан настенный сенсорный для бассейнов Н/Р сталь AISI316(бассейны) 12V/50Hz
AFO 01.Yst. steel sensor controlled drinking fountain
AFO 01.Y is st. stainless wall hung drinking fountain controlled by sensor. Water runs after disrupting the scanning zone.
Fountain is made by welding all components together.
Fountain is suppplied with safety power 12 V, 50 Hz from power supply ZAC (AFO 01.Y) or with 4x AA battery (AFO 01.YB).
Material is standardly st. steel AISI 304 or can be AISI 316 (AFO 01.Y.CL or AFO 01.YB.CL).
St. steel driking fountain AFO 01.Y is based on favourite model AFO 01 with manual control.
The sensor, located on the right side of the fountain, is reacting on the approach of the user. Water starts to run from the nozzle, located in the middle of the fountain bowl, and runs over the time when the user´s head is in the scanning zone (max. 30 sec.) + preset time (max. 4 sec.) to clean the nozzle.
Package contents
- st. steel drinking fountain
- nozzle
- sensor and electronic
- electromagnetic valve
- connecting flexible hose
- corner valve with filters
- siphon
- mounting material
| water inlet | G 1/2" |
| water pressure | 1 - 10 Bar (AFO 01.Y; AFO 01.Y.CL) |
| 2 - 8 Bar (AFO 01.YB; AFO 01.YB.CL) | |
| outlet | d = 40 mm |
| bowl inner dimension | d = 245 mm |
| weigth | 4 kg |
| suppply | 12 V, 50 Hz (AFO 01.Y; AFO 01.Y.CL) |
| 6 V - 4 x AA battery (AFO 01.YB; AFO 01.YB.CL) | |
| power supply | ZAC 1/20 (max. 3 x AFO 01.Y ; AFO 01.Y.CL) |
Питьевой фонтан напольный / настенный с системой охлаждения воды, кнопка piezo Н/Р сталь AISI304 230V/50Hz
AFO 01.SC
drinking fountain with cooling designed to stand and to be attached to wall
AFO 01.SC is a drinking fountain with cooling designed to stand and to be attached to wall. User can select between uncooled water and water running through a flow cooler. The fountain is operated by means of two piezo-buttons – resistant solution. Facility keeper can set a time period after which the water flow automatically stops.
The product contains a flow cooler. It is not a design with cooled tank only where – after the pre-cooled amount of water is pumped out – the user has to wait for the next charge to be cooled.
Flexible design of water supply and outflow allows variable and easy connection of the drinking fountain as well as its dismounting.
ttles
Automatic drinking fountain (with a sensor) can be supplied per order.
AFO 01.S is manufactured from the stainless steel AISI 304.
Other materials (e.g. AISI 316) possible on order. For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).
Package contents
- Stainless housing with cone
- Electronics and control piezo-buttons
- Water supply and electromagnetic valves
- Flow cooler
- Flexible hose outflow
- Fixing and connecting material
| dimensions | 330 x 900 x 365 mm |
| water outlet | d = 40 mm |
| water inlet | G 1/2" |
| water pressure | 0,2 – 0,6 MPa, recommended 0,3 MPa |
| power supply | 230 V, 50 Hz |
| power input | 820 W |
| weight | 24 kg |
- Set up water outlet d = 40 mm
- Set up water inlet G 1/2"
- Electric socket 230 V, or electric cable CYKY 3C x 1,5
