| Water inlet | G 1/2" |
| Water pressure | 0,2 – 0,6 MPa (recommended 0,3 MPa) |
| Outlet | d = 40 mm |
| Inner dimension of the fountain | d = 245 mm |
| Weight | 4 kg |
Intra настенная хозяйственная раковина VK 480x385x190mm, Н/Р сталь
Если вы нашли подходящий товар, просто нажмите В КОРЗИНУ, перейдите в КОРЗИНУ, выберите ЗАКАЗ, заполните данные и выберите способ доставки. Всё так просто – покупка всего в нескольких кликах!
Бренд:
Единица: шт
Время доставки: 14-21 день
Продавец: PEGU OÜ
For orders from European Union countries, please send a price inquiry to our email. To calculate the shipping cost, please provide the address. For companies, include your VAT number.
Цена:
![]()
Kuumakse alates: 26,22 €
305,00 €

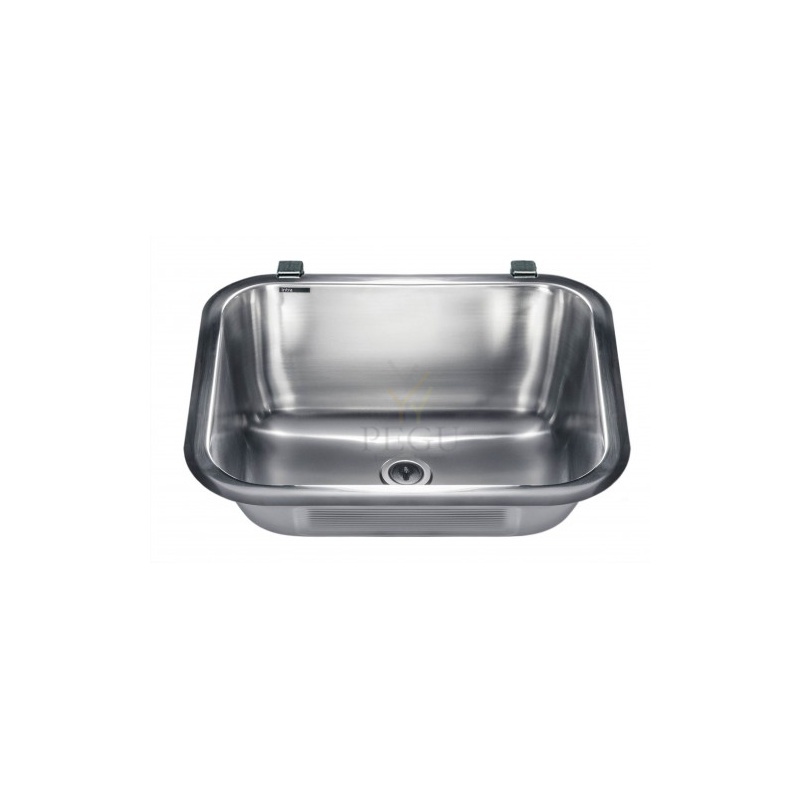

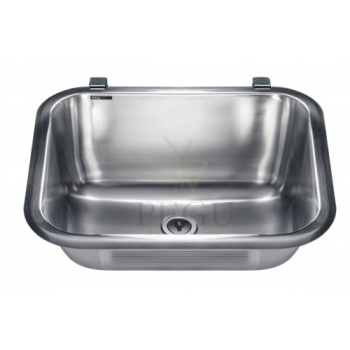

Intra настенная хозяйственная раковина VK 480x385x190mm, Н/Р сталь
Wall hung utility sink in stainless steel. Supplied with fixing brackets.
Файлы
Схожие продукты
Артикул: PINS-535-OVC + PWC-Wood mahagon
, Время доставки: 8 недель
1587,83 € (5%)
1671,40 €
1671,40 €
Drinking fountain in stainless steel 18/10 for wall mounting. Supplied with supporting bracket, grated waste, wall panel and water bubbler.
Артикул: I-ED2-0DF
, Время доставки: 14-21 день
537,00 €
Сливной механизм для писсуара инфра-красный датчик монтажная коробка, с встроенным элементом питания 230V/AC
SLP 02NZ
Urinal infra-red flushing unit with a mounting box and integrated power supply, 230 V AC
Characteristics
- system reacts to the user attendance in front of the urinal at a maximum distance of 0,7 m, minimum stay time in active range is 7,5 s
- water flows after the user leaves active range
- adjustable flushing time 0,5 - 15,5 s
- parameters adjustment by remote control SLD 03
- automatic hygiene flushing after 24 hours non-use
- possibility to regulate a water flow by the ball valve
| Order number | 42023 |
| Code | SLP 02NZ |
Supply specification
SLP 02NZ - Supply No. 42023 - stainless steel cover with electronics, plastic mounting box with brass screw coupling, electromagnetic valve and ball valve, power supply
Technical information
Stainless steel cover dimension: 170 x 170 x 10 mm
Mounting box dimension: 140 x 140 x 75 mm
Operating voltage: 230 V AC/50 Hz
Active range: 0,6 - 0,75 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 3/4“
Water outlet: male thread G 3/4“
Mounting box dimension: 140 x 140 x 75 mm
Operating voltage: 230 V AC/50 Hz
Active range: 0,6 - 0,75 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 3/4“
Water outlet: male thread G 3/4“
Артикул: SA-SLP02NZ
, Время доставки: 14-21 день
373,50 € (10%)
415,00 €
415,00 €
Питьевой фонтан настенный механический Н/Р сталь AISI304
AFO 01 stainless steel wall-mounted drinking fountain
AFO 01 is a stainless steel wall-mounted drinking fountain of modern design with a manual press valve that allows its easy use. The water flows only when the valve is pressed and then there is a certain adjusted time to rinse out the nozzle.
The water inlet is fitted with a flexible hose, the siphon is made from a stretchy, flexible connector. The flexible finish of the water inlet and outlet allows the variable and problem-free connection of the fountain.
AFO 01 stainless steel fountain is suitable mainly for schools, medical facilities and spa resorts, and is utilizable outdoors.
AFO 01 is made of stainless steel AISI 304.
AFO 01.CL is made of stainless steel AISI 316 and is suitable into the areas with higher concentration of chlorine (e.g. swimming pools).
Sensor-controlled fountain possible made to order.
For cleaning we recomnned WÜRTH detergents – material preservation (no. 0893 121 K) and material cleaning (no. 893 121 1).
Package contents
- stainless steel sink with casing
- press valve
- corner valve with filter
- flexible hose siphon
- fixing bar
- connecting hoses
- anchoring material
Артикул: AZP-AFO01
, Время доставки: 3-4 недели
765,00 €
Питьевой фонтан настенный сенсорный для бассейнов Н/Р сталь AISI316(бассейны) 6V(4x1.5V)
AFO 01.Yst. steel sensor controlled drinking fountain
AFO 01.Y is st. stainless wall hung drinking fountain controlled by sensor. Water runs after disrupting the scanning zone.
Fountain is made by welding all components together.
Fountain is suppplied with safety power 12 V, 50 Hz from power supply ZAC (AFO 01.Y) or with 4x AA battery (AFO 01.YB).
Material is standardly st. steel AISI 304 or can be AISI 316 (AFO 01.Y.CL or AFO 01.YB.CL).
St. steel driking fountain AFO 01.Y is based on favourite model AFO 01 with manual control.
The sensor, located on the right side of the fountain, is reacting on the approach of the user. Water starts to run from the nozzle, located in the middle of the fountain bowl, and runs over the time when the user´s head is in the scanning zone (max. 30 sec.) + preset time (max. 4 sec.) to clean the nozzle.
Package contents
- st. steel drinking fountain
- nozzle
- sensor and electronic
- electromagnetic valve
- connecting flexible hose
- corner valve with filters
- siphon
- mounting material
| water inlet | G 1/2" |
| water pressure | 1 - 10 Bar (AFO 01.Y; AFO 01.Y.CL) |
| 2 - 8 Bar (AFO 01.YB; AFO 01.YB.CL) | |
| outlet | d = 40 mm |
| bowl inner dimension | d = 245 mm |
| weigth | 4 kg |
| suppply | 12 V, 50 Hz (AFO 01.Y; AFO 01.Y.CL) |
| 6 V - 4 x AA battery (AFO 01.YB; AFO 01.YB.CL) | |
| power supply | ZAC 1/20 (max. 3 x AFO 01.Y ; AFO 01.Y.CL) |
Артикул: AZP-AFO01.YB.CL
, Время доставки: 3-4 недели
1281,00 €
