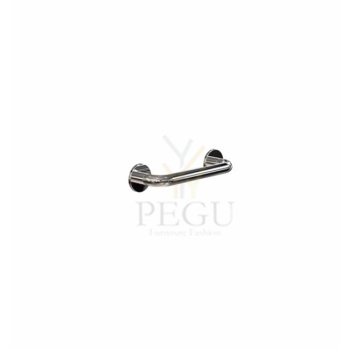

Инвалидная ручка Frost Grab rail 2 Н/Р сталь полированная
Если вы нашли подходящий товар, просто нажмите В КОРЗИНУ, перейдите в КОРЗИНУ, выберите ЗАКАЗ, заполните данные и выберите способ доставки. Всё так просто – покупка всего в нескольких кликах!
Бренд:
Единица: шт
Время доставки: 14-21 день
Продавец: PEGU OÜ
For orders from European Union countries, please send a price inquiry to our email. To calculate the shipping cost, please provide the address. For companies, include your VAT number.
Technical specifications
Dimensions 825 x 807 x 100 mm
Bar and leg diameter Wall plate thickness Ø 32 mm 3,0 mm
Paper roll dispenser diameter Ø 10 mm
215,00 €
-
Components y materials
-
FOLDING BAR: folded in a trapezoidal shape and manufactured with a 32 mm diameter AISI 304 stainless steel tube satin finish. Both bar ends are welded to the vertical column, made of a 32 mm diameter stainless steel AISI 304 tube. The grip zones of the bar have a safety anti-slip finish to improve the user safety. It incorporates a paper roll holder 120 mm length, made of a 6 mm diameter AISI 304 stainless steel rod.
-
WALL MOUNTING PLATE: made of an AISI 304 stainless steel satin finish rectangular plate of 125 x 100 mm and 10 mm thick. It incorporates four Ø 8 mm countersunk holes, to fix the bar to the wall.
-
FLOOR MOUNTING PLATE: made of an AISI 304 stainless steel satin finish circular plate of Ø 75 mm and 5 mm thick. It incorporates three Ø 7 mm countersunk holes to fix the bar on the floor.
-
UNLOCK HANDLE: made of black thermoplastic.
BG0089CS Satin finish
Technical specifications
Dimensions
Grab bar and column diameter Wall mounting plate thickness Floor mounting plate thickness Paper roll holder diameter
700 x 835 x 100 mm
Ø 32 mm 10.0 mm 5.0 mmØ 6.0 mm
542,00 €
General description
-
Wall to wall grab bar with three support points, made of diameter 32 mm AISI 304 stainless steel tube, to be installed in the washbasins and toilets.
-
With snap flange covers to conceal the screws, helping to achieve a beautiful and sleek look and protecting the flange surfaces from damage, dust, moisture and foreign particles.
-
Ideal to design barrier-free accessibility, both domestic and commercial places, these grab bars help make the lives easier for the handicapped and elderly people.
-
Highest durability and rusting resistance.
-
Optionally, these bars can be electrically isolated by installing the electrical isolation Kit code KA0020.
-
These grab bars are supplied with a kit to fix the bar to a brick wall.
Components and materials
-
BFD600C: grab bar right hand, made of diameter 32 mm AISI 304 stainless steel tube, bright finish.
-
BFI600C: grab bar left hand, made of diameter 32 mm AISI 304 stainless steel tube, bright finish.
-
BFD600CS: grab bar right hand, made of diameter 32 mm AISI 304 stainless steel tube, satin finish.
-
BFI600CS: grab bar left hand, made of diameter 32 mm AISI 304 stainless steel tube, satin finish.
-
TUBING: made of 32 mm diameter tube, seamless construction. The bending process guarantees the uniformity of the diameter along the bends.
-
CONCEALED MOUNTING FLANGE: three units made of AISI 304 stainless steel, 3 mm thick. Incorporates two Ø 6.5 mm screws holes for wall mounting.
-
SNAP FLANGE COVER: three units made of stainless steel AISI 304, 0.8 mm thick and Ø 82 mm. Each cover snaps over mounting flange to conceal mounting screws.
189,00 €
Be-Line drop-down support rail with leg, L. 650mm, anthracite
Ref. 511962C
Be-Line drop-down support rail for people with reduced mobility.
In the lowered position use as a grab bar, as a support for standingand for assisting movement, for WCS or showers.
Allows side access in the raised position.
Removable: easy to remove with anti-theft locking system. Reduces the number of barsin a facility, allowing installation only when required.
Example: hotels or hospitals providing short-term accommodation for people with reduced mobility.
Retained in upright position. Slowed down descent.
Aluminium tube.
Rounded profile Ø 42mm with ergonomic flat front face that prevents rotation for an optimal grip.
Metallised anthracite powder-coated aluminium finish provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
Concealed fixings secured to wall by a 304 stainless steel plate, 5mm thick.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Leg provides additional reinforcement when wall fixings are not enough.
Dimensions: 650 x 825 x 120mm.
Leg height can be adjusted from 760 - 780mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
TECHNICAL FEATURES
Be-Line drop-down support rail with leg, L. 650mm, anthracite
Ref. 511962C
| Height | 210mm |
|---|---|
| Length | 650mm |
| Width | 120mm |
| Finish | Powder-coated metallised anthracite aluminium |
