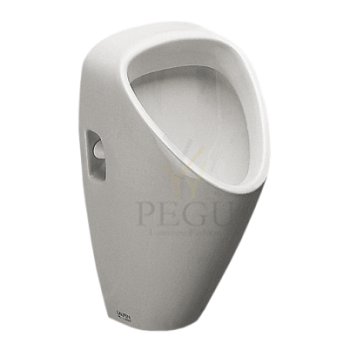

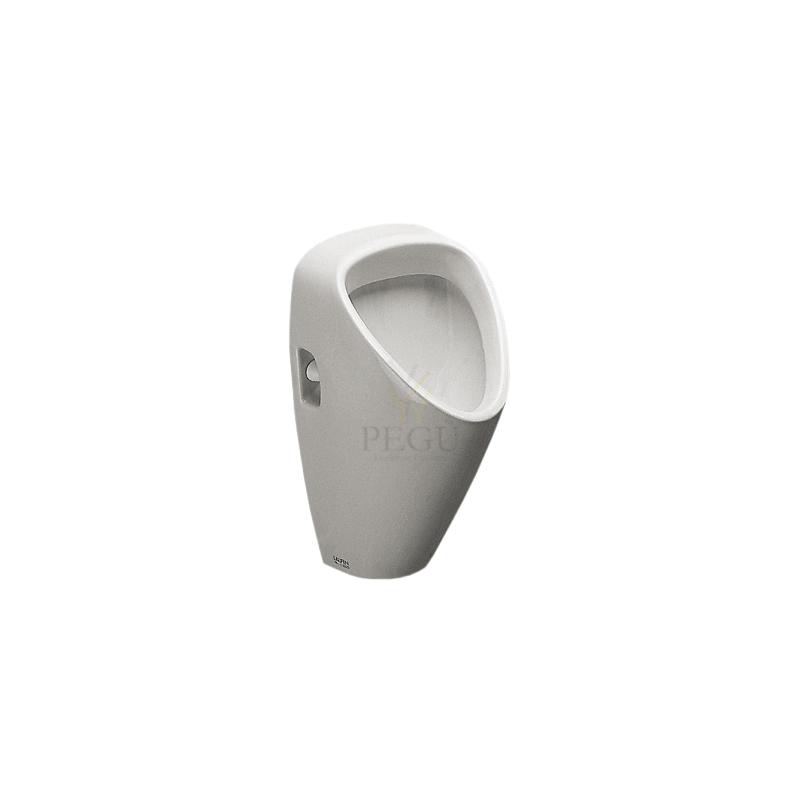

Керамический писсуаар Caprino с радаром Sanela, с интегрированным источником питания 240V/AC

Артикул: SA-SLP23RZ
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена:
1207,00 €
Kuumakse alates: 102,60 €
Кол-во: - +

Керамический писсуаар Caprino с радаром Sanela,  с интегрированным источником питания 240V/AC

SLP 23RZ



Urinal Caprino with a radar flushing unit and integrated power supply, 230 V AC



Characteristics

  • economy flushing by 1 liter of water
  • easy installation by the help of paper drill template
  • whole flushing unit is placed behind the urinal
  • system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal,when a liquid is flowing through)
  • adjustable flushing time 0,5 - 15,5 s
  • parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
  • automatic flushing after each 6 hours non-use
  • possibility to regulate a water flow by the angle valve
  • radar flushing unit recharges a water to the siphon after each flushing
Order number 01235
Code SLP 23RZ


Supply specification

SLP 23RZ - Supply No. 01235 - ceramic urinal with radar flushing unit on the mounting rail, electromagnetic valve, connecting hoses, angle valve with a filter and check valve, inlet fitting with a rubber sealing, siphon, mounting set, paper drill template, power supply

Technical information

Operating voltage: 230 V AC/50 Hz
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 1/2“
Water outlet: inlet fitting with a rubber sealing
