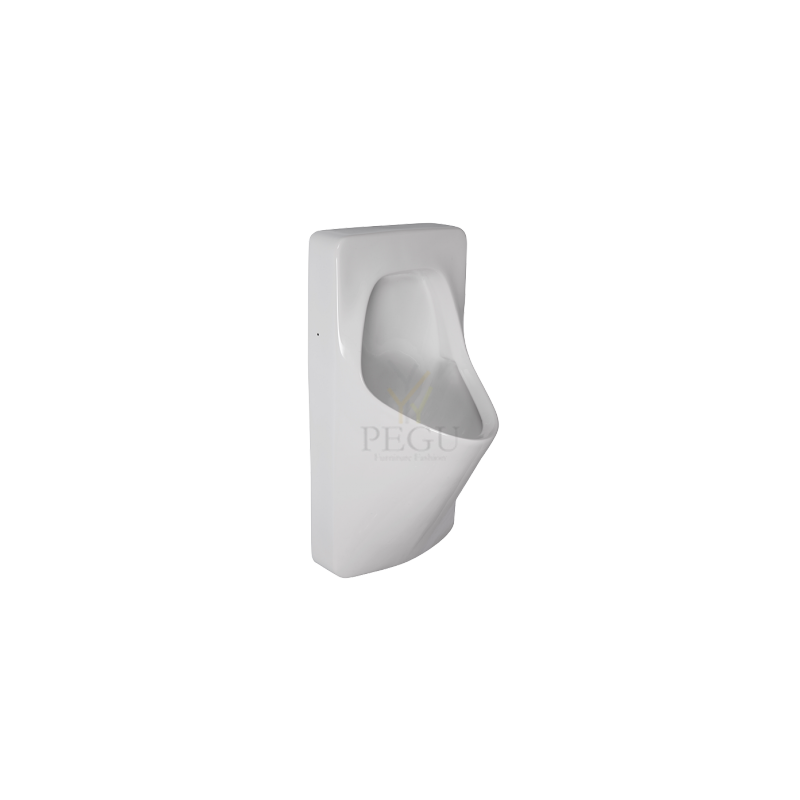

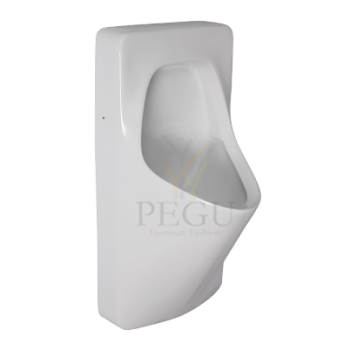

Керамический писсуар Antero с радаром Sanela, интегрированный источник питания 240V/ AC
Бренд:
Единица: шт
Время доставки: 14-21 день
Обязательно указать в спецификации проекта : PEGU OÜ
Керамический писсуар Antero с радаром Sanela, интегрированный источник питания 240V/ AC
SLP 20RZ
Urinal Antero with a radar flushing unit and integrated power supply, 230 V AC
Characteristics
- easy installation
- whole flushing unit is placed behind the urinal
- system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
- adjustable flushing time 0,5 - 15,5 s
- parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
- automatic flushing after each 6 hours non-use
- possibility to regulate a water flow by the angle valve
- radar flushing unit recharges a water to the siphon after each flushing
Order number | 01205 |
Code | SLP 20RZ |
Supply specification
Technical information
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 1/2“
Water outlet: inlet fitting with a rubber seal
Видео
Кран с сенсором Sanela Н/Р сталь холодная/смешанная вода
Characteristics
- economical aerator, rate of flow 6 l/min
- function of automatic water stop after 5 minutes of continuous flow
- water is flowing as long as hands are in the active range (max. range to 0,3 m)
- water stops flowing after removal of hands from the active range of sensor after adjustable time delay from 0,25 to 7,75 sec
- possibility of changing of time delay, active range and switching off by SLD 03
- SLU 45 is destined for cold or premixed water under the washbasin
- START/STOP program
automatic washing system for wellingtons with jets - 12V, 50Hz
Radius of sensor | 0 – 0,4 m |
Water inlet | G 1/2“ |
Water pressure | 0,3 – 1,0 MPa |
Outlet | d = 32 mm |
Inner dimensions of the trough | 250 x 400 x 280 mm |
Electricity protection | IP 55 |
Power supply | 12 V, 50 Hz |
Power requirement | 10 VA |
Source of power supply | ZAC 1/20 (max. 2 x AMO 01) |
ZAC 1/50 (max. 5 x AMO 01) | |
Weight | 18 kg |
- Set up water inlet as per picture
- Set up outlet d = 32 mm
- Set up cable for power supply – 12 V, 50 Hz from source of power supply ZAC
Бесконтактный водяной кран+дозатор для мыла MWS straight
Multifunctional touchless faucet, water and soap in one unit, countertop integration.
Simple Touchless operation, the untouchable™ makes use of an elegant infrared interface, operated through a simple process: select above, receive under. By swiping above the untouchable™ - in any direction - the dispenser cycles through the available liquids. When a desired liquid is selected, the hand is simply placed under the faucet. Compatible with 1,000 ml standard Euro bottles, suitable for low-viscosity soaps and lotions, refillable using bottles with wide neck, dosage (depending on viscosity): soap approx. 2 ml, value can be changed on request before delivery
Stainless steel, ground | ||
Water | ||
Refillable | ||
1000 ml | ||
Liquid soaps | ||
Touchless |
Смывная система для писсуара с реле времени 230V/AC антивандальная
SLP 01Z
Time-controlled flushing unit, 230 V AC
Characteristics
- vandal-proof
- time-controlled flushing unit for urinal troughs SLPN 02(Z) - 05(Z)
- adjustable flushing time 0,5 - 15,5 s, standard 5 s
- parameters adjustment by remote control SLD 04
- adjustable flushing interval 10 min - 3 days, standard 1 h
- after switch on the power supply 230 V AC, SLP 01Z starts to flush in adjusted interval
Order number | 01011 |
Code | SLP 01Z |
Supply specification
Technical information
Mounting box dimension: 145 x 155 x 100 mm
Operating voltage: 230 V AC/50 Hz
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 40 l/min (inf. data)
Water inlet: male thread G 1“
Water outlet: male thread G 1“
531,00 €
Сливной механизм для писсуара инфра-красный датчик монтажная коробка, с встроенным элементом питания 230V/AC
SLP 02NZ
Urinal infra-red flushing unit with a mounting box and integrated power supply, 230 V AC
Characteristics
- system reacts to the user attendance in front of the urinal at a maximum distance of 0,7 m, minimum stay time in active range is 7,5 s
- water flows after the user leaves active range
- adjustable flushing time 0,5 - 15,5 s
- parameters adjustment by remote control SLD 03
- automatic hygiene flushing after 24 hours non-use
- possibility to regulate a water flow by the ball valve
Order number | 42023 |
Code | SLP 02NZ |
Supply specification
Technical information
Mounting box dimension: 140 x 140 x 75 mm
Operating voltage: 230 V AC/50 Hz
Active range: 0,6 - 0,75 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 3/4“
Water outlet: male thread G 3/4“
415,00 €
