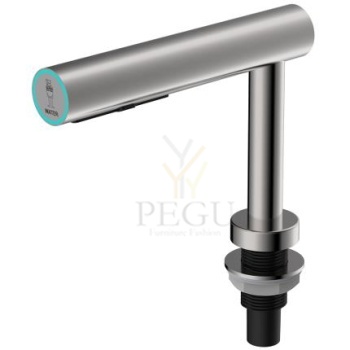

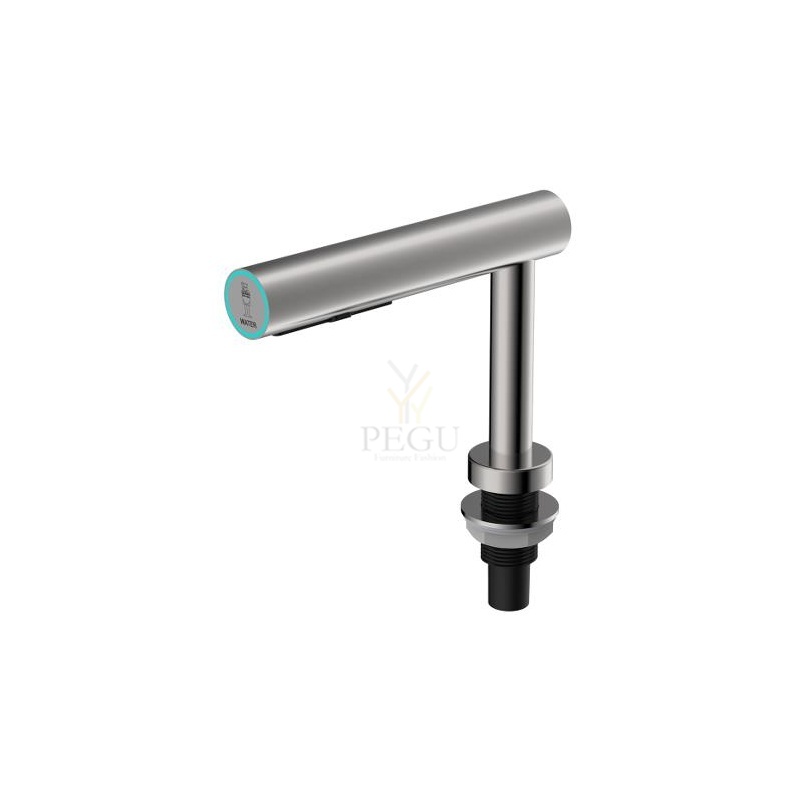

Кран для холодной или смешанной воды, бесконтактный WaterTap 382

Артикул: DAN388
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена:
896,70 €
Kuumakse alates: 76,51 €
Кол-во: - +



382-SOAPTAP WALL-MOUNTED FOR FOAM SOAP



The DAN DRYER SoapTap soap dispenser with automatic sensor for touch-free operation is a hygienic solution for all kinds of commercial washrooms. The dispenser features a minimalist, modern design and is an ideal build-in solution for automatic hand wash stations.

The soap dispenser is part of a complete product range, which also includes hand dryer and water faucet.

It is made in stainless steel with with satin finish, which makes it easy to clean. In addition, it requires very little maintenance.



PRODUCT DESCRIPTION

• Wall mounting

• For foam soap

• Capacity: 15 dl (1875-2500 doses).

• Power connection: AC (0,6V).

• Stainless steel with satin finish.

• Infra-red sensor and elektronic timer.

• 2-year warranty.











Файлы

Схожие продукты

Damixa dušiliftiga dušikomplekt Fair Jet Flex 3 positsioon kroom



Standardomadused:

Kummiaeraator - lihtne puhastada Veesäästu funktsioon Eco-Save Incl. Soap dish & Glider
3 pihustusviisi

Adjustable wall brackets

Артикул: D7667500 ,   Время доставки: 7 дней
145,00 €
Артикул: D7650400 ,   Время доставки: 7 дней
183,00 €

veesäästu funktsioon Eco-Save

5 pihustivõimalust

Kummiaeraator-lihtne puhastada

Артикул: D7655500 ,   Время доставки: 7-14 дней
63,00 €
Артикул: P52454 ,   Время доставки: 7-14 дней
957,70 €
Антивандалльная душевая пьезо кнопка Н/Р сталь, для смешанной воды,  без адаптора



AUS 11

Pressure button-controlled shower for heat regulated water










AUS 11 is a new type of shower fitting for single shower control. The fitting is designated for premixed water – with one water inlet and shower outlet elbow. Water is released and closed by an anti-vandal pressure button connected to electronics and an electromagnetic valve. The fitting is covered by a rust-free anti-vandal cover to prevent damage.

The mounting system has been designed so as to make removing the cover without using tools impossible with no bolt or screw being visible. The cover can be "pushed into" the wall level even if the mount box has been walled to an incorrect depth.

AUS 11 is identical to AUS 1P with a different design and very resistant cover sheet.

Electronics can work in two modes:

1) The button works on the START/STOP basis – water release/closing. If the water is not turned off upon the time adjusted by the user or manager (e.g. 20 seconds), the electronic system itself instructs water stopping. The user must press again to start water running. This significantly saves water as the user reduces the showering time.

2) The button works on the START/STOP basis. After the time adjusted by the manager (e.g. 3 minutes) expires there is a forced break when water cannot be released. During this time, the user is forced to leave the shower or wait. This prevents needless showering – water wasting.




Basic technical information
Water input: G 1/2“
Water pressure: 1 - 10 Bar (0,1 – 1,0 MPa)
Time of water flow: 10 s – 42,5 min in mode 1
  0 s - 42,5 min in mode 2
Power supply: 12 V, 50 Hz
Power requirement: 6 VA
Source of power supplz: ZAC 1/20 (max. 3× AUS 11)
  ZAC 1/50 (max. 8× AUS 11)
Weight: 2,0 kg


Requirements for setting up the construction
  1. Water installation set up as per picture
  2. Set-up alcove 150 x 75 mm for installation casket
  3. Set-up cable for power supply – 12 V, 50 Hz from source of power supply ZAC


Complete delivery
  • installation casket
  • input and output bolting
  • electromagnetic valve
  • spherical valve
  • covering metal plate with piezo button
  • electronics


Made to order
  • SP 1 – shower arm with water flow of 9 l/min
  • SP 2 – shower arm with water flow of 7 l/min
  • SP 3 – shower arm with water flow of 7 l/min
  • ZAC - source of power supply 12V, 50Hz


Figure


A - water inlet G 1/2"
C - electricity supply cable 12 V, 50 Hz
G - water outlet into shower armG 1/2"




Download information about the product
AUS 11 data for projectants - ( 84 kB )

Артикул: AZP-AUS 11 ,   Время доставки: 3-4 недели
375,00 €
