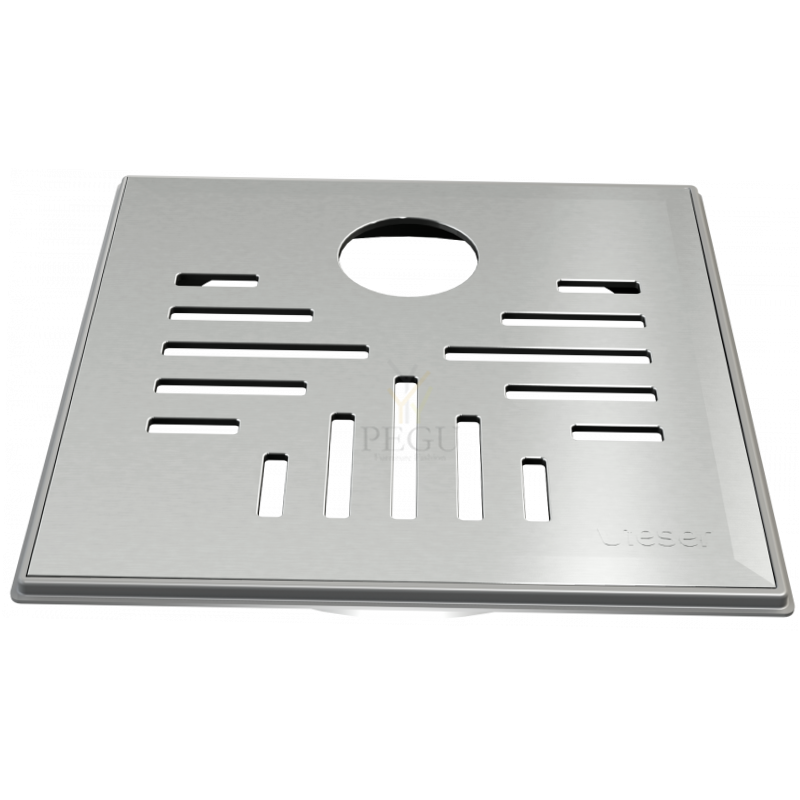

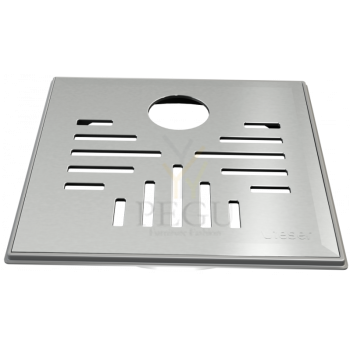

Крышка для трапа с пластиковой рамой 51256 Vieser Classic 160x160 mm +d32mm RST

VIESER ONE трап 75 3X32/40 боковой отвод

Vieser One floor drain DN75 3×32/40 (without support legs)

Suitable for sewerage systems for regular wastewater.

The Vieser One horizontal floor drain is part of the Vieser floor drain system. The floor drain can be used with a Vieser extension ring, waterproofing flange or grating. The drain includes three 32/40 mm side inlets that can be opened. The package package contains the floor drain, protective lid, a water trap, a seal, a clamping ring and a clamping ring installation tool.

Technical specifications

Vieser No.

52611

HVAC No.

7110408

Package (box/pallet)

17/136

Package dimensions

23 x 14,5 x 22 cm

Package weight

0,9 kg

Material

Polypropylene PP

Usage

Suitable for sewerage systems for regular wastewater.

Flow

1,6l/s

General information

The floor drain is compatible with Vieser extension rings, distance rings, waterproofing flange and grating system.

The drain includes three 32/40 mm side inlets that can be opened. The package contains the floor drain, a water trap, a seal, a clamping ring and a clamping ring installation tool.

Артикул: AKV52611 , Время доставки: 7-14 дней

36,60 €

Vieser One 52610 горизонтальный водяной трап 75

Vieser One 52610 Horisontaaltrapp 75

Vieser One floor drain DN75 (without support legs)

HVAC No. 315956

Suitable for sewerage systems for regular wastewater.

The Vieser One horizontal floor drain is part of the Vieser floor drain system.

The floor drain can be used with a Vieser extension rings, waterproofing flange or gratings.

The package package contains the floor drain, protective lid, a water trap, a seal, a clamping ring and a clamping ring installation tool.

Vieser One floor drain is compatible with Vieser design floor drains:

Артикул: AKV52610 , Время доставки: 3-7 дней

36,60 €

Крышка для трапа с регулируемой стальной рамой 51292 Vieser Classic+ 197x197 mm RST

Trapikaas reguleeritava terasraamiga AKV51292 Vieser Classic+ 197x197 mm

Roostevaba teras

Vieser Classic+ with adjustable steel frame 197×197

HVAC No. 3315955

NEW! AVAILABLE IN JUNE.
Floor drain grating made of durable, Finnish stainless steel.
A timeless and elegant redesign.

Type approved based on European standard
(EN 1253) – Withstands up to 300 kg, excellent flow properties
Strong and pleasant underfoot – remains firmly in place
Manufactured in Finland
Compatible with all Vieser floor drains
Adjustable steel frame – easy to install

The package includes the Vieser stainless steel Classic+ square grating and adjustable steel frame. To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm off-centre of the floor drain, for a total adjustment range of 30 mm.

Vieser’s drain and grating combination comes with a 10-year system guarantee.

Download a tiling example:

(PDF) Tiling example for Vieser round and square gratings

(DWG) Tiling example for Vieser round and square gratings

Technical specifications

Vieser No.

51292

HVAC No.

3315955

EAN

6418685512925

Package (box/pallet)

20/480

Package weight

0,6

Material

Stainless steel (AISI 304)

Durability

300 kg

Артикул: AKV51292 , Время доставки: 3-7 дней

73,20 €

Vieser регулируемая рама 51280 197x197 mm RST

Vieser reguleeritav terasraam 51280 197x197 mm RST

Roostevaba teras

Vieser adjustable stainless steel frame 197 x 197

HVAC No. 3316229

Adjustable stainless steel frame 197×197 mm
Suitable for use with all Vieser 197×197 mm stainless steel gratings
To make tilework installation easier, the frame can be adjusted max 15 mm toeach direction. The complete adjustment range is 30 mm
Professional’s choice

Vieser’s drain and cover combination comes with a 10-year system guarantee.

(PDF)Vieser round and square grating in tiled floor

(DWG)Vieser round and square grating in tiled floor

Technical specifications

Vieser No.

51280

HVAC No.

3316229

EAN

6418685512802

Package (box/pallet)

15/600

Package dimensions

22,5 x 1,5 x 22 cm

Package weight

0,165 kg

Material

Stainless steel (AISI 304)

Usage

To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm in any direction. The total adjustment range is 30 mm.

General information

The package contains an adjustable steel frame. To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm in any direction.

Артикул: AKV51280 , Время доставки: 3-7 дней

36,60 €

Vieser 6001178 DOT ⌀600mm - Tray база круглая RST

Vieser 6001178 DOT ⌀600mm - Tray renn ümmargune RST

Roostevaba teras

Vieser Dot ⌀600mm - Tray

HVAC No. 3315981

The Vieser Dot floor drain system consists of two separate parts: a tray and the chosen cover. In addition, the Vieser floor drain that is right for the floor drain system is sold separately.

Vieser Dot, with its innovative shape and size, represents a new kind of floor drain system that adds the finishing touch to your bathroom’s interior.

Compatibility with all Vieser One floor drains means that you can choose either a vertical, horizontal or untrapped floor drain, thereby also guaranteeing quick and easy installation.
With Vieser One drains, you can also make use of three DN32/40 side inlets for the floor drain to facilitate the placement of the drain and the installation of the pipeline.
Suitable for both new construction and renovations.
The watertightness and proper functioning of the floor drain have been proven in rigorous tests conducted according to the standard EN 1253-2, on which the Vieser One floor drain type approvals are also based. (Vieser One floor drain type approval)
The Vieser Dot floor drain system has a patented solution that enables entirely safe installation and a completely watertight membrane joint. The compatibility and watertightness of Vieser One floor drains and the liquid-applied waterproofing of wet spaces have been proven in tests conducted according to the standard EN 1253-1, on which Vieser’s product certificates are also based. (Vieser One and Vieser product certificate) & (Vieser One and Vieser product certificate when using the Vieser membrane flange)
Vieser Dot is a very user-friendly floor drain system. Compatibility with Vieser One floor drains offers the user an easy-to-remove water trap that is easy to clean and reinstall.

Vieser’s drain and cover combination comes with a 10-year system guarantee.

Артикул: AKV6001178 , Время доставки: 3-7 дней

866,20 €
