768663web.jpg Zoom

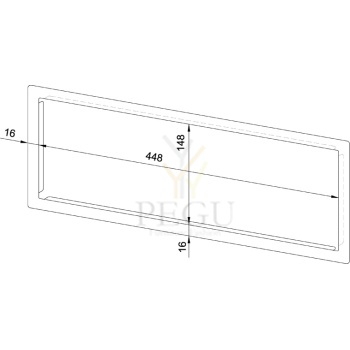

Лицевая рамка WP506 нержавеющая сталь сатин

Артикул: WAG-768663
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена: 85,40 €
81,13 €
Kuumakse alates: 6,92 €
Кол-во: - +

WP 506 COVERING FRAME 768663

for 448 x 148 mm



Файлы

Совместимые продукты

COMBINATION SOAP- AND PAPER TOWEL DISPENSER WP 506

448 x 148 x 164 mm
ca. 250 paper towels / 1000 ml soap tank

  • Combination consisting of a liquid soap dispenser and a paper towel dispenser in robust, germ-reducing and easy-care stainless steel (AISI 304).
  • All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed.
    Further available surfaces: see below.
  • Liquid soap dispenser with one-hand operated and non-drip soap pump with 1000 ml tank and pressure valve in brass.
  • Tank with large, lockable refill opening.
  • Designed for standard liquid soaps. Accessible for refilling through lockable, removable front panel with fall protection.
  • Paper towel dispenser with deep-drawn paper removal opening for easy paper removal.
  • Designed for approx. 250 standard paper towels in zigzag- or c-fold.
    Paper size (folded): 240-250 mm x 100-115 mm.
    Accessible for refilling through lockable front flap.
  • Keyed alike cylinder locks in corrosion-resistant zinc die-casting.
  • Wear parts and front panels can be replaced as modules.
  • Installation dimensions: 450 x 150 x 154 mm
  • Mounting: With four screws in wall opening through fixing holes in the side walls.
  • Delivery includes fixing material and one pack of paper towels.
  • Weight (in kg): 4,3
AVAILABLE SURFACESORDER NUMBERS
satin finished (standard) 727613
highly polished 731613
(coloured) plastic powder - coating 728613
Suggested text for specifications:

Combination consisting of a liquid soap dispenser and a paper towel dispenser in stainless steel (AISI 304) for flush mounting. All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed. Liquid soap dispenser with one-hand operated and non-drip soap pump with 1000 ml tank and pressure valve in brass. Designed for standard liquid soaps. Accessible for refilling through lockable, removable front panel with fall protection. Paper towel dispenser with deep-drawn paper removal opening, filling quantity approx. 250 paper towels. Accessible for refilling through lockable front flap. Keyed alike cylinder locks in corrosion-resistant zinc die-casting. Delivery includes fixing material and one pack of paper towels.

Dimensions: 448 x 148 x 164 mm

Article No. WP506
Артикул: WAG-WP506 ,   Время доставки: 14-21 день
567,91 € (5%)
597,80 €
