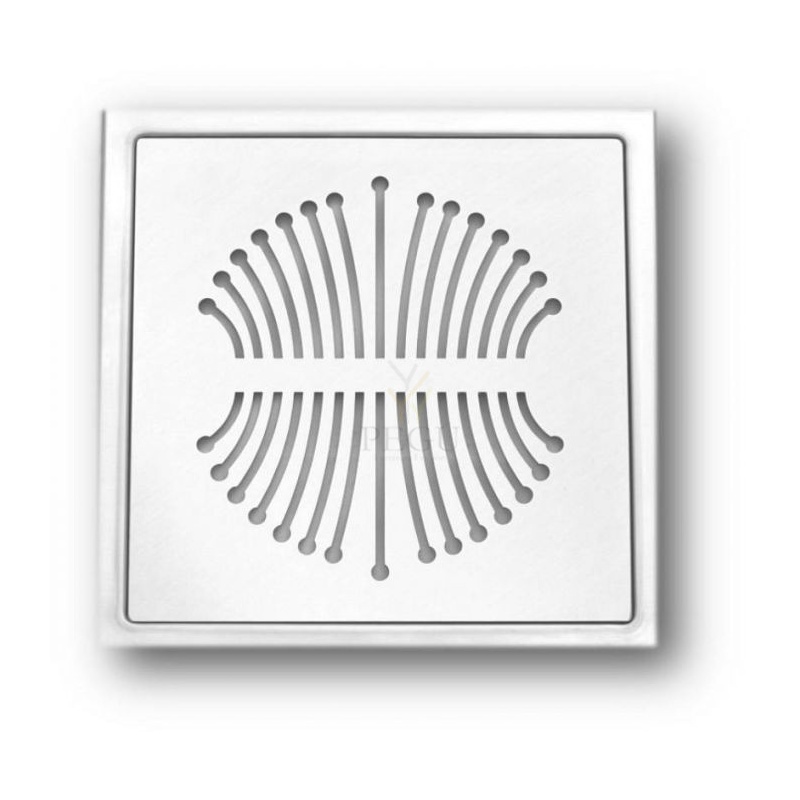

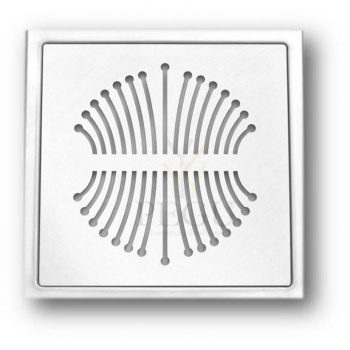

LVI disain нержавеющая крышка для трапа 197x197x4 HEINÄ

LVI disain нержавеющая крышка для трапа 197x197x4 TÄHKÄ антрацит

Kaunis design-lattiakaivon kansi. Kansi on valmistettu Suomessa. Tästä näyttävä yksityiskohta kylpyhuoneeseen, kansi toimii myös tarkoituksenmukaisena viemärikantena.

Kansi ja kehyslaatta ovat valmistettu 2 mm paksuisesta ruostumattomasta teräksestä. Kehyksen korkeutta lattialaatoihin nähden voidaan säätää kiinnityslaastin määrällä.

Kannen vesiaukot ovat aina alle 150mm alueella joten se soveltuu kaikkiin 150mm viemärikaivoihin.

Lattiakaivon kannen lisätiedot:

Valmistaja: LVI-Pörssi
Kehyksen ulkomitat: 197 x 197 mm
Korkeus 4 mm
Materiaali: ruostumaton teräs (AISI304)
Väri: Antrasiitti

Артикул: LVI3316976 , Время доставки: 14-21 день

55,92 €

Вертикальный трап VIESER 51125 50 mm

Vertikaalne trapp VIESER 51125 50 mm

Vieser vertical drain DN 50

HVAC No. 3312350

Suitable for sewerage systems for regular wastewater.

The Vieser vertical floor drain is part of the Vieser floor drain system.

The package contains Vieser vertical floor drain, a water trap, a protective lid, a clamping ring, a seal and a white plastic grating

The floor drain can be used with a Vieser extension rings, waterproofing flange or gratings.

Technical specifications

Vieser No.

51125

HVAC No.

3312350

EAN

6418685511256

Package (box/pallet)

8/192

Package dimensions

20 x 12 x 20 cm

Package weight

0,5 kg

Material

Polypropylene PP

Usage

Suitable for sewerage systems for regular wastewater.

Flow

1,3l/s

General information

The package contains Vieser vertical floor drain, a water trap, a protective lid, a clamping ring, a seal and a white plastic grating

Vieser vertical floor drain can be used with a Vieser extension ring, waterproofing flange or grating.

Артикул: AKV51125 , Время доставки: 3-7 дней

18,30 €

Vieser 51208 регулирующие кольцо с подводами 3x32 mm

Vieser 51208 Tõsterõngas külgavadega 3x32 mm

Vieser extension ring with side inlets 3x32mm

HVAC No. 3318452

Compatible with all Vieser floor drains. Installed below the waterproofing.

Raises the floor drain by 66–91 mm.

Three 32-mm side inlets can be connected to the extension ring.

The package contains the extension ring, a grey lip seal and a white clamping ring.

Technical specifications

Vieser No.

51208

HVAC No.

3318452

EAN

6418685512086

Package (box/pallet)

22/176

Package dimensions

20 x 10 x 20 cm

Package weight

0,3 kg

Material

Polypropylene PP

Usage

To be installed into Vieser floor drains below the waterproofing. Three 32-mm side inlets can be connected to the extension ring.

General information

An extension ring that raises the floor drain by 66-91mm. The package contains the extension ring, a grey lip seal and a white clamping ring.

Артикул: AKV51208 , Время доставки: 3-7 дней

18,30 €

Vieser 51183 регулирующее высоту кольцо 18mm

Vieser 51183 Tõsterõngas 18mm

Vieser low model extension ring 18 mm

HVAC No. 3318952

The package contains the extension ring, a white lip seal, a grey clamping ring and a white support ring.

Please note:

a grey clamping ring is included in the package. The grey clamping ring is meant to be used with this extension ring type only. A white clamping ring is supplied with all other Vieser extension rings and floor drains.

The white lip seal and grey clamping ring are meant to be used with a low extension ring only, and they are not compatible with other Vieser products.

A low extension ring must always be the uppermost extension ring and it cannot be extended with another extension ring.

Артикул: AKV51183 , Время доставки: 3-7 дней

35,58 €

Vieser регулируемая рама 51280 197x197 mm RST

Vieser reguleeritav terasraam 51280 197x197 mm RST

Roostevaba teras

Vieser adjustable stainless steel frame 197 x 197

HVAC No. 3316229

Adjustable stainless steel frame 197×197 mm
Suitable for use with all Vieser 197×197 mm stainless steel gratings
To make tilework installation easier, the frame can be adjusted max 15 mm toeach direction. The complete adjustment range is 30 mm
Professional’s choice

Vieser’s drain and cover combination comes with a 10-year system guarantee.

(PDF)Vieser round and square grating in tiled floor

(DWG)Vieser round and square grating in tiled floor

Technical specifications

Vieser No.

51280

HVAC No.

3316229

EAN

6418685512802

Package (box/pallet)

15/600

Package dimensions

22,5 x 1,5 x 22 cm

Package weight

0,165 kg

Material

Stainless steel (AISI 304)

Usage

To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm in any direction. The total adjustment range is 30 mm.

General information

The package contains an adjustable steel frame. To facilitate the installation of the tiling, the frame can be adjusted by a maximum of 15 mm in any direction.

Артикул: AKV51280 , Время доставки: 3-7 дней

36,60 €
