Настенная производственная мойка intra SK7030 732x532x300mm с переливом
Если вы нашли подходящий товар, просто нажмите В КОРЗИНУ, перейдите в КОРЗИНУ, выберите ЗАКАЗ, заполните данные и выберите способ доставки. Всё так просто – покупка всего в нескольких кликах!
Бренд:
Единица: шт
Время доставки: 7-14 дней
Продавец: PEGU OÜ
For orders from European Union countries, please send a price inquiry to our email. To calculate the shipping cost, please provide the address. For companies, include your VAT number.

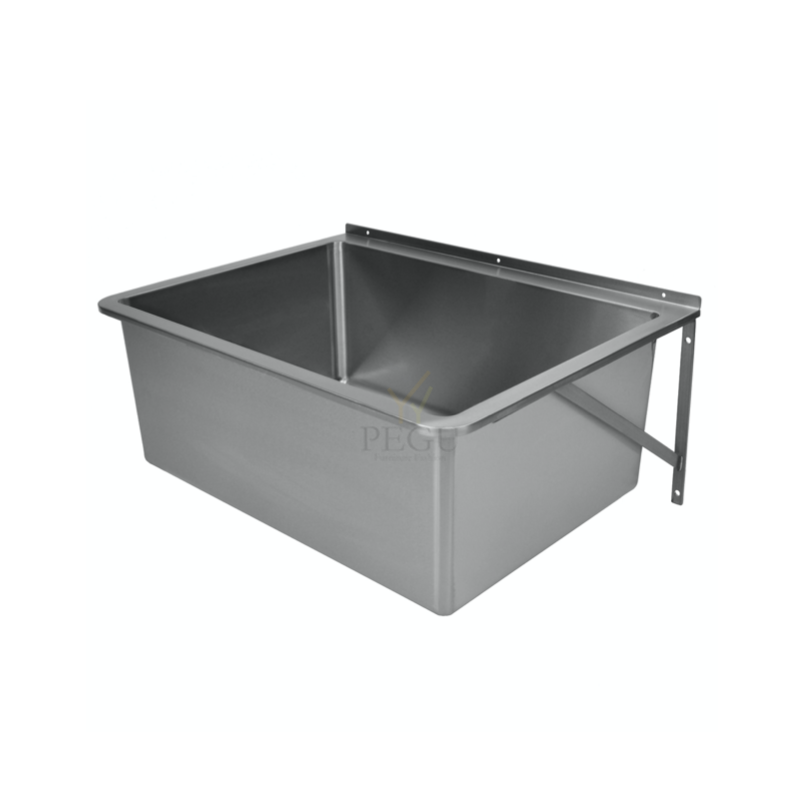

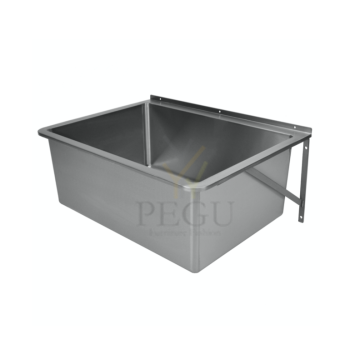

Настенная производственная мойка intra SK7030 732x532x300mm с переливом
Commercial bowl SK7030 in stainless steel.
Supplied with epoxy coated steel brackets and 1 1/2" waste and overflow
Питьевой фонтан Portinox FP-002 крепление к стене, до пола Н/Р сталь
768,60 €
500x490x300
R/V teras AISI 304
835,70 €
DESCRIPTION
1037,00 €
Питьевой фонтан настенный сенсорный Н/Р сталь AISI304 12V/50Hz
AFO 01.Yst. steel sensor controlled drinking fountain
AFO 01.Y is st. stainless wall hung drinking fountain controlled by sensor. Water runs after disrupting the scanning zone.
Fountain is made by welding all components together.
Fountain is suppplied with safety power 12 V, 50 Hz from power supply ZAC (AFO 01.Y) or with 4x AA battery (AFO 01.YB).
Material is standardly st. steel AISI 304 or can be AISI 316 (AFO 01.Y.CL or AFO 01.YB.CL).
St. steel driking fountain AFO 01.Y is based on favourite model AFO 01 with manual control.
The sensor, located on the right side of the fountain, is reacting on the approach of the user. Water starts to run from the nozzle, located in the middle of the fountain bowl, and runs over the time when the user´s head is in the scanning zone (max. 30 sec.) + preset time (max. 4 sec.) to clean the nozzle.
Package contents
- st. steel drinking fountain
- nozzle
- sensor and electronic
- electromagnetic valve
- connecting flexible hose
- corner valve with filters
- siphon
- mounting material
| water inlet | G 1/2" |
| water pressure | 1 - 10 Bar (AFO 01.Y; AFO 01.Y.CL) |
| 2 - 8 Bar (AFO 01.YB; AFO 01.YB.CL) | |
| outlet | d = 40 mm |
| bowl inner dimension | d = 245 mm |
| weigth | 4 kg |
| suppply | 12 V, 50 Hz (AFO 01.Y; AFO 01.Y.CL) |
| 6 V - 4 x AA battery (AFO 01.YB; AFO 01.YB.CL) | |
| power supply | ZAC 1/20 (max. 3 x AFO 01.Y ; AFO 01.Y.CL) |
Питьевой фонтан AFO04 настенный механический Н/Р сталь AISI304
AFO 04
suspension drinking fountain
AFO 04 is a stainless-steel drinking fountain of a modern design. It is manufactured with a double surface finish: matt bowl (blasted with ballotini) and brushed casing. Thanks to its interesting appearance, it particularly suits public spaces, such as sports facilities, parks, squares, business centres, fitness and wellness centres, but also schools and kindergartens.
Similarly to AFO 01, the drinking fountain is operated with a push valve. Water is flowing while the valve is pushed and for a preset time after its release, in which way the nozzle is rinsed.
The water inlet is through a flexible hose; siphon trap is made of a flexible coupling. The flexible design of the water inlet and outlet enables variable and trouble-free connection of the fountain as well as its simple dismounting.
The AFO 04 drinking fountain is made from stainless steel of the AISI 304 class; the AFO 04.CL drinking fountain is made from steel of the AISI 316 class.
Package contents
- stainless steel casing
- press valve
- corner valve with filter
- fixing bar
- siphon
- connecting hose
- anchoring material
| Water inlet | G 1/2" |
| Water pressure | 2 - 6 Bar (recommended 3 Bar) |
| Outlet | d = 40 mm |
| Inner dimension of the fountain | d = 245 mm |
| Weight | 4 kg |
- Set-up water inlet - pipe G1/2“.
- Set-up drainage d = 40 mm.
