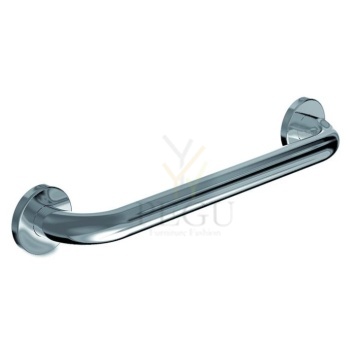

Normbau Inox Care инвалидная ручка настенная 2053040 L=400mm
Бренд:
Единица: шт
Время доставки: 4-5 недель
Продавец: PEGU OÜ
Откройте для себя широкий ассортимент качественной сантехники и аксессуаров на PEGU.EE, включая мусорные баки, сушилки для рук, душевые стойки, моечные раковины, лабораторные раковины и аварийные души. Добавьте подходящие товары в корзину и используйте код купона PEGU-LUMI для получения специальных цен! Промокод действует на товары, которые не участвуют в других акциях.
Normbau Inox Care инвалидная ручка настенная 2053040 L=400mm
Normbau Inox Care inva käepide 2053040 L = 400mm
Inox Care Grab bar/Towel holder 2053040, c/c = 400mm
c/c = 400mm,
made of stainless steel, material No. 1.4301 (A2, AISI 304), 32mm dia., brushed finish, 70mm dia., steel cored roses, concealed fixing. Rose inners with compensation of wall diff erences.
Maximum loading permitted: 175 kgs.
Supplied with 6mm dia x 70mm stainless Torx screws and plugs for solid masonry.
медь, под сталь
39,00 €
Technical specifications
Dimensions 825 x 807 x 100 mm
Bar and leg diameter Wall plate thickness Ø 32 mm 3,0 mm
Paper roll dispenser diameter Ø 10 mm
205,00 €
General description
-
Wall to wall grab bar with three support points, made of diameter 32 mm AISI 304 stainless steel tube, to be installed in the washbasins and toilets.
-
With snap flange covers to conceal the screws, helping to achieve a beautiful and sleek look and protecting the flange surfaces from damage, dust, moisture and foreign particles.
-
Ideal to design barrier-free accessibility, both domestic and commercial places, these grab bars help make the lives easier for the handicapped and elderly people.
-
Highest durability and rusting resistance.
-
Optionally, these bars can be electrically isolated by installing the electrical isolation Kit code KA0020.
-
These grab bars are supplied with a kit to fix the bar to a brick wall.
Components and materials
-
BFD600C: grab bar right hand, made of diameter 32 mm AISI 304 stainless steel tube, bright finish.
-
BFI600C: grab bar left hand, made of diameter 32 mm AISI 304 stainless steel tube, bright finish.
-
BFD600CS: grab bar right hand, made of diameter 32 mm AISI 304 stainless steel tube, satin finish.
-
BFI600CS: grab bar left hand, made of diameter 32 mm AISI 304 stainless steel tube, satin finish.
-
TUBING: made of 32 mm diameter tube, seamless construction. The bending process guarantees the uniformity of the diameter along the bends.
-
CONCEALED MOUNTING FLANGE: three units made of AISI 304 stainless steel, 3 mm thick. Incorporates two Ø 6.5 mm screws holes for wall mounting.
-
SNAP FLANGE COVER: three units made of stainless steel AISI 304, 0.8 mm thick and Ø 82 mm. Each cover snaps over mounting flange to conceal mounting screws.
189,00 €
Be-Line drop-down support rail with leg, L. 850mm, anthracite
Ref. 511963C
Be-Line drop-down support rail for people with reduced mobility.
In the lowered position use as a grab bar, as a support for standingand for assisting movement, for WCs or showers.
Allows side access in the raised position.
Removable: easy to remove with anti-theft locking system. Reduces the number of barsin a facility, allowing installation only when required.
Example: hotels or hospitals providing short-term accommodation for people with reduced mobility.
Retained in upright position. Slowed down descent.
Aluminium tube.
Rounded profile Ø 42mm with ergonomic flat front face that prevents rotation for an optimal grip.
Metallised anthracite powder-coated aluminium finish provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
Concealed fixings secured to wall by a 304 stainless steel plate, 5mm thick.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Leg provides additional reinforcement when wall fixings are not enough.
Dimensions: 850 x 825 x 120mm.
Leg height can be adjusted from 760 - 780mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.
TECHNICAL FEATURES
Be-Line drop-down support rail with leg, L. 850mm, anthracite
Ref. 511963C
| Height | 210mm |
|---|---|
| Length | 850mm |
| Width | 120mm |
| Finish | Powder-coated metallised anthracite aluminium |
628,00 €
Cover plate for Be-Line drop-down rail with fixings plate
Ref. 511950FC
Be-Line metallised anthracite cover plate with fixings plate.
Conceals fixing screws when the drop-down support rail is removed.
Reduces the number of drop-down rails in a facility, allowing installation only when required.
Example: hotels or hospitals providing short-term accommodation for people with reduced mobility.
Supplied with stainless steel screws for concrete walls.
TECHNICAL FEATURES
Cover plate for Be-Line drop-down rail with fixings plate
Ref. 511950FC
| Height | 230mm |
|---|---|
| Depth | 17mm |
| Width | 105mm |
| Finish | Metallised anthracite |
141,00 €
