298 x 1348 x 120 mm
ca. 250 paper towels / sensor with 950 ml soap bottle / 11 l

• Combination consisting of a sensor liquid soap dispenser, paper towel dispenser and
  a waste bin in robust, germ-reducing and easy-care stainless steel (AISI 304).
• All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed.
  Further available surfaces: see below.
• Sensor liquid soap dispenser with EWAR® eModule touch-free operated soap pump.
• Designed for standard 950 ml disposable bottles of liquid soap or hand lotion.
• Also refillable with large container using the plug-in tank as an option.
• Paper towel dispenser with deep-drawn paper removal opening for easy paper removal.
• Designed for approx. 250 standard paper towels in zigzag fold.
  Paper size (folded): 240-250 mm x 100-115 mm.
• Inspection slots to indicate fill level.
• Accessible for refilling through lockable front flap with fall protection.
• Waste bin equipped with removable mesh basket.
  Capacity approx. 11 l. Accessible through lockable door with self-closing, flame-retardant disposal flap.
• Keyed alike cylinder locks in corrosion-resistant zinc die-casting.
• eModule battery-powered with two 1.5 V Baby/LR14 batteries.
  Power supply available as an option.
• Wear parts and front panels can be replaced as modules.
• Installation dimensions: 300 x 1350 x 110 mm
• Mounting: With eight screws in wall opening through fixing holes in the side walls.
• Delivery includes fixing material, batteries, first fill with soap and one pack of paper towels.

• Weight (in kg): 15,8

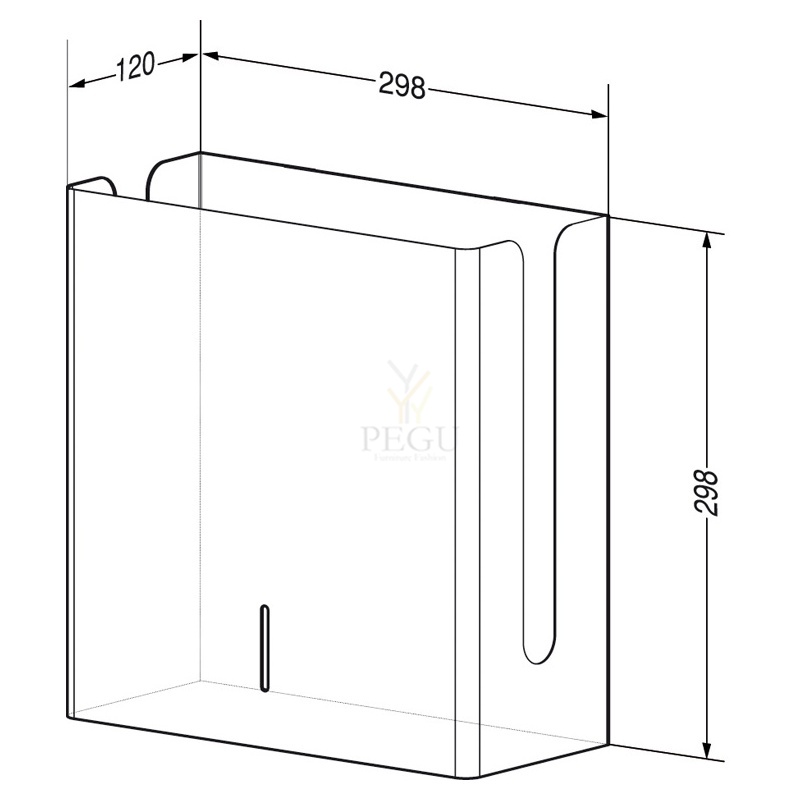

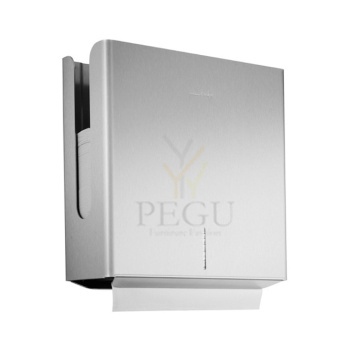

400 x 298 x 120 mm
ca. 500 paper towels / 500 ml soap bottle

• Combination consisting of a liquid soap dispenser and a paper towel dispenser in robust, germ-reducing and easy-care stainless steel (AISI 304).
• All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed.
  Further available surfaces: see below.
• Liquid soap dispenser with one-hand operated and non-drip soap pump.
• Designed for standard 500 ml disposable bottles of liquid soap or hand lotion.
• Paper towel dispenser with deep-drawn paper removal opening for easy paper removal.
• Designed for approx. 500 standard paper towels in zigzag fold. Paper size (folded): 240-250 mm x 100-115 mm.
• Inspection slots to indicate fill level.
• Accessible for refilling through lockable front flap with fall protection.
• Keyed alike cylinder lock in corrosion-resistant zinc die-casting.
• Wear parts can be replaced as modules.
• Mounting: With four screws through key holes and one optional anti-theft hole in the back wall.
• Delivery includes fixing material, first fill with soap and one pack of paper towels.

• Weight (in kg): 4,4

350 x 580 x 210 mm
1 paper roll + 1 reserve roll

• Sensor paper roll dispenser with cabinet for reserve roll, mains-operated, in robust, germ-reducing and easy-care stainless steel (AISI 304).
• All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed with tapered glossy surface at the bottom.
  Further available surfaces: see below.
• With touch-free operated, capacitive sensor technology, sensor distance approx. 3.5 cm. Paper length and idle time adjustable.
  Mains-operated 230 V / 50 Hz; power rating 7 Watt; mains cable on site. TÜV/GS-tested and certified.
• Designed for one paper roll and one reserve roll with dimensions: Width 215 mm, outer diameter max. 180 mm, inner diameter 50 mm.
• Inspection slot to indicate fill level, residual roll function allows a reserve roll to be inserted before residual roll is completely used up.
• Accessible for refilling through lockable door.
• Keyed alike cylinder lock in corrosion-resistant zinc die-casting.
• Wear parts can be replaced as modules.
• Mounting: With four screws through key holes in the back wall.
• Delivery includes fixing material and first fill with one paper roll.

• Weight (in kg): 12,4

448 x 148 x 164 mm
ca. 250 paper towels / 1000 ml soap tank

• Combination consisting of a liquid soap dispenser and a paper towel dispenser in robust, germ-reducing and easy-care stainless steel (AISI 304).
• All-stainless steel housing; all corners fully welded, visible surfaces satin finished and brushed.
  Further available surfaces: see below.
• Liquid soap dispenser with one-hand operated and non-drip soap pump with 1000 ml tank and pressure valve in brass.
• Tank with large, lockable refill opening.
• Designed for standard liquid soaps. Accessible for refilling through lockable, removable front panel with fall protection.
• Paper towel dispenser with deep-drawn paper removal opening for easy paper removal.
• Designed for approx. 250 standard paper towels in zigzag- or c-fold.
  Paper size (folded): 240-250 mm x 100-115 mm.
  Accessible for refilling through lockable front flap.
• Keyed alike cylinder locks in corrosion-resistant zinc die-casting.
• Wear parts and front panels can be replaced as modules.
• Installation dimensions: 450 x 150 x 154 mm
• Mounting: With four screws in wall opening through fixing holes in the side walls.
• Delivery includes fixing material and one pack of paper towels.

• Weight (in kg): 4,3
