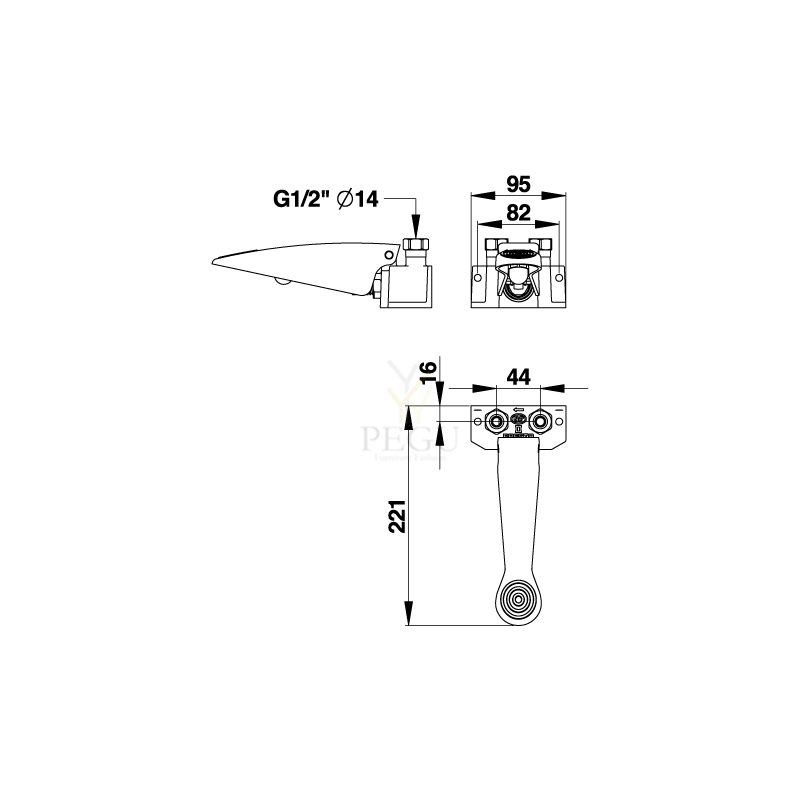

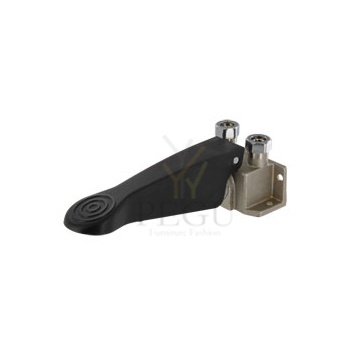

Педальный вентиль, кран для холодной/смешанной воды SOL520

Артикул: P23614
Бренд:
Единица: шт
Время доставки: 7-14 дней
Цена: 228,00 €
216,60 €
Kuumakse alates: 18,41 €
Кол-во: - +
   - или -

> Working pressure : 1 to 5 bar

> Flow : 6 l/min at 3 bar - 4-position flow adjustment device Anti-water-hammering design

> Flow time : 3 to 5 seconds

> Operation : Foot-operated activation through pedal

> Hydraulic supply : Inlet M G 1/2"(15x21) - Cold or premixed water

> Material and colour finish : Brass body and components with molded chrome treatment Technical polymer

> Thermal resistance : Resistant to a temperature of 75°C for 30-minute-thermal-shocks

> Delivered with : 1 Gasket nut 1 Coupling nut 1 Nut for 12x14mm tube Instruction manual

> Standards & approvals : Acoustic class II Brass body in accordance with EN 1982, EN 12164, EN 12165 Molded chrome-plated body in accordance with EN 12540 200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227

Файлы

Схожие продукты

Отделитель гипса GIPS-01, 9L, Н/Р сталь, AISI 304

Overall dimension in mm Ø300 x 382 Inlet dimension in mm 1.5" Outlet dimension in mm 1.5" Material AISI 304 Material thickness in mm 1.5 Gross weight in kg 7.70

Артикул: EL255-GIPS-01 ,   Время доставки: 3-4 недели
1288,00 €

Сердечник

ALPA

Presto

чёрная кнопка

30 sek. töötsükkel 3 bar



Артикул: P01015 ,   Время доставки: 7 дней
247,00 € (5%)
260,00 €

TEMPOMIX shower kit
Ref. 790912

Recessed time flow shower kit:
Standard recessing housing. Recessing depth can be adjusted.
Chrome-plated wall plate Ø 195mm.Recessing depth can be adjusted from 28 - 43mm.
TEMPOMIX 3/4" single control mixer.
Ligature-resistant collar.
Temperature control and operation via the push-button.
Maximum temperature limiter (can be adjusted by the installer).
Time flow ~30 seconds, soft-touch operation.
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof TONIC JET shower head with scale-resistant nozzle and automatic flow rate regulation.
M1/2" connectors for copper tubes Ø 14mm.
Integrated non-return valves and filters.
Chrome-plated metal control.
10-year warranty.

This model does not have a waterproof recessing box. The installer must ensure that the recessing area is waterproof and any leaks or condensates can drain away (see installation guide).



TECHNICAL FEATURES

TEMPOMIX shower kit
Ref. 790912

Connector 1/2"
Technology Time flow
Flow rate 6 lpm
Артикул: DE-790912 ,   Время доставки: 14 дней
603,90 € (10%)
671,00 €

Новый товар 790219+790BOX

DESCRIPTION

TEMPOMIX 3 shower kit
Ref. 794BOX1-794219

Recessed time flow shower mixer with soft-touch operation:
Tamperproof chrome-plated metal wall plate 160 x 160mm.
Waterproof recessing housing:
- Collar with waterproof seal.
- Hydraulic connection from the exterior and maintenance from the front.
- Top inlet.
- Adjusts to all types of installation (rails, solid walls, panels).
- Compatible with wall finishes 10 - 120mm (while maintaining the minimum recessing depth of 93mm).
- Suitable for standard pipe supply or "pipe in pipe".
- Stopcocks and flow rate adjustment, filters, non-return valves and cartridge are integrated and can be accessed from the front.
- TEMPOMIX 3 single control mixer F½".
-Supplied in 2 kits: secure system flush without sensitive elements.
Temperature control and operation via the push-button.
Maximum temperature limiter (can be adjusted by installer).
Time flow ~30 seconds, can be adjusted.
Soft-touch operation.
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation.

Артикул: DE-794BOX1+794219 ,   Время доставки: 14 -21 день
766,80 € (10%)
852,00 €
