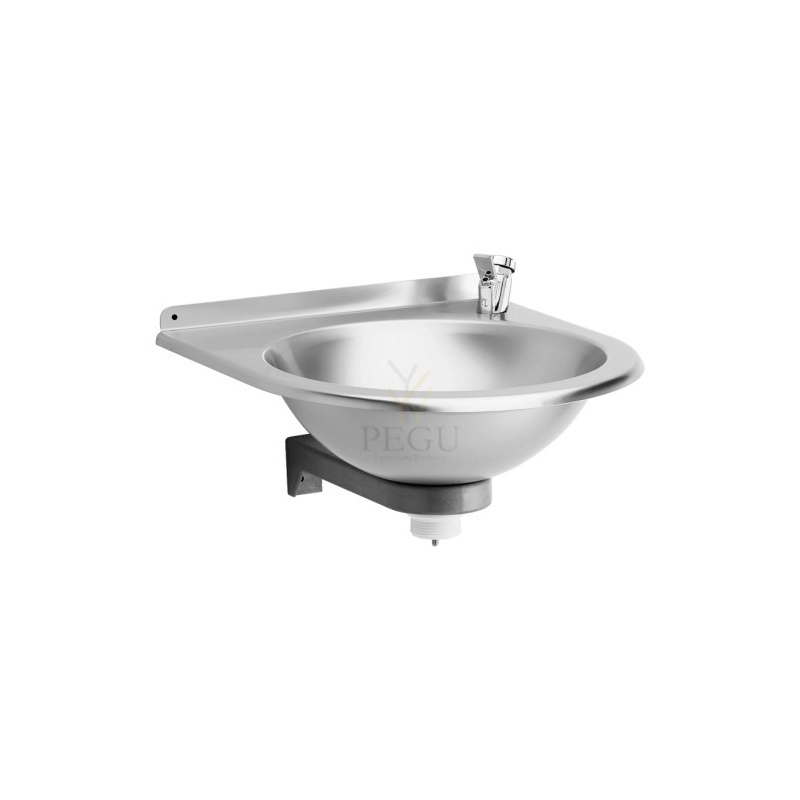

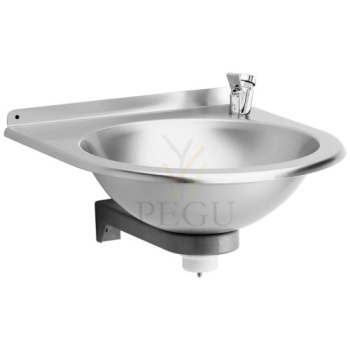

Питьевой фонтан настенный Н/Р сталь Intra Endura ED2
Drinking fountain in stainless steel 18/10 for wall mounting. Supplied with supporting bracket, grated waste, wall panel and water bubbler.
Файлы
Антивандальный унитаз INVA Н/Р сталь
AUZ 08 INV is a stainless-steel WC in matt design for the disabled. It is a stainless-steel toilet to stand on the floor at the wall. The drain is directed backwards (the bottom drain version AUZ 02 INV). The closet is based on the standard AUZ 08, which is heightened and lengthened to fulfil the directive regarding products for disabled persons. To increase the user comfort, the seating part is provided with a seat from hardened plastic. The closet includes a removable backrest recommended by the League for the rights of the wheelchair bound.
The standing WC is suitable for places where the common closet cannot be attached to the side wall, because of a thin bearing particle, for example.
It is suitable to supplement the closet with an automatic pressure-water flushing device with delayed flushing AUZ 3 INV (suitable for the disabled) or any flushing device with a cistern.
|
Complete delivery | |
|
TECHNICAL FEATURES
LISO urinal divider for wall-mounting
Ref. 100590
Height | 700mm |
---|---|
Length | 25/50mm |
Width | 350mm |
Thickness | 1.5mm |
Finish | 304 polished satin stainless steel |
Valamu R/V terasest
Garaazi/koristusruumi jaoks
Сливной механизм для писсуара инфра-красный датчик монтажная коробка, с встроенным элементом питания 230V/AC
SLP 02NZ
Urinal infra-red flushing unit with a mounting box and integrated power supply, 230 V AC
Characteristics
- system reacts to the user attendance in front of the urinal at a maximum distance of 0,7 m, minimum stay time in active range is 7,5 s
- water flows after the user leaves active range
- adjustable flushing time 0,5 - 15,5 s
- parameters adjustment by remote control SLD 03
- automatic hygiene flushing after 24 hours non-use
- possibility to regulate a water flow by the ball valve
Order number | 42023 |
Code | SLP 02NZ |
Supply specification
Technical information
Mounting box dimension: 140 x 140 x 75 mm
Operating voltage: 230 V AC/50 Hz
Active range: 0,6 - 0,75 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 3/4“
Water outlet: male thread G 3/4“
R/V teras WC pott ja valamu
AISI304 paksus 1,5 mm
Kinnitus poltidega läbi seina
Loputus ühendus 1"
WC äravool 100mm
Valamu ärravool 32mm
NB! Vee mehhanismid on vaja tellida eraldi
