Откройте для себя широкий ассортимент качественной сантехники и аксессуаров на PEGU.EE, включая мусорные баки, сушилки для рук, душевые стойки, моечные раковины, лабораторные раковины и аварийные души. Добавьте подходящие товары в корзину и используйте код купона PEGU-LUMI для получения специальных цен! Промокод действует на товары, которые не участвуют в других акциях.

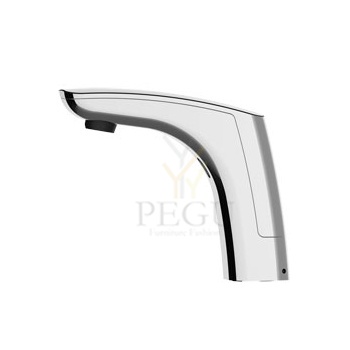

> Working pressure : 1 to 5 bar
> Flow : 1.9 l/min with integrated flow limiter High quality anti-limescale aerator Anti-water-hammering design
> Hydraulic supply : G 3/8" (12x17) - Cold or premixed water > Power supply : 230 VAC / 7 VDC transformer in IP65 waterproof case
> Material and colour finish : Injected molded metal body and cover Chrome finishing
> Thermal resistance : Resistant to a temperature of 75°C for 30-minute-thermal-shocks
> Security : Anti-overflow security time: 30 seconds Anti-blocking system preventing the water to flow continuously
> Delivered with : 1 Brass clamping nut 1 Gasket and 1 Washer 1 Hose with revolving nut 1 Stop valve MM G 3/8" (12x17) 1 Filter gasket 1 Self-adhesive sticker Instruction manual
> Standards & approvals : Brass body in accordance with NF EN1982, EN12164, NF EN 12165 200-hour neutral salt spray resistant (NSS) in accordance with NF ISO 9227
• Winner of a Red Dot Design Award!
• Holds approx. 9,5 dl liquid soap (= 800-950 doses).
• Battery-operated. Connection to power supply via a transformer.
• An intelligent sensor automatically sets the best sensor range.
• LED light indicates when dispenser is in use.
• Available in all RAL colours.
• Comes in trendy matt black and classic white as standard.
• Also available coated with different prints.
• Top plate in 6 optional standard designs.
• 2-year warranty.
| SPECIFICATIONS | |
|---|---|
| Product number: | 3052 / EAN no. 5-709818-030524 |
| Technical data: |
Touch-free soap dispenser for liquid soap/disinfectant. Steel housing painted in optional RAL colour. Equipped with top plate. Capacity: 9,5 dl. Battery-operated.
|
| Dimensions | H: 330 mm, W: 139 mm, D: 127 mm |
| Net Weight: | 2.3 kg |
Urinal Caprino with a radar flushing unit and integrated power supply, 230 V AC
| Order number | 01235 |
| Code | SLP 23RZ |
Urinal Alessi with a radar flushing unit, 24 V DC
| Order number | 01254 |
| Code | SLP 25R |
Urinal Caprino Plus with a radar flushing unit and integrated power supply, 230 V AC
| Order number | 01495 |
| Code | SLP 49RZ |
AFO 01.Y is st. stainless wall hung drinking fountain controlled by sensor. Water runs after disrupting the scanning zone.
Fountain is made by welding all components together.
Fountain is suppplied with safety power 12 V, 50 Hz from power supply ZAC (AFO 01.Y) or with 4x AA battery (AFO 01.YB).
Material is standardly st. steel AISI 304 or can be AISI 316 (AFO 01.Y.CL or AFO 01.YB.CL).
St. steel driking fountain AFO 01.Y is based on favourite model AFO 01 with manual control.
The sensor, located on the right side of the fountain, is reacting on the approach of the user. Water starts to run from the nozzle, located in the middle of the fountain bowl, and runs over the time when the user´s head is in the scanning zone (max. 30 sec.) + preset time (max. 4 sec.) to clean the nozzle.
| water inlet | G 1/2" |
| water pressure | 1 - 10 Bar (AFO 01.Y; AFO 01.Y.CL) |
| 2 - 8 Bar (AFO 01.YB; AFO 01.YB.CL) | |
| outlet | d = 40 mm |
| bowl inner dimension | d = 245 mm |
| weigth | 4 kg |
| suppply | 12 V, 50 Hz (AFO 01.Y; AFO 01.Y.CL) |
| 6 V - 4 x AA battery (AFO 01.YB; AFO 01.YB.CL) | |
| power supply | ZAC 1/20 (max. 3 x AFO 01.Y ; AFO 01.Y.CL) |
