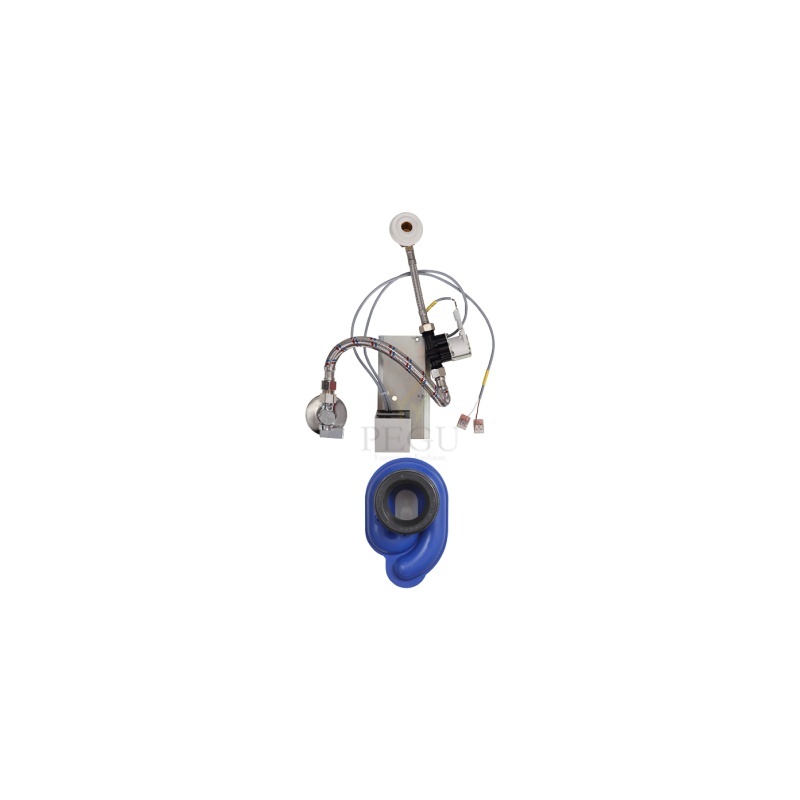

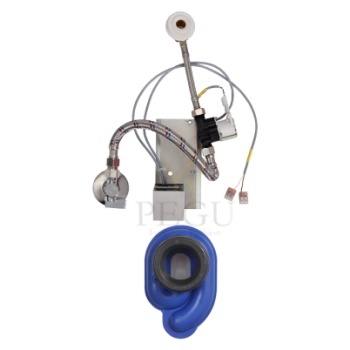

Радарное устройство смыва для писсуара Nova, Renova, Nova Top, 24 V DC

Артикул: SA-SLP07S
Бренд:
Единица: шт
Время доставки: 14-21 день
Цена: 628,00 €
565,20 €
Kuumakse alates: 48,26 €
Кол-во: - +
   - или -

Радарное устройство смыва для писсуара Nova, Renova, Nova Top, 24 V DC

SLP 07S



Radar flushing unit on the mounting rail, 24 V DC



Characteristics

  • radar flushing unit for urinals NOVA PRO FELIX 26 000; RENOVA Nr. 1 235 300; NOVA PRO ALEX 66 000; NOVA PRO M36 000; RENOVA Nr. 1 PLAN 235 100 (Kolo)
  • economy flushing by 1 liter of water
  • easy installation by the help of paper drill template
  • whole flushing unit is placed behind the urinal
  • system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
  • adjustable flushing time 0,5 - 15,5 s
  • parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
  • automatic flushing after each 6 hours non-use
  • possibility to regulate a water flow by the angle valve
  • radar flushing unit recharges a water to the siphon after each flushing
Order number 11071
Code SLP 07S


Supply specification

SLP 07S - Supply No. 11071 - radar flushing unit on the mounting rail, electromagnetic valve, connecting hoses, angle valve with filter and check valve, inlet fitting with a rubber sealling, siphon, paper drill template

Technical information

Operating voltage: 24 V DC
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 1/2“
Water outlet: inlet fitting with a rubber sealing

Видео



Совместимые продукты

Адаптер 220/24V DC 1-2 смесителя, 1-3 писсуара

Dimensions: cca 140 x 100 x 62 mm
Input voltage: 230V AC/50Hz
Output voltage: stabilized 24V DC
IP code: IP 55
Automatic washbasin taps and shower controls supply: 2 valves max.
Automatic urinal flushing units supply: 5 valves max.
Automatic toilet flushing unit supply: 4 valves max.Dimensions: cca 140 x 100 x 62 mm
Input voltage: 230V AC/50Hz
Output voltage: stabilized 24V DC
IP code: IP 55
Automatic washbasin taps and shower controls supply: 2 valves max.
Automatic urinal flushing units supply: 5 valves max.
Automatic toilet flushing unit supply: 4 valves max.

Артикул: SA-SLZ01Y ,   Время доставки: 14 дней
129,00 €
