Радарное устройство смыва для писсуара Nova, Renova, Nova Top 9 V
Бренд:
Единица: шт
Время доставки: 14-21 день
Обязательно указать в спецификации проекта : PEGU OÜ

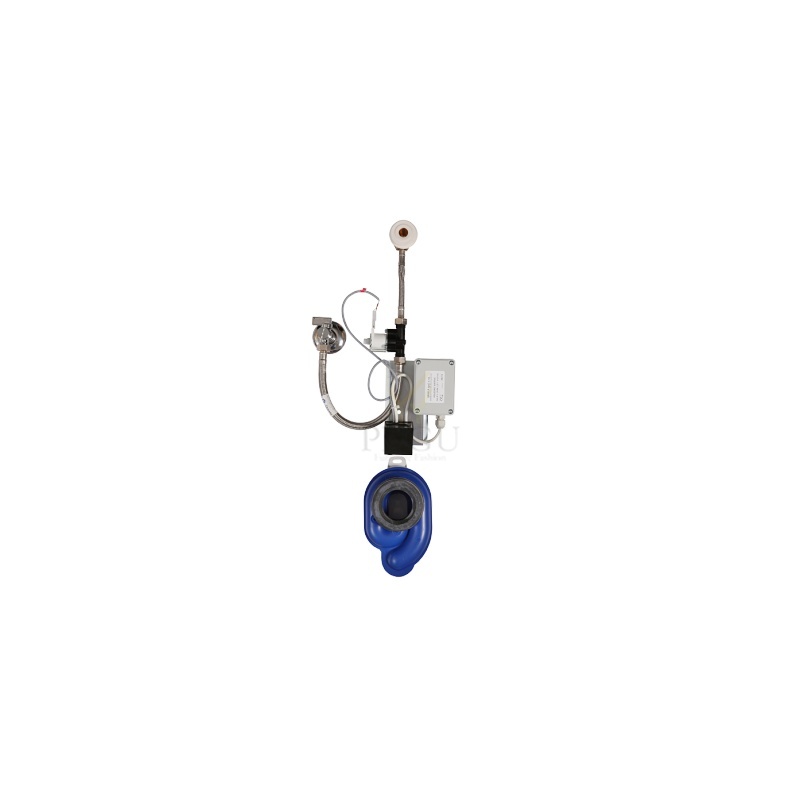

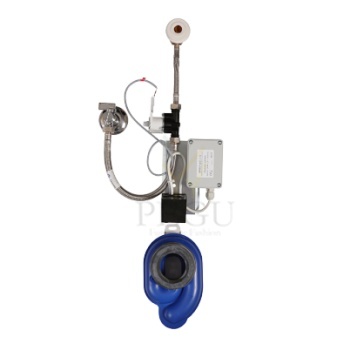

Радарное устройство смыва для писсуара Nova, Renova, Nova Top 9 V
SLP 07B
Radar flushing unit on the mounting rail, 6 V
Characteristics
- radar flushing unit for urinals NOVA PRO FELIX 26 000; RENOVA Nr. 1 235 300; NOVA PRO ALEX 66 000; NOVA PRO M36 000; RENOVA Nr. 1 PLAN 235 100 (Kolo)
- economy flushing by 1 liter of water
- easy installation by the help of paper drill template
- whole flushing unit is placed behind the urinal
- system reacts only on the direct use of the urinal (it analyses changes, which are proceeded inside of the urinal, when a liquid is flowing through)
- adjustable flushing time 0,5 - 15,5 s
- parameters adjustment by remote control SLD 04 without the necessity to dismantle the urinal from the wall (acoustic setting indication)
- automatic flushing after each 6 hours non-use
- possibility to regulate a water flow by the angle valve
- radar flushing unit recharges a water to the siphon after each flushing
| Code | SLP 07B |
| Order number | 11076 |
Supply specification
Technical information
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 1/2“
Water outlet: inlet fitting with a rubber sealing
Видео
230,00 €
Смывной механизм для писсуара с сенсорным управлением с монтажной коробкой, 24 V DC
SLP 02K
Urinal infra-red flushing unit with a mounting box, 24 V DC
Characteristics
- system reacts to the user attendance in front of the urinal at a maximum distance of 0,7 m, minimum stay time in active range is 7,5 s
- water flows after the user leaves active range
- adjustable flushing time 0,5 - 15,5 s
- parameters adjustment by remote control SLD 03
- automatic hygiene flushing after 24 hours non-use
- possibility to regulate a water flow by the ball valve
| Order number | 01022 |
| Code | SLP 02K |
Supply specification
Technical information
Mounting box dimension:140 x 140 x 75 mm
Operating voltage: 24 V DC
Active range: 0,6 - 0,75 m
Recommended flow pressure: 0,1 - 0,6 MPa
Rate of flow: 18 l/min (inf. data)
Water inlet: male thread G 3/4“
Water outlet: male thread G 3/4“
355,00 €
> Working pressure :
1 to 5 bar
> Flow :
5 l/min at 1 to 10 bar - 4-position flow adjustment device Anti-water-hammering design
> Flow time :
6 seconds (± 2 sec.)
> Hydraulic supply :
In-line water inlet
M G 1/2" Inlet and outlet
> Material and colour finish :
160x160 stainless steel vandal proof front, brushed finish
> Delivered with :
1 Flush-mounting case
1 Vandal-proof rose 160x160 (Brushed stainless steel) 1 Stop valve MF G 1/2" (15x21)
1 Douille lisse MF G 1/2" (15x21)
Instruction manual
> Standards & approvals :
Brass body in accordance with EN 1982, EN 12164, EN 12165
Molded chrome-plated body in accordance with EN 12540
200-hour neutral salt spray resistant (NSS) in accordance with ISO 9227
LP trough urinal
Ref. 130320
Floor-standing trough urinal.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Rear water inlet.
Central drainage.
Supplied with 3 stainless steel rinsers and 3 flexible hoses.
Water saving: optimal rinsing with 0.1 L/sec. per service i.e. 0.3L per use.
Waste outlet 1½". Supplied with waste and integrated trap (ref. 785000).
Easy to install and maintain thanks to access panels with theft prevention TORX security screws.
Weight: 33.5kg.
TECHNICAL FEATURES
LP trough urinal
Ref. 130320
| Height | 1020mm |
|---|---|
| Length | 300mm |
| Width | 1800mm |
| Thickness | 1.2mm |
| Finish | Polished satin 304 stainless steel |
