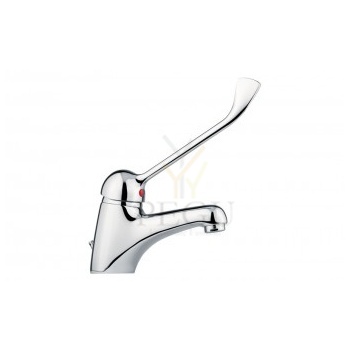

Смеситель на инвалидную раковину, длинная ручка
Смеситель на инвалидную раковину, длинная ручка
Segisti valamule , pika kangiga
kroom
Файлы
Delabie WC INVA Monobloco 700 Н/Р сталь
DESCRIPTION
MONOBLOCO 700 PMR WC pan with cistern
Ref. 110790
Floor-standing WC pan with dual flush cistern 3L/6L, 370 x 895 x 700mm.
700mm elongated pan for better comfort for people with reduced mobility.
Bacteriostatic 304 stainless steel. Polished satin finish.
Stainless steel thickness: 1.5mm.
One-piece pressed WC bowl, seam-free for better hygiene.
WC bowl surface is polished with rounded edges for easy cleaning.
Concealed perimetral flushing rim. Water supply can be recessed from below or exposed from the side (right/left).
Recessed horizontal or vertical waste outlet. Supplied with PVC pipe.
Pre-drilled holes for fixing the toilet seat. Supplied with stainless steel blanking caps when installed without toilet seat lid.
Quick to install: 2 access panels with theft prevention TORX security screws.
CE marked. Complies with European standard EN 997 for 4L flush.
Weight: 22kg.
10-year warranty.
TECHNICAL FEATURES
MONOBLOCO 700 PMR WC pan with cistern
Ref. 110790
Height | 895mm |
---|---|
Length | 700mm |
Width | 370mm |
Thickness | 1.5mm |
Finish | Polished satin 304 stainless steel |
Nova2 Care
630,00 €
-
Components y materials
-
FOLDING BAR: folded in a trapezoidal shape and manufactured with a 32 mm diameter AISI 304 stainless steel tube satin finish. Both bar ends are welded to the vertical column, made of a 32 mm diameter stainless steel AISI 304 tube. The grip zones of the bar have a safety anti-slip finish to improve the user safety. It incorporates a paper roll holder 120 mm length, made of a 6 mm diameter AISI 304 stainless steel rod.
-
WALL MOUNTING PLATE: made of an AISI 304 stainless steel satin finish rectangular plate of 125 x 100 mm and 10 mm thick. It incorporates four Ø 8 mm countersunk holes, to fix the bar to the wall.
-
FLOOR MOUNTING PLATE: made of an AISI 304 stainless steel satin finish circular plate of Ø 75 mm and 5 mm thick. It incorporates three Ø 7 mm countersunk holes to fix the bar on the floor.
-
UNLOCK HANDLE: made of black thermoplastic.
BG0089CS Satin finish
Technical specifications
Dimensions
Grab bar and column diameter Wall mounting plate thickness Floor mounting plate thickness Paper roll holder diameter
700 x 835 x 100 mm
Ø 32 mm 10.0 mm 5.0 mmØ 6.0 mm
Be-Line® matte white straight grab bar Ø 35mm, L. 300mm
Ref. 511903W
Be-Line® straight grab bar Ø 35mm, for people with reduced mobility.
For use as a handrail or grab bar for WCs, showers or baths.
Aluminium tube, 3mm thick. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Matte white powder-coated aluminium provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall:minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
300mm centre-to-centre.
Tested to over 200kg. Maximum recommended user weight: 135kg.
Technical features
Be-Line® matte white straight grab bar Ø 35mm, L. 300mm
Ref. 511903W
Length | 300mm |
---|---|
Width to the wall | 38mm |
Thickness | 3mm |
Finish | Matte white powder-coated aluminium |
Be-Line® matt white straight grab bar Ø 35mm, L. 400mm
Ref. 511904W
Be-Line® straight grab bar Ø 35mm, for people with reduced mobility.
For use as a handrail or grab bar for WCs, showers or baths.
Aluminium tube, 3mm thick. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Matte white powder-coated aluminium finish provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
400mm centre-to-centre.
Tested to over 200kg. Maximum recommended user weight: 135kg.
Technical features
Be-Line® matt white straight grab bar Ø 35mm, L. 400mm
Ref. 511904W
Length | 400mm |
---|---|
Width to the wall | 38mm |
Thickness | 3mm |
Finish | Matte white powder-coated aluminium |
