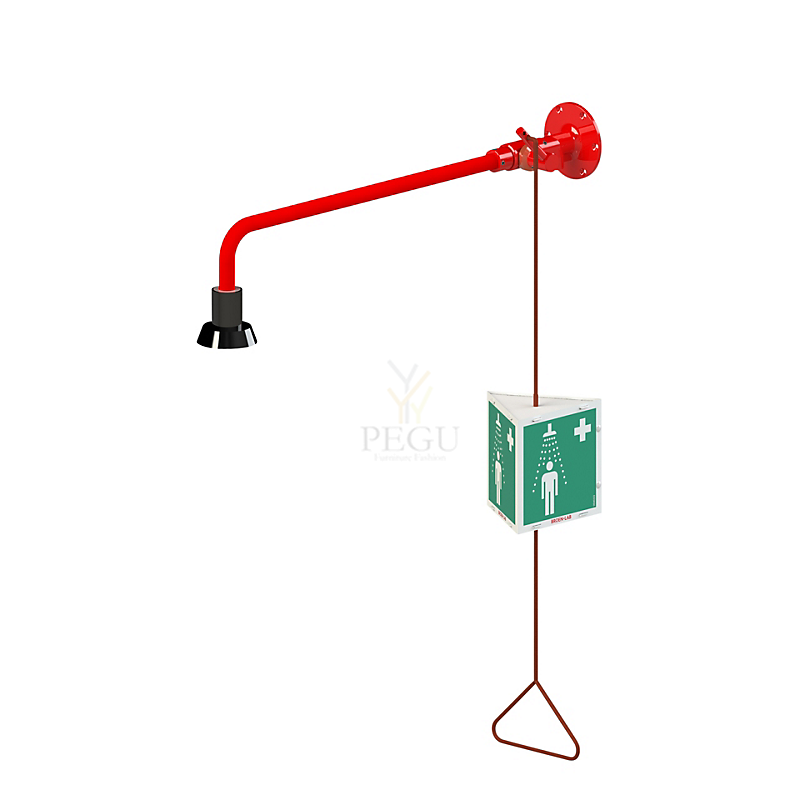

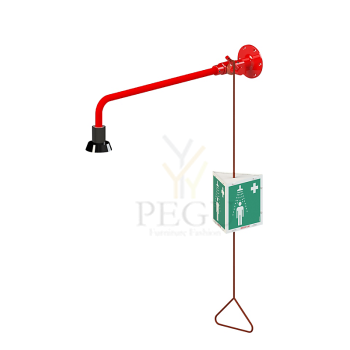

SOS душ безопасности для тела, настенное крепление 3/4"

Артикул: BR-17582009
Бренд:
Единица: шт
Время доставки: 7-14 дней
Цена: 615,00 €
584,25 €
Kuumakse alates: 49,66 €
Кол-во: - +

SOS душ безопасности для тела, настенное крепление 3/4"

Файлы

Схожие продукты
Ögondusch för bänk med skål

Ögon/ansiktsdusch med skål och bänkfäste. Alla delar är ytbehandlade med BROEN-LABs POLYCOAT som inte bara gör att ögon- & ansiktsduschen syns väldigt bra, den står även emot de flesta kemikalier, UV blekning och värme. Utrustad med FLOWFIX som gör spolbilden stadig i varierande vattentryck.

• Min. arbetstryck: 1,5 bar
• Fälls in i bänk
• POLYCOAT står emot de flesta kemikalier
• Uppsamlingsskål i rostfritt stål med POLYCOAT
• FLOWFIX: 26 l/min
• 2-sidig efterlysande skylt, dekal & testkort
• Vikt: ca. 3,5 kg
• Anslutning: inv. DN15
• Avloppsanslutning: inv. DN32

Artikelnummer: 17 934 009

Артикул: B-17934009 ,   Время доставки: 3-4 недели
1211,25 € (5%)
1275,00 €
BROEN-LAB fully recirculating fittings ensure constant fresh
water with no dead legs even when the point-of-use valve is in closed position.
The Tee-piece of the fitting should be connected to a loop with a constant circulation of water. For more details about installation, jointing methods, etc. please refer to page 22.
SPECIFICATIONS
Handle: Metal, BROEN-LAB POLYCOAT powder coated
with media indication according to EN13792
Hose nozzle: Removable plastic
Headwork: Diaphragm type
Opening/closing function: 1 1/2 x 360°
Temperature range: 0-65°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 1.8 kg
MATERIALS WITH MEDIA CONTACT
Diaphragm: PTFE
Plastics: PP, PP-n, PVDF
Rubber: EPDM
ORDERING INFORMATION
For standard configuration please refer to the item
numbers below.
Other options:
- also available in ABS (1, 11/4 , 11/2)
Артикул: B-25330431036 ,   Время доставки: 14-21 день
565,25 € (5%)
595,00 €

S P E C I F I C AT I O N S
Handle: Metal, BROEN-LAB POLYCOAT powder coated

with media indication according to EN13792
Hose nozzle: Removable/external G3/4 thread, metalHeadwork: Diaphragm type
Opening/closing function: 1 1/2 x 360°Temperature range: 0-90°C
Max. working pressure: 10 bar / 147 psi
Test pressure: 1 x working pressure
Weight: 0.9 kg

MATERIALS WITH MEDIA CONTACT

Metals: Stainless Steel, AISI 316Diaphragm: PTFE
Rubber: EPDM

ORDERING INFORMATION

For standard configuration please refer to the item numbers below.

Артикул: B-25330011003 ,   Время доставки: 14-21 день
356,25 € (5%)
375,00 €
Nöd-ögondusch med väggfäste

Kombinerad kropps- & ögon/ansiktsdusch för väggmontage (Utan skål)
Utrustad med självdränerande duschsil och ögondusch för minskad bakterietillväxt. Den röda POLYCOAT-lackerade rörstommen gör inte bra att första hjälpenutrustningen syns väldigt bra, den står även emot de flesta kemikalier, UV- blekning och värme.

• Kroppsdusch med effektiv spolbild, självdränerande duschsil
• Självdränerande ögon/ansiktsdusch med FLOWFIX 26 lit/min
• POLYCOAT-lackerad rörstomme
• 3-sidig efterlysande skylt monterad på dragstång, dekal & testkort
• Vikt: ca. 8 kg
• Anslutning: inv. DN25 i toppen eller botten


Artikelnummer: 17 455 009

Артикул: B-17964004 ,   Время доставки: 3-4 недели
2873,75 € (5%)
3025,00 €

Eye wash and safety shower combination
Ref. 9203

Free-standing eye wash and safety shower combination with manual or foot control includes:
Frost-free system as standard.
304 stainless steel basin Ø 250mm with green finish.
Eye wash spray heads fitted with protective caps in shock-resistant green ABS; will eject automatically when activated.
Flow rate 20 lpm at 3 bar, aerators have stainless steel double filters.
Circular shower head Ø 250mm in green, shock-resistant ABS.
Flow rate 70 lpm at 1 bar dynamic pressure (120 lpm at 3 bar dynamic pressure).
Water supply F1".
Pipework made from galvanised steel, grey powder-coated finish. Triangular pull handle in green powder-coated brass. Hand and foot controls in green powder-coated galvanised steel.
Fixed to the floor by a brass base plate (screws not included).
Supplied with identification signs for first aid equipment: "Safety Shower" and "Eye Wash".

Operation:
1/4-turn, nickel plated brass valves open and close quickly.
Simultaneous Eye Wash and Shower:
Water flows simply by pulling on the triangular handle.
The flow will continue even when the handle is released.
The flow will stop when the handle is returned to its original position.
Eye Wash only:
Water flow is operated by the foot pedal or the hand control. The eye wash will continue to flow when the pedal or hand control is released.
The water flow will stop when the hand control is pulled towards the user or the foot pedal is raised.
10-year warranty.
The water does not shut off automatically, allowing the injured person to have both hands free (to remove their clothing, keep their eyes open, etc.).

TECHNICAL FEATURES

Eye wash and safety shower combination
Ref. 9203

Supply F1"
Height 2207mm
Length 660mm
Drop height 2115mm
Flow rate 120 lpm at 3 bar dynamic pressure
Артикул: DE-9203 ,   Время доставки: 14-21 день
1462,50 € (10%)
1625,00 €
