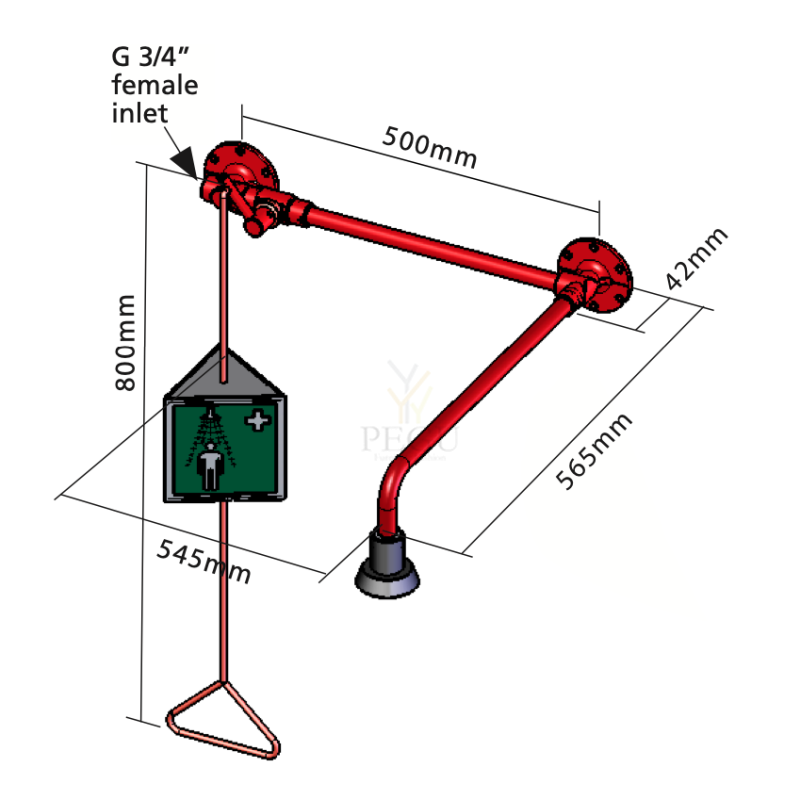

SOS душ безопасности для тела, настенное крепление над дверью 3/4"
Бренд:
Единица: шт
Время доставки: 7-14 дней
Обязательно указать в спецификации проекта : PEGU OÜ
SOS душ безопасности для тела, настенное крепление над дверью 3/4"
Файлы
8 l/min
Min. working pressure: 1.5 bar for all Eye Showers
Wall-mounted safety shower
Ref. 9108
Wall-mounted safety shower with manual control includes:
Frost-free system as standard.
Circular shower head Ø 250mm in green, shock-resistant ABS.
1/4-turn, nickel-plated brass valve opens and closes quickly.
Water flows simply by pulling on the triangular handle.
The flow will continue even when the handle is released.
The flow will stop when the handle is returned to its original position.
Flow rate 70 lpm at 1 bar dynamic pressure (120 lpm at 3 bar dynamic pressure).
Water supply F1".
Pipework made from galvanised steel, grey powder-coated finish. Triangular pull handle in green powder-coated brass.
Supplied with identification sign for first aid equipment: "Safety Shower".

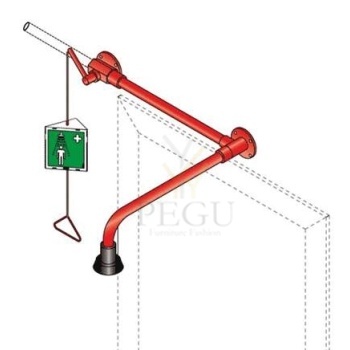

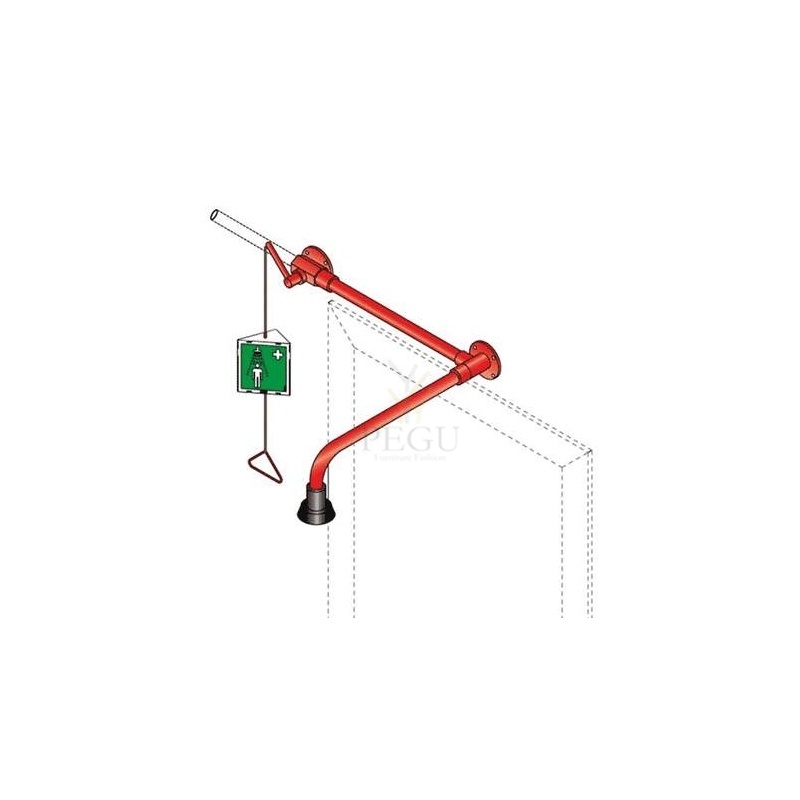

For cross wall installation, with recessed supply, or for mounting on a false ceiling (we recommend a 1" mounting bracket).
TECHNICAL FEATURES
Wall-mounted safety shower
Ref. 9108
| Supply | F1" |
|---|---|
| Height | 450mm |
| Length | 625mm |
| Flow rate | 120 lpm at 3 bar dynamic pressure |
| Finish | Epoxy |
Single valve turret fitting for compressed air with quick release coupling
1-Valve,Turret,1-Hole,Quick Coup.,M30,Hose,CA
2532 056 1021-52B
compressed air, nitrogen, carbon dioxide, argon, helium, low vacuum (1000 to 1 mbar)
Fittings are delivered with a 700mm SPX hose with OD10mm inlet conneciton.
MATERIALS WITH MEDIA CONTACT
Metals: Brass
Plastics: PVDF, SPX (hose)
Sealing: FKM
Lubricant: Perfluoropolyether based
ORDERING INFORMATION
For standard configuration please refer to the item numbers below.
Other options:
- different media
- removable hose nozzle with union nut
- disability-friendly handle (single valve only)
- micro flow headwork (for 2.0 non-burning gases) - high flow headwork (for 2.0 non-burning gases)
- alternative hose inlet connection / without a hose - other inlet options (type, length)
Kombinerad kropps- & ögon/ansiktsdusch med skål för golvmontage.
Utrustad med självdränerande duschsil och ögondusch för minskad bakterietillväxt. Den röda POLYCOAT-lackerade rörstommen i rostfritt stål gör inte bra att första hjälpenutrustningen syns väldigt bra, den står även emot de flesta kemikalier, UV- blekning och värme.
• Kroppsdusch med effektiv spolbild, självdränerande duschsil
• Anpassaade mått för rullstolsburen användare
• Självdränerande ögon/ansiktsdusch med FLOWFIX 26 lit/min
• POLYCOAT-lackerad rörstomme i rostfritt stål
• Uppsamlingsskål i rostfritt stål med POLYCOAT
• 3-sidig efterlysande skylt monterad på dragstång, dekal & testkort
• Vikt: ca. 17 kg
• Anslutning: inv. DN25 i toppen eller botten
• Avloppsanslutning: inv. 1”
Artikelnummer: 17 656009
