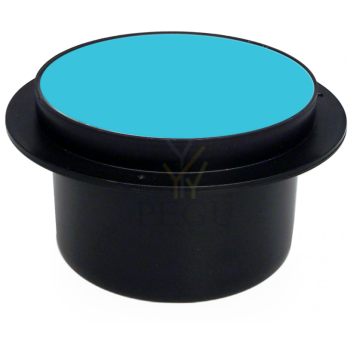

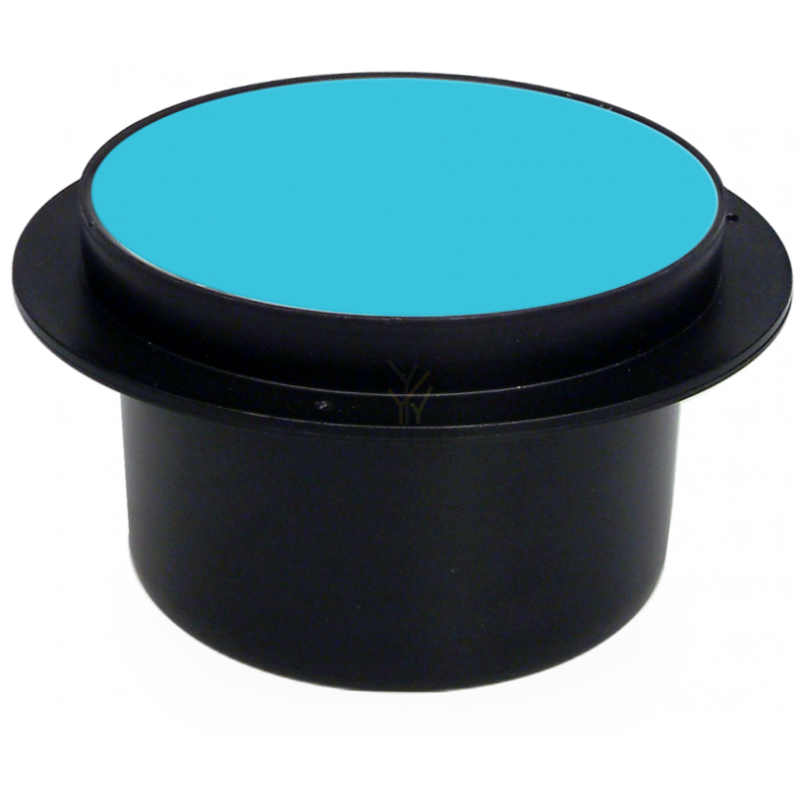

Вертикальный трап VIESER 51125 50 mm

Артикул: AKV51125
Бренд:
Единица: шт
Время доставки: 3-7 дней
Цена:
18,30 €
Кол-во: - +
   - или -

Вертикальный трап VIESER 51125 50 mm

Vertikaalne trapp VIESER 51125 50 mm

Vieser vertical drain DN 50

HVAC No. 3312350


Suitable for sewerage systems for regular wastewater.

The Vieser vertical floor drain is part of the Vieser floor drain system.

The package contains Vieser vertical floor drain, a water trap, a protective lid, a clamping ring, a seal and a white plastic grating

The floor drain can be used with a Vieser extension ringswaterproofing flange or gratings.

Technical specifications

Vieser No.
51125
HVAC No.
3312350
EAN
6418685511256
Package (box/pallet)
8/192
Package dimensions
20 x 12 x 20 cm
Package weight
0,5 kg
Material
Polypropylene PP
Usage
Suitable for sewerage systems for regular wastewater.
Flow
1,3l/s
General information

The package contains Vieser vertical floor drain, a water trap, a protective lid, a clamping ring, a seal and a white plastic grating

Vieser vertical floor drain can be used with a Vieser extension ring, waterproofing flange or grating.
