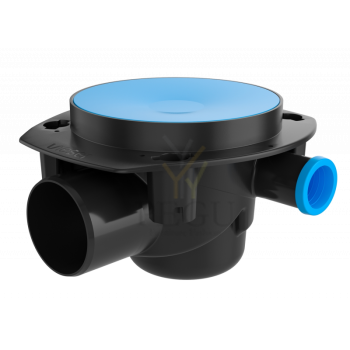

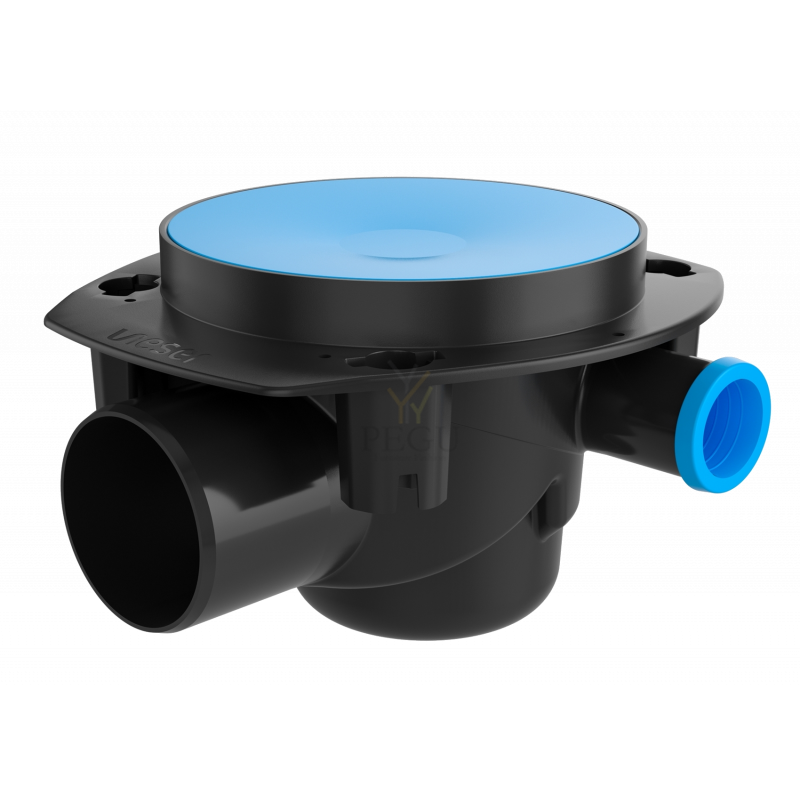

VIESER ONE трап 75 3X32/40 боковой отвод

Артикул: AKV52611
Бренд:
Единица: шт
Время доставки: 7-14 дней
Цена:
36,60 €
Кол-во: - +
   - или -

VIESER ONE трап 75 3X32/40 боковой отвод

Vieser One floor drain DN75 3×32/40 (without support legs)



Suitable for sewerage systems for regular wastewater.

The Vieser One horizontal floor drain is part of the Vieser floor drain system. The floor drain can be used with a Vieser extension ring, waterproofing flange or grating. The drain includes three 32/40 mm side inlets that can be opened. The package package contains the floor drain, protective lid,  a water trap, a seal, a clamping ring and a clamping ring installation tool.

Technical specifications

Vieser No.
52611
HVAC No.
7110408
Package (box/pallet)
17/136
Package dimensions
23 x 14,5 x 22 cm
Package weight
0,9 kg
Material
Polypropylene PP
Usage
Suitable for sewerage systems for regular wastewater.
Flow
1,6l/s
General information

The floor drain is compatible with Vieser extension rings, distance rings, waterproofing flange and grating system.

The drain includes three 32/40 mm side inlets that can be opened. The package contains the floor drain, a water trap, a seal, a clamping ring and a clamping ring installation tool.
