Delabie Be-line lift-up съёмное душевое сидение ОТЕЛЬ, ГОСПИТАЛЬ, СПА

Wall-mounted Be-Line® toilet brush set with lid.
White powder-coated 304 bacteriostatic stainless steel.
Model with anti-theft lock for fixing.
Robust model.
Easy to clean: plastic bowl can be removed from above.
Plastic bowl with reservoir: prevents the brush from sitting in stagnant water and splashing when next used.
Toilet brush automatically centres itself in the holder.
Stainless steel thickness: 1mm body.
Dimension : Ø 90 x 410mm.

TECHNICAL FEATURES

Be-Line® wall-mounted toilet brush set with lid
Ref. 4051MW

Be-line® L-shaped grab bar for showers or baths.
Helps the user stand and move safely in the shower or bath.
Use as a shower rail by adding a shower head holder and/or soap dish.
Can be installed with upright bar on the left or right.
Aluminium tube thickness 3mm. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Metallised anthracite powder-coated finish provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Dimensions: 1,130 x 450mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.

Be-line® L-shaped grab bar for showers or baths.
Helps the user stand and move safely in the shower or bath.
Use as a shower rail by adding a shower head holder and/or soap dish.
Can be installed with upright bar on the left or right.
Aluminium tube thickness 3mm. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Matte white powder-coated aluminium provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Dimensions: 1,130 x 450mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.

TECHNICAL FEATURES

Be-line® L-shaped grab bar, matte white, H. 1,130mm
Ref. 511971W

Be-line® L-shaped grab bar for showers or baths.
Helps the user stand and move safely in the shower or bath.
Use as a shower rail by adding a shower head holder and/or soap dish.
Aluminium tube thickness 3mm. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Metallised anthracite powder-coated finish provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Dimensions: 750 x 450mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.

Technical features

Be-line® L-shaped grab bar, anthracite, H. 750mm
Ref. 511970C

Be-line® L-shaped grab bar for showers or baths.
Helps the user stand and move safely in the shower or bath.
Use as a shower rail by adding a shower head holder and/or soap dish.
Can be installed with upright bar on the left or right.
Aluminium tube thickness 3mm. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Matte white powder-coated aluminium provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Dimensions: 750 x 450mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.

TECHNICAL FEATURES

Be-line® L-shaped grab bar, white, H. 750mm
Ref. 511970W

Be-line removable lift-up shower seat for people with reduced mobility.
Large model.
Removable: easy to remove with anti-theft locking system. Reduces the number of shower seats in a facility, allowing installation only when required e.g. hotels or hospitals providing short-term accommodation for people with reduced mobility.
Retained in upright position. Slowed down descent.
Suitable for intensive use in public places or the healthcare sector.
Solid, reinforced seat made from high strength polymer which can be installed, without a supporting leg, on any suitable wall.
Non-slip surface.
Metallised anthracite powder-coated aluminium provides a good visual contrast with the wall.
Solid aluminium mounting bracket.
5 concealed fixing points.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Dimensions: 455 x 450 x 90mm.
Folded dimensions: 85 x 470mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.

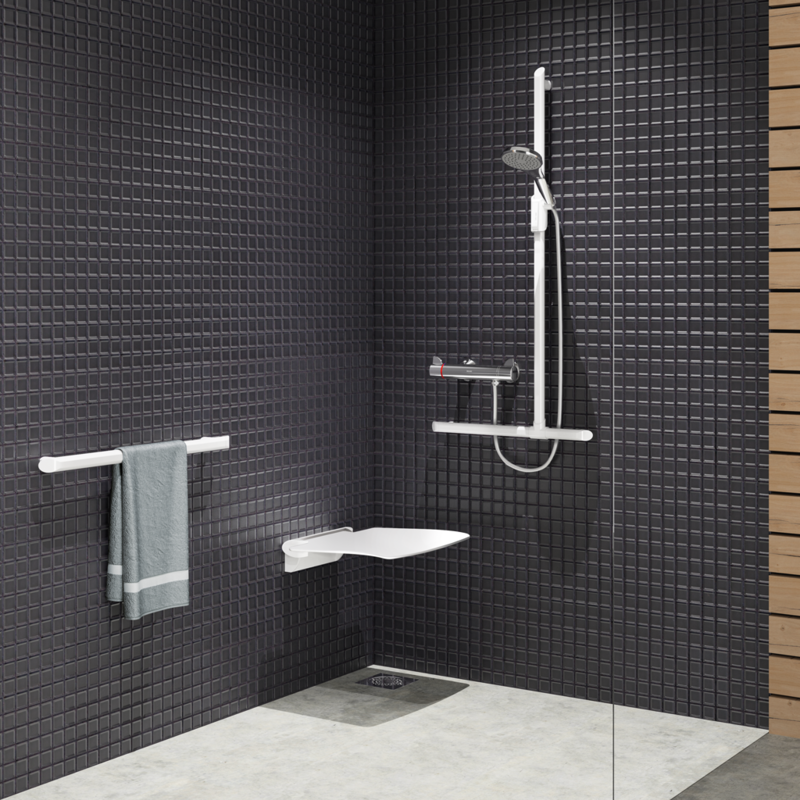

Be-line removable lift-up shower seat for people with reduced mobility.
Large model.
Removable: easy to remove with anti-theft locking system. Reduces the number of shower seats in a facility, allowing installation only when required e.g. hotels or hospitals providing short-term accommodation for people with reduced mobility.

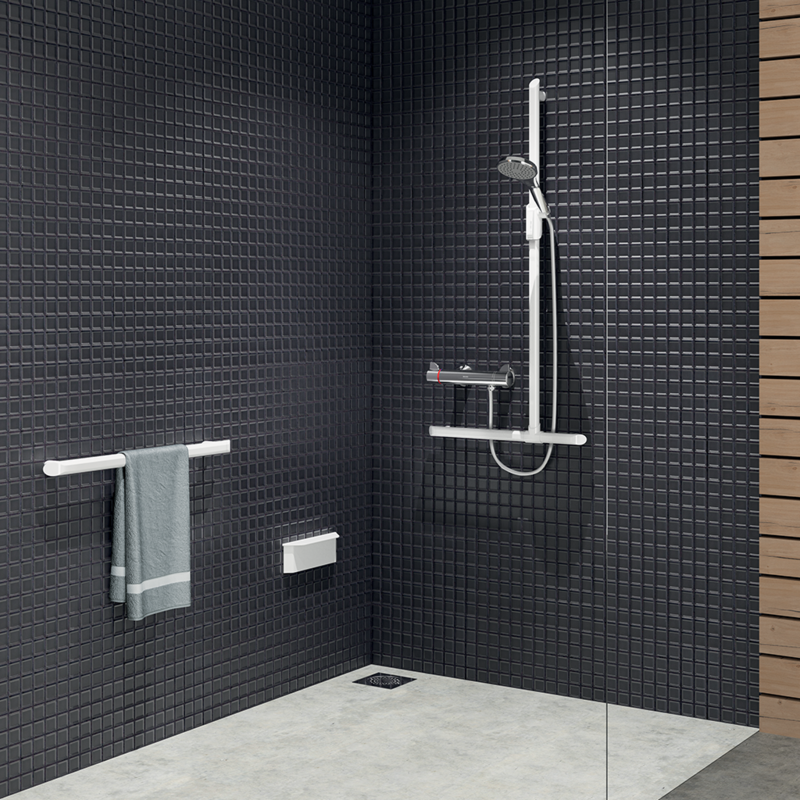

Retained in upright position. Slowed down descent.
Suitable for intensive use in public places or the healthcare sector.
Solid, reinforced seat made from high strength polymer which can be installed, without a supporting leg, on any suitable wall.
Non-slip surface.
Matte white powder-coated aluminium provides a good visual contrast with the wall.
Solid aluminium mounting bracket.
5 concealed fixing points.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Dimensions: 455 x 450 x 90mm.
Folded dimensions: 83 x 470mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.

Be-line removable lift-up for people with reduced mobility.
Large model.
Removable: easy to remove with anti-theft locking system. Reduces the number of shower seats in a facility, allowing installation only when required e.g. hotels or hospitals providing short-term accommodation for people with reduced mobility.
Retained in upright position. Slowed down descent.
Suitable for intensive use in public places or the healthcare sector.
Solid seat made from high strength polymer.
Non-slip surface.
Reinforced by a central, hinged leg which folds automatically.
Metallised anthracite finish provides a good visual contrast with the wall.
5 concealed fixing points.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Dimensions: 443 x 450 x 480mm.
Folded dimensions: 87 x 541mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.

Technical features

Be-line lift-up shower seat with leg
Ref. 511930C

Be-line removable lift-up for people with reduced mobility.
Large model.
Removable: easy to remove with anti-theft locking system. Reduces the number of shower seats in a facility, allowing installation only when required e.g. hotels or hospitals providing short-term accommodation for people with reduced mobility.
Retained in upright position. Slowed down descent.
Suitable for intensive use in public places or the healthcare sector.
Solid seat made from high strength polymer.
Non-slip surface.
Reinforced by a central, hinged leg which folds automatically.
Matte white aluminium finish provides a good visual contrast with the wall.
5 concealed fixing points.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Dimensions: 443 x 450 x 480mm.
Folded dimensions: 87 x 541mm.
Tested to over 200kg. Maximum recommended user weight: 135kg.

Technical features

Be-line lift-up shower seat with leg
Ref. 511930W

Be-line T-shaped grab bar Ø 35mm for showers with sliding vertical bar.
Use as a shower rail and to support the user in an upright position.
Helps and secures entry and movement in the shower.
Use as a shower rail by adding a sliding shower head holder and/or soap dish.
Upright position can be adjusted during installation: can be moved to the left or the right in order to adapt the space(positioning of shower, depth of shower seat...).
Dimensions: 1,130 x 500mm.
Aluminium tube thickness 3mm. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Metallised anthracite powder-coated aluminium provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings.
Supplied with Ø 8 x 70mm stainless steel screws for concrete walls.
Tested to over 200kg. Maximum recommended user weight: 135kg.

Technical features

Be-line T-shaped shower grab bar with sliding vertical bar
Ref. 511944C

Be-line T-shaped grab bar Ø 35mm for showers with sliding vertical bar..
Use as a shower rail and to support the user in an upright position.
Helps and secures entry and movement in the shower.
Use as a shower rail by adding a sliding shower head holder and/or soap dish.
Upright position can be adjusted during installation: can be moved to the left or the right in order to adapt the space(positioning of shower, depth of shower seat...).
Dimensions: 1,130 x 500mm.
Aluminium tube thickness 3mm. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Matte white powder-coated aluminium provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings.
Supplied with Ø 8 x 70 mm stainless steel screws for concrete walls.
Tested to over 200kg. Maximum recommended user weight: 135kg.

TECHNICAL FEATURES

Be-line T-shaped shower grab bar with sliding vertical bar
Ref. 511944W

Be-line corner grab bar with sliding vertical bar Ø 35mm, for showers.
Use as a grab bar and to support the user in an upright position.
Helps and secures entry and movement in the shower.
Use as a shower rail by adding a sliding shower head holder and/or soap dish.
Upright position can be adjusted during installation: can be moved to the left or the right in order to adapt the space(positioning of shower, depth of shower seat...).
Dimensions: 1,130 x 695 x 6950mm.
Aluminium tube thickness 3mm. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Metallised anthracite powder-coated finish provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Tested to over 200kg. Maximum recommended user weight: 135kg.

Technical features

Be-line corner grab bar with sliding vertical bar
Ref. 511949C

Be-line corner grab bar with sliding vertical bar Ø 35mm, for showers.
Use as a grab bar and to support the user in an upright position.
Helps and secures entry and movement in the shower.
Use as a shower rail by adding a sliding shower head holder and/or soap dish.
Upright position can be adjusted during installation: can be moved to the left or the right in order to adapt the space (positioning of shower, depth of shower seat...).
Dimensions: 1,130 x 695 x 695mm.
Aluminium tube thickness 3mm. Solid aluminium fixing points.
Rounded profile Ø 35mm with ergonomic flat front face that prevents rotation for an optimal grip.
Matte white powder-coated aluminium provides a good visual contrast with the wall.
Uniform surface for easy maintenance and hygiene.
38mm gap between the bar and the wall: minimal space prevents the forearm passing between the bar and the wall, reducing the risk of fracture in case of loss of balance.
Concealed fixings.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Tested to over 200kg. Maximum recommended user weight: 135kg.

Technical features

Be-line corner grab bar Ø 35mm with sliding vertical bar, for showers
Ref. 511949W

Wall-mounted Be-Line® toilet brush set with lid.
Metallised anthracite powder-coated 304 bacteriostatic stainless steel.
Model with anti-theft lock for fixing.
Robust model.
Easy to clean: plastic bowl can be removed from above.
Plastic bowl with reservoir: prevents the brush from sitting in stagnant water and splashing when next used.
Toilet brush automatically centres itself in the holder.
Stainless steel thickness: 1mm body.
Dimensions: Ø 90 x 410mm.

TECHNICAL FEATURES

Be-Line® wall-mounted toilet brush set with lid
Ref. 4051C

Wall-mounted Be-Line® toilet brush set without lid.
Metallised anthracite powder-coated 304 bacteriostatic stainless steel.
Model with anti-theft lock for fixing.
Robust model.
Easy to clean: plastic bowl can be removed from above.
Plastic bowl with reservoir: prevents the brush from sitting in stagnant water and splashing when next used.
Stainless steel thickness: 1mm body.
Dimensions: Ø 90 x 330mm.

TECHNICAL FEATURES

Be-Line® wall-mounted toilet brush set
Ref. 4048C

Wall-mounted Be-Line® toilet brush set without lid.
White powder-coated 304 bacteriostatic stainless steel.
Model with anti-theft lock for fixing.
Robust model.
Easy to clean: plastic bowl can be removed from above.
Plastic bowl with reservoir: prevents the brush from sitting in stagnant water and splashing when next used.
Stainless steel thickness: 1mm body.
Dimensions: Ø 90 x 330mm.

TECHNICAL FEATURES

Be-Line® wall-mounted toilet brush set
Ref. 4048MW

Matte white, wall-mounted shelf to conceal fixings without mounting bracket for Be-Line shower seats.
Conceals the mounting bracket when the lift-up shower seat is removed.
Reduces the number of lift-up shower seats in a facility, allowing installation only when required. E.g. hotels or hospitals providing short-term accommodation for people with reduced mobility.
Dimensions: 55 x 275 x 90mm.

Technical features

Wall-mounted shelf to conceal fixings in showers
Ref. 511921W

Matte white wall-mounted shelf for showers to conceal fixings with mounting bracket for Be-Line shower seats.
Conceals the mounting bracket when the lift-up shower seat is removed.
Reduces the number of lift-up shower seats in a facility, allowing installation only when required. E.g. hotels or hospitals providing short-term accommodation for people with reduced mobility.
Supplied with stainless steel screws Ø 8 x 70mm for concrete walls.
Dimensions: 55 x 275 x 90mm.

TECHNICAL FEATURES

Wall-mounted shelf for showers to conceal fixings
Ref. 511921FW

Be-Line metallised anthracite cover plate without fixings plate.
Conceals fixing screws when the drop-down support rail is removed.
Reduces the number of drop-down rails in a facility, allowing installation only when required.
Example: hotels or hospitals providing short-term accommodation for people with reduced mobility.

TECHNICAL FEATURES

Cover plate for Be-Line drop-down rail
Ref. 511950C

Be-Line metallised anthracite cover plate with fixings plate.
Conceals fixing screws when the drop-down support rail is removed.
Reduces the number of drop-down rails in a facility, allowing installation only when required.
Example: hotels or hospitals providing short-term accommodation for people with reduced mobility.
Supplied with stainless steel screws for concrete walls.

TECHNICAL FEATURES

Cover plate for Be-Line drop-down rail with fixings plate
Ref. 511950FC

Be-Line matte white cover plate without fixings plate.
Conceals fixing screws when the drop-down support rail is removed.
Reduces the number of drop-down rails in a facility, allowing installation only when required.
Example: hotels or hospitals providing short-term accommodation for people with reduced mobility.

TECHNICAL FEATURES

Cover plate for Be-Line drop-down rail
Ref. 511950W

Be-Line matte white cover plate with fixings plate.
Conceals fixing screws when the drop-down support rail is removed.
Reduces the number of drop-down rails in a facility, allowing installation only when required.
Example: hotels or hospitals providing short-term accommodation for people with reduced mobility.
Supplied with stainless steel screws for concrete walls.

TECHNICAL FEATURES

Cover plate for Be-Line drop-down rail with fixings plate
Ref. 511950FW

Be-Line sliding shower head holder.
Metallised anthracite.
Support for tilting shower head.
Easy-to-operate ergonomic grip to adjust the height of the shower head holder.
Slides by pressing the grip or pulling on the flexible hose.

Technical features

Be-Line sliding shower head holder
Ref. 511911C

Be-Line sliding shower head holder.
Matte white.
Support for tilting shower head.
Easy-to-operate ergonomic grip to adjust the height of the shower head holder.
Slides by pressing the grip or pulling on the flexible hose.

TECHNICAL FEATURES

Be-Line sliding shower head holder
Ref. 511911W

Metallised anthracite shelf for grab bars, for showers.
Installed against the all on the bar.
Anti-theft locking screw.
Ideal for shower gel or soap.
2 hooks for gloves.

TECHNICAL FEATURES

Metallised anthracite shelf for grab bars for showers
Ref. 511922C

White shelf for grab bars, for showers.
Installed against the all on the bar.
Anti-theft locking screw.
Ideal for shower gel or soap.
2 hooks for gloves.

TECHNICAL FEATURES

White shelf for grab bars for showers
Ref. 511922W

Tilting mirror with long ergonomic lever which facilitates adjustment of mirror angle from a sitting position or by wheelchair users.
For combined installation: can be used from sitting or standing position.
Quick and easy to install: just clip into place.
Anti-theft lock.
Bright white HR Nylon lever
6mm thick Securit safety glass mirror.
Mirror dimensions: 500 x 600mm.
Can be tilted up to 20°.

Technical features

Tilting mirror with long ergonomic lever
Ref. 510201N

Tilting glass mirror with handle for easy adjustment those in a seated position or in a wheelchair.
For combined installation: can be used from sitting or standing position.
Quick and easy to install: simply clip into place.
Anti-theft lock.
Metallised anthracite tab handle.
Mirror made from 6mm Securit safety glass.
Mirror dimensions: 500 x 600mm.
Can be tilted up to 20°.

TECHNICAL FEATURES

Adjustable mirror with handle
Ref. 510202C

Tilting glass mirror with handle for easy adjustment those in a seated position or in a wheelchair.
For combined installation: can be used from sitting or standing position.
Quick and easy to install: simply clip into place.
Anti-theft lock.
Metallised anthracite tab handle.
Mirror made from 6mm Securit safety glass.
Mirror dimensions: 500 x 600mm.
Can be tilted up to 20°.

Technical features

Tilting mirror with tab handle
Ref. 510202N

Wall-mounted Be-Line® toilet brush set with lid and long lever.
Metallised anthracite powder-coated 304 bacteriostatic stainless steel.
Model with anti-theft lock for fixing.
Robust model.
Long ergonomic handle: easy for wheelchair users or those who have difficulty bending to use.
Easy to clean: plastic bowl can be removed from above.
Plastic bowl with reservoir: prevents the brush from sitting in stagnant water and splashing when next used.
Toilet brush automatically centres itself in the holder.
Stainless steel thickness: 1mm body.
Dimensions: Ø 90 x 580mm.

TECHNICAL FEATURES

Be-Line® wall-mounted toilet brush set with lid and long handle
Ref. 510051C
