Presto CHEF новое поколение профессиональных кухонных смесителей
Ref: 70838 - Ergonomic rinsing head – adjustable 2 jets – G 1/2 ’
> THE PRODUCT BENEFITS > Handle:
Shot blasted: non-slippery with wet gloves
Ergonomic shape and length of the handle: for better grip
Wetting jet: to rinse the dishes
Concentrated spray: to stain dishes
Black and chrome bi-color design: limits the risk of visible stains
Ergonomic hand shower with continuous flow function, and gripping surface limiting the risk of burns. End piece to absorb shocks.
Blocking hook to avoid MSDs (musculoskeletal disorders)
> TECHNICAL SPECIFICATIONS
> Recommended working pressure:
1 to 5 bars
> Flow rate:
12L / min at 3 bar
> Hydraulic supply:
G 1/2 '' (15x 21)
> Material and color of finish:
Chromed brass body
Chromed zamak handle
Injected metal hook
Handle and jet outlet in technical polymer resistant to impact, temperature and compatible with drinking water
> Thermal resistance:
Withstands a temperature of 75 ° C for 30 minutes (in the context of thermal shock).
> Delivered with:
NF check valve
> Standards and approvals:
Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540
Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227
152,50 €
Ref: 70806 - Wall-mounted mixer tap with 2 holes – downward spout
> THE PRODUCT BENEFITS
Resistant to intensive use
Reinforced body / spout interface with double sliding bearings: no play and high endurance
Robust spout: diameter 22 mm
Intuitive and ergonomic knobs: easy grip
Hygiene: spout with smooth interior
Wall version: facilitates cleaning and promotes optimal hygiene
Product design
Ease of cleaning
High spout to let large containers pass
Easy maintenance: presence of a slot under the red / blue patch allowing the passage of a screwdriver Ease of maintenance: availability of all spare parts
Flow straightener to channel water and avoid lateral water splashes
> TECHNICAL SPECIFICATIONS > Model:
360 ° swivel spout, projection 300 mm, height under "body" 182 mm, diameter 22 mm. Spout thickness: 1.5 mm. 1/4 turn ceramic head with flow rate 81L / min at 3 bar
Interchangeable anti-tartar flow straightener
> Recommended working pressure:
1 to 5 bars
> Flow rate:
81L / min at 3 bar
> Hydraulic supply:
Eccentric fittings M 1/2 '' M 3/4 '' supplied with rosettes
> Material and color of finish:
Chromed brass body and spout Material compliant with the "UBA" list
> Thermal resistance:
Withstands a temperature of 75 ° C for 30 minutes (in the context of thermal shock).
> Delivered with :
NF check valves 2 filters
> Standards and approvals:
Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540
Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227
Ref: 70804 - Wall-mounted mixer tap with 2 holes – upward spout
> THE PRODUCT BENEFITS
Resistant to intensive use
Reinforced body / spout interface with double sliding bearings: no play and high endurance
Robust spout: diameter 22 mm.
Intuitive and ergonomic knobs: easy grip
Hygiene: spout with smooth interior
Wall version: facilitates cleaning and promotes optimal hygiene
Product design
High spout to let large containers pass
Easy maintenance: presence of a slot under the red / blue patch allowing the passage of a screwdriver Ease of maintenance: availability of all spare parts
Flow straightener to channel water and avoid lateral water splashes
> TECHNICAL SPECIFICATIONS > Model:
Wall-mounted mixer with spout above
360 ° swivel spout, 250 mm projection, height under spout 226 mm, diameter 22 mm. Spout thickness: 1.5 mm 1/4 turn ceramic head with flow rate 81L / min at 3 bar
Interchangeable anti-tartar flow straightener
> Recommended working pressure:
1 to 5 bars
> Flow rate:
81L / min at 3 bar
> Hydraulic supply:
M1 /2'' M3 /4'' offset fittings supplied with rosettes
> Material and color of finish:
Chromed brass body and spout Material compliant with the "UBA" list
> Thermal resistance :
Withstands a temperature of 75 ° C for 30 minutes (in the context of thermal shock).
> Delivered with :
NF check valves 2 filters
> Standards and approvals:
Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540
Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227
Ref: 70812 - Column – deck-mounted mixer – rinsing head
> THE PRODUCT BENEFITS
Resistant to intensive use
Spring flexibility
Ergonomic hand shower with continuous flow function, and gripping surface limiting the risk of burns. Tip to absorb shocks. Locking hook to avoid MSDs (musculoskeletal disorders)
Reinforced body / column interface
Intuitive and ergonomic knobs: easy grip
Product design
Adjustable wall support
PU sheath shower hose to avoid bacterial niches and facilitate cleaning
Easy maintenance: presence of a slot under the red / blue patch allowing the passage of a screwdriver
Ease of maintenance: availability of all spare parts
> TECHNICAL SPECIFICATIONS > Model:
1/4 turn ceramic head mixer
Black M 1/2 '' hand shower with grip surface limiting the risk of burns. Regulated flow 12L / min. User adjustable jet: concentrated or wetting. Anti-scale shower head. Locking hook for continuous flow. Integrated non-return valve.
Guide spring for stainless steel hose
Adjustable wall support, can be cut from 60 to 200 mm (from column to wall)
Adjustable hand shower holder: left or right
> Recommended working pressure:
1 to 5 bars
> Flow rate:
12L / min at 3 bar
> Hydraulic supply:
G 1/2 '' (15x 21)
> Material and color of finish:
Body and column in chromed brass Injected metal hook
Material compliant with the "UBA" list
> Thermal resistance :
Withstands a temperature of 75 ° C for 30 minutes (in the context of thermal shock).
> Delivered with:
1 fixing bracket
1 filter
2 PEX flexible hoses with stainless steel braided nut G1 / 2 '' Lg 660 mm with non-return valves NF
1 stainless steel braided hose (hand shower) surrounded by a PU sheath, resistant to temperatures up to 90 ° C. Continuous operating temperature at 70 ° C maximum
> Standards and approvals:
Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540
Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227

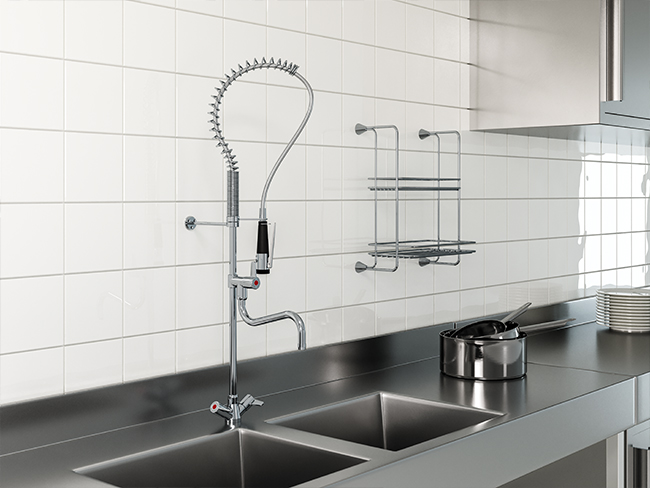

Ref: 70820 - Column – deck-mounted mixer – rinsing head
> THE PRODUCT BENEFITS
Resistant to intensive use
Spring flexibility
Ergonomic hand shower with continuous flow function, and gripping surface limiting the risk of burns. Tip to absorb shocks. Locking hook to avoid MSDs (musculoskeletal disorders)
Fast filling of tanks: 30L / min at 3 bar
Reinforced body / column interface
Intuitive and ergonomic knobs: easy grip
Product design
Adjustable wall support
PU sheath shower hose to avoid bacterial niches and facilitate cleaning
Easy maintenance: presence of a slot under the red / blue patch allowing the passage of a screwdriver
Ease of maintenance: availability of all spare parts
Flow straightener to channel water and avoid lateral water splashes
> TECHNICAL SPECIFICATIONS > Model:
Single-turn mixer with ceramic head 1/4 turn with flow rate of 30L / min at 3 bar
1/4 turn ceramic head tap with filling spout - adjustable
Black M 1/2'' hand shower with grip surface limiting the risk of burns. Regulated flow: 12L / min. User adjustable jet: concentrated or wetting. Anti-scale shower head. Locking hook for continuous flow. Integrated NF check valve.
Guide spring for stainless steel hose
Adjustable wall support, can be cut from 60 to 200 mm (from column to wall)
Adjustable hand shower holder: left or right
Interchangeable anti-tartar flow straightener
> Recommended working pressure:
1 to 5 bars
> Flow rate:
30 L / min at 3 bar
> Hydraulic supply:
G 1/2 '' (15x 21)
> Material and color of finish:
Chromed brass body and spout Injected metal hook
Material compliant with the "UBA" list
> Thermal resistance:
Withstands a temperature of 75 ° C for 30 minutes (as part of thermal shock).
> Delivered with :
1 fixing bracket
2 PEX flexible hoses with stainless steel braided nut G1 / 2 '' Lg 660 mm with non-return valves NF
1 filter
1 stainless steel braided hose (hand shower) surrounded by a PU sheath, resistant to temperatures up to 90 ° C. Service operating temperature at 70 ° C maximum continuously
> Standards and approvals:
Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540
Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227
> THE PRODUCT BENEFITS
"Mini" format particularly suitable for small spaces: space saving
Resistant to intensive use
Spring flexibility
Ergonomic hand shower with continuous flow function, and gripping surface limiting the risk of burns Fast filling of tanks: 30L / min at 3 bar
Reinforced body / column interface
Intuitive and ergonomic knobs: easy grip
Product design
Adjustable wall support
Locking hook to avoid MSD (musculoskeletal disorder)
PVC sheath shower hose to avoid bacterial niches and facilitate cleaning
Easy maintenance: presence of a slot under the red / blue pad allowing the passage of a screwdriver Ease of maintenance: availability of all spare parts
Flow straightener to channel water and avoid lateral water splashes
> Dimensions:
Overall height: 667 mm
> Model:
Single-turn mixer with ceramic head 1/4 turn with flow rate of 30L / min at 3 bar
1/4 turn ceramic head tap with filling spout 290 mm projection - adjustable
Black hand shower M 1/2 '' with grip surface limiting the risk of burns
Shower flow: 12L / Min (regulated) - User adjustable jet: concentrated or wetting - Anti-tartar spray nozzle - Locking hook for continuous flow - integrated NF check valve
Interchangeable anti-tartar flow straightener
Guide spring for stainless steel hose
Adjustable wall support, can be cut from 60 to 200 mm (from column to wall) Adjustable shower holder on the left or right
> Recommended working pressure:
1 to 5 bars
> Flow rate:
30L / min at 3 bar
> Hydraulic supply:
G 1/2 '' (15x 21)
> Material and color of finish:
Body, spout and column in chromed brass Material compliant with the "UBA" list
> Thermal resistance :
Withstands a temperature of 75 ° C for 30 minutes (in the context of thermal shock).
> Delivered with :
1 fixing bracket
2 PEX flexible hoses with stainless steel braided nut G1 / 2 '' Lg 660 mm with non-return valves NF
2 filters
1 stainless steel braided hose (hand shower) surrounded by a PVC sheath, resistant to temperatures up to 90 ° C. Continuous operating temperature at 70 ° C maximum
Ref: 70800 - Deck-mounted mixer – upward spout
> THE PRODUCT BENEFITS
Resistant to intensive use
Reinforced body / spout interface with double sliding bearings: no play and high endurance Robust spout: 22 mm in diameter
Ergonomic and robust control: easy grip
Robust mixing handle - possibility to install it laterally (installation flexibility)
Hygiene: spout with smooth interior
Product design
Ease of cleaning
High spout to let large containers pass
Ease of maintenance: availability of all spare parts
Flow straightener to channel water and avoid lateral water splashes
> TECHNICAL SPECIFICATIONS > Model:
Single-lever deck-mounted mixer with spout above
360 ° swivel spout, 250 mm projection, height under spout 276 mm, diameter 22 mm. Spout thickness: 1.5 mm. Ceramic cartridge
Interchangeable anti-tartar flow straightener
> Recommended working pressure:
1 to 5 bars
> Flow rate:
25L / min at 38°C at 3 bar
> Hydraulic supply:
G 1/2 '' (15x 21)
> Material and color of finish:
Chromed brass body and spout Material compliant with the "UBA" list
> Thermal resistance :
Withstands a temperature of 75 ° C for 30 minutes (as part of thermal shock).
> Delivered with :
1 fixing bracket
2 PEX flexible hoses with stainless steel braided nut G1 / 2 '' Lg 660 mm with non-return valves NF 2 filters
> Option:
Possibility of adding an extension sold separately, facilitating the passage of large containers
> Standards and approvals:
Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540
Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227
Ref: 70802 - Deck-mounted single hole mixer with upward spout
> THE PRODUCT BENEFITS
Resistant to intensive use
Reinforced body / spout interface with double sliding bearings: no play and high endurance
Robust spout: 22 mm in diameter
Intuitive and ergonomic knobs: easy grip
Hygiene: spout with smooth interior
Product design
Ease of cleaning
High spout to let large containers pass
Easy maintenance: presence of a slot under the red / blue patch allowing the passage of a screwdriver Ease of maintenance: availability of all spare parts
Flow straightener to channel water and avoid lateral water splashes
> TECHNICAL SPECIFICATIONS > Model:
Deck-mounted single hole mixer with upward spout
360 ° swivel spout, projection 250 mm, height under spout 251 mm, diameter 22 mm. Spout thickness: 1.5 mm. 1/4 turn ceramic head with flow rate 37L / min at 3 bar
Interchangeable anti-tartar flow straightener
> Recommended working pressure:
1 to 5 bars
> Flow rate:
37L / min at 3 bar
> Hydraulic supply:
G 1/2 '' (15x 21)
> Material and color of finish:
Chromed brass body and spout Material compliant with the "UBA" list
> Thermal resistance :
Withstands a temperature of 75 ° C for 30 minutes (as part of thermal shock).
> Delivered with:
1 fixing bracket
2 PEX flexible hoses with stainless steel braided nut G1 / 2 '' Lg 660 mm with non-return valves NF 2 filters
> Option:
Possibility of adding an extension sold separately, facilitating the passage of large containers
> Standards and approvals:
Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540
Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227
Ref: 70808 - Deck-mounted mixer tap with 2 holes – upward spout
> THE PRODUCT BENEFITS
Resistant to intensive use
Reinforced body / spout interface with double sliding bearings: no play and high endurance
Robust spout: diameter 22 mm
Intuitive and ergonomic knobs: easy grip
Hygiene: spout with smooth interior
Product design
Ease of cleaning
Easy maintenance: presence of a slot under the red / blue patch allowing the passage of a screwdriver Ease of maintenance: availability of all spare parts
Flow straightener to channel water and avoid lateral water splashes
> TECHNICAL SPECIFICATIONS > Model:
Two-hole deck mixer with spout above
360 ° swivel spout, projection 308 mm, height under spout 296 mm, diameter 22 mm. Spout thickness: 1.5 mm. 1/4 turn ceramic head
Interchangeable anti-tartar flow straightener
> Recommended working pressure:
1 to 5 bars
> Flow rate:
81L / min at 3 bar
> Hydraulic supply:
G 1/2 '' (15x 21)
> Material and color of finish:
Chromed brass body and spout Material compliant with the "UBA" list
> Thermal resistance :
Withstands a temperature of 75 ° C for 30 minutes (in the context of thermal shock).
> Delivered with:
Columns with nut 2 filters
> Standards and approvals:
Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540
Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227
Ref: 70832 - Special ' Under Counter ' Bar- Deck-mounted mixer tap
> THE PRODUCT BENEFITS
Special "Bar" application:
the spout is hidden under the counter: more aesthetic
offset of the joystick on the side: easy access for washing
Resistant to intensive use
Reinforced body / spout interface with double sliding bearings: no play and high endurance Robust spout: Ø 22 mm - thickness 1.5mm
Ergonomic and robust control: easy grip
Hygiene: spout with smooth interior
Product design
Ease of cleaning
Ease of maintenance: availability of all spare parts
Flow straigntener to channel water and avoid lateral water splashes
> TECHNICAL SPECIFICATIONS > Model:
360 ° swivel spout 250 mm projection. Height under spout 146 mm - diameter 22 mm Spout thickness: 1.5 mm
Ceramic cartridge with flow 25 L / min at 38°C at 3 bar
Interchangeable anti-tartar flow straightener
> Recommended working pressure:
1 to 5 bars
> Flow rate:
25L / min at 38°C at 3 bar
> Hydraulic supply:
G 1/2 '' (15x 21)
> Material and color of finish:
Chromed brass body and spout Material compliant with the "UBA" list
> Thermal resistance :
Withstands a temperature of 75 ° C for 30 minutes (in the context of thermal shock).
> Delivered with:
1 fixing bracket
2 PEX flexible hoses with stainless steel braided nut G1 / 2 '' Lg 660 mm with non-return valves NF 2 filters
> Option:
Possibility of adding an extension sold separately, facilitating the passage of large containers
> Standards and approvals:
Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540
Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227
Ref: 70834 - Lateral control – Deck-mounted mixer tap – upward spout
> THE PRODUCT BENEFITS
Resistant to intensive use
Reinforced body / spout interface with double sliding bearings: no play and high endurance Robust spout: Ø 22 mm - thickness 1.5mm
Ergonomic and robust control: easy grip
Remote control on the side: easy access for washing
Hygiene: spout with smooth interior
Product design
Ease of cleaning
High spout to let large containers pass
Ease of maintenance: availability of all spare parts
Flow straightener to channel water and avoid lateral water splashes
> TECHNICAL SPECIFICATIONS > Model:
360 ° swivel spout 250 mm projection Height under spout 276 mm - diameter 22 mm Spout thickness: 1.5 mm
Ceramic cartridge with flow 25 L / min at 38°C at 3 bar
Interchangeable anti-tartar flow straightener
Side elbow control
> Recommended working pressure:
1 to 5 bars
> Flow rate:
25L / min at 38°C at 3 bar
> Hydraulic supply:
G 1/2 '' (15x 21)
> Material and color of finish:
Chromed brass body and spout Material compliant with the "UBA" list
> Thermal resistance :
Withstands a temperature of 75 ° C for 30 minutes (in the context of thermal shock).
> Delivered with :
1 fixing bracket
2 PEX flexible hoses with stainless steel braided nut G1 / 2 '' Lg 660 mm with non-return valves NF 2 filters
> Option:
Possibility of adding an extension sold separately, facilitating the passage of large containers
> Standards and approvals:
Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540
Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227
Ref: 70810 - Column – deck-mounted mixer – rinsing head
> THE PRODUCT BENEFITS
Resistant to intensive use
Spring flexibility
Ergonomic hand shower with continuous flow function and gripping surface limiting the risk of burns. Tip to absorb shocks. Locking hook to avoid MSDs (musculoskeletal disorders)
Reinforced body / column interface
Robust mixing handle - possibility of installing it laterally
Product design
Adjustable wall support
PU sheath shower hose to avoid bacterial niches and facilitate cleaning
Ease of maintenance: availability of all spare parts
> TECHNICAL SPECIFICATIONS > Dimensions:
Maximum fixing height: 632 mm
> Model:
Single-lever mixer with ceramic cartridge
Black M1/ 2'' hand shower with grip surface limiting the risk of burns. Regulated flow 12L / min. User adjustable jet: concentrated or wetting. Anti-scale shower head. Locking hook for continuous flow. Integrated non-return valve.
Guide spring for stainless steel hose
Adjustable wall support, can be cut from 60 to 200 mm (from column to wall)
Adjustable hand shower holder: left or right
> Recommended working pressure:
1 to 5 bars
> Shower flow:
12 L /min at 3 bar
> Hydraulic supply:
G 1/2 '' (15x 21)
> Material and color of finish:
Body and column in chromed brass
Injected metal hook
Handle and jet outlet in impact-resistant, temperature-resistant technical polymer and compatible with drinking water Material compliant with the "UBA" list
> Thermal resistance :
Withstands a temperature of 75 ° C for 30 minutes (in the context of thermal shock).
> Delivered with :
1 fixing bracket
1 filter
2 PEX flexible hoses with stainless steel braided nut G1 / 2 '' Lg 660 mm with non-return valves NF
1 stainless steel braided hose (hand shower) surrounded by a PU sheath, resistant to temperatures up to 90 ° C. Continuous operating temperature at 70 ° C maximum
NF check valve on the hand shower
> Standards and approvals:
Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540
Ref: 70818 - Column –deck-mounted mixer – rinsing head
> THE PRODUCT BENEFITS
Resistant to intensive use
Spring flexibility
Ergonomic hand shower with continuous flow function and gripping surface limiting the risk of burns. Tip to absorb shocks. Locking hook to avoid MSDs (musculoskeletal disorders)
Reinforced body / column interface
Robust mixing handle - possibility of installing it laterally
Product design
Adjustable wall support
PU sheath shower hose to avoid bacterial niches and facilitate cleaning
Ease of maintenance: availability of all spare parts
> TECHNICAL SPECIFICATIONS > Dimensions:
Maximum fixing height: 632 mm
> Model:
Single-lever mixer with ceramic cartridge
Black M1/ 2'' hand shower with grip surface limiting the risk of burns. Regulated flow 12L / min. User adjustable jet: concentrated or wetting. Anti-scale shower head. Locking hook for continuous flow. Integrated non-return valve.
Guide spring for stainless steel hose
Adjustable wall support, can be cut from 60 to 200 mm (from column to wall)
Adjustable hand shower holder: left or right
> Recommended working pressure:
1 to 5 bars
> Shower flow:
12 L /min at 3 bar
> Hydraulic supply:
G 1/2 '' (15x 21)
> Material and color of finish:
Body and column in chromed brass
Injected metal hook
Handle and jet outlet in impact-resistant, temperature-resistant technical polymer and compatible with drinking water Material compliant with the "UBA" list
> Thermal resistance :
Withstands a temperature of 75 ° C for 30 minutes (in the context of thermal shock).
> Delivered with :
1 fixing bracket
1 filter
2 PEX flexible hoses with stainless steel braided nut G1 / 2 '' Lg 660 mm with non-return valves NF
1 stainless steel braided hose (hand shower) surrounded by a PU sheath, resistant to temperatures up to 90 ° C. Continuous operating temperature at 70 ° C maximum
NF check valve on the hand shower
> Standards and approvals:
Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540
Ref: 70822 - Column – deck-mounted mixer – rinsing head
> THE PRODUCT BENEFITS
Resistant to intensive use
Spring flexibility
Ergonomic hand shower with continuous flow function, and gripping surface limiting the risk of burns. Tip to absorb shocks Fast filling of tanks: 20L /min at 3 bar
Reinforced body / column interface
Robust mixing handle - possibility of installing it laterally
Product design
Adjustable wall support
Locking hook to avoid musculoskeletal disorder
PU sheath shower hose to avoid bacterial niches and facilitate cleaning
Ease of maintenance: availability of all spare parts
Flow straightener to channel water and avoid lateral water splashes
> TECHNICAL SPECIFICATIONS > Model:
Single-lever mixer with ceramic cartridge with flow rate of 20L / min at 3 bar
1/4 turn ceramic head tap with filling spout Lg 300 mm - adjustable
Black hand shower M 1/2'' with grip surface limiting the risk of burns
Shower flow: 12L / Min (regulated) - User adjustable jet: concentrated or wetting - Anti-tartar shower nozzle - Locking hook for continuous flow - integrated NF check valve
Interchangeable anti-tartar flow straightener
Guide spring for stainless steel hose
Adjustable wall support, can be cut from 60 to 200 mm (from column to wall) Adjustable shower holder on the left or right
> Recommended working pressure:
1 to 5 bars
> Flow rate:
20L /min at 3 bar
> Hydraulic supply:
G 1/2 '' (15x 21)
> Material and color of finish:
Body, spout and column in chromed brass Injected metal hook
Material compliant with the "UBA" list
> Thermal resistance :
Withstands a temperature of 75 ° C for 30 minutes (as part of thermal shock).
> Delivered with :
1 fixing bracket
2 PEX flexible hoses with stainless steel braided nut G1 / 2 '' Lg 660 mm with non-return valves NF
1 filter
1 stainless steel braided hose (hand shower) surrounded by a PU sheath, resistant to temperatures up to 90 ° C. Continuous operating temperature at 70 ° C maximum
> Standards and approvals:
Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540
Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227
Ref: 70824 - Column – deck-mounted mixer – rinsing head
Resistant to intensive use
Spring flexibility
Ergonomic hand shower with continuous flow function, and gripping surface limiting the risk of burns. Tip to absorb shocks Fast filling of tanks: 30L / min at 3 bar
Reinforced body / column interface
Intuitive and ergonomic knobs: easy grip
Product design
Adjustable wall support
Locking hook to avoid MSD (musculoskeletal disorder)
PU sheath shower hose to avoid bacterial niches and facilitate cleaning
Easy maintenance: presence of a slot under the red / blue pad allowing the passage of a screwdriver
Ease of maintenance: availability of all spare parts
> TECHNICAL SPECIFICATIONS > Model:
Single-turn mixer with ceramic head 1/4 turn with flow rate of 30L /min at 3 bar
1/4 turn ceramic head tap with filling spout Lg 300 mm - adjustable
Black M 1/2'' hand shower with grip surface limiting the risk of burns
Shower flow: 12L / Min (regulated) - User adjustable jet: concentrated or wetting - Anti-scale shower nozzle - Locking hook for continuous flow - integrated NF non- return valve
Guide spring for stainless steel hose
Adjustable wall support, can be cut from 60 to 200 mm (from column to wall) Adjustable shower holder on the left or right
Interchangeable anti-tartar flow straightener
> Recommended working pressure:
1 to 5 bars
> Flow rate:
30 L /min at 3 bar
> Hydraulic supply:
G 1/2 '' (15x 21)
> Material and color of finish:
Chromed brass body and spout Injected metal hook
Material compliant with the "UBA" list
> Thermal resistance :
Withstands a temperature of 75 ° C for 30 minutes (in the context of thermal shock)
> Delivered with :
1 fixing bracket
2 PEX flexible hoses with stainless steel braided nut G1 / 2 '' Lg 660 mm with non-return valves NF
1 filter
1 stainless steel braided hose (hand shower) surrounded by a PU sheath, resistant to temperatures up to 90 ° C. Service operating temperature at 70 ° C maximum continuously
> Standards and approvals:
Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540
Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227
Ref: 70814 - Wall-mounted column with 2 holes– rinsing head
> THE PRODUCT BENEFITS
Resistant to intensive use
Spring flexibility
Ergonomic hand shower with continuous flow function, and gripping surface limiting the risk of burns. Tip to absorb shocks. Locking hook to avoid MSDs (musculoskeletal disorders)
Reinforced body / column interface
Intuitive and ergonomic knobs: easy grip
Product design
Wall version: facilitates cleaning and promotes optimal hygiene
Adjustable wall support
PU sheath shower hose to avoid bacterial niches and facilitate cleaning
Easy maintenance: presence of a slot under the red / blue patch allowing the passage of a screwdriver
Ease of maintenance: availability of all spare parts
> TECHNICAL SPECIFICATIONS > Model:
1/4 turn ceramic head mixer
Black M 1/2'' hand shower with grip surface limiting the risk of burns
Shower flow regulated at 12L / min. User adjustable jet: concentrated or wetting. Anti-scale shower head. Locking hook for continuous flow. Integrated non-return valve. Guide spring for stainless steel hose
Adjustable wall support, can be cut from 60 to 200 mm (from column to wall)
Adjustable hand shower holder: left or right
> Recommended working pressure:
1 to 5 bars
> Shower flow:
12L /min at 3 bar
> Hydraulic supply:
G 1/2 '' (15x 21)
> Material and color of finish:
Body and column in chromed brass Injected metal hook
Material compliant with the "UBA" list
> Thermal resistance :
Withstands a temperature of 75 ° C for 30 minutes (as part of thermal shock).
> Delivered with :
Eccentric rosettes
1 filter
1 stainless steel braided hose (hand shower) surrounded by a PU sheath, resistant to temperatures up to 90 ° C. Continuous operating temperature at 70 ° C maximum
> Standards and approvals:
Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540
Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227
Ref: 70816 - Deck-mounted column with 2 holes –rinsing head
> THE PRODUCT BENEFITS
Resistant to intensive use
Spring flexibility
Ergonomic hand shower with continuous flow function, and gripping surface limiting the risk of burns. Tip to absorb shocks. Locking hook to avoid MSD (musculoskeletal disorder)
Reinforced body / column interface
Intuitive and ergonomic knobs: easy grip
Product design
Adjustable wall support
PU sheath shower hose to avoid bacterial niches and facilitate cleaning
Easy maintenance: presence of a slot under the red / blue patch allowing the passage of a screwdriver
Ease of maintenance: availability of all spare parts
> TECHNICAL SPECIFICATIONS > Model:
1/4 turn ceramic head mixer
Black M 1/2'' hand shower with grip surface limiting the risk of burns. Flow regulated at 12L / min. User adjustable jet: concentrated or wetting. Anti-scale shower head. Locking hook for continuous flow. Integrated NF check valve.
Guide spring for stainless steel hose
Adjustable wall support, can be cut from 60 to 200 mm (from column to wall)
Adjustable hand shower holder: left or right
> Recommended working pressure:
1 to 5 bars
> Flow rate:
12L /min at 3 bar
> Hydraulic supply:
Male tap inlet G1 / 2 ''
> Material and color of finish:
Body and column in chromed brass Injected metal hook
Material compliant with the "UBA" list
> Thermal resistance :
Withstands a temperature of 75 ° C for 30 minutes (as part of thermal shock).
> Delivered with :
Columns with nut and filter
1 stainless steel braided hose (hand shower) surrounded by a PU sheath, resistant to temperatures up to 90 ° C. Continuous operating temperature at 70 ° C maximum
> Standards and approvals:
Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540
Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227
Ref: 70826 - Wall-mounted column with 2 holes– rinsing head
> THE PRODUCT BENEFITS
Resistant to intensive use
Spring flexibility
Ergonomic hand shower with continuous flow function, and gripping surface limiting the risk of burns Fast filling of tanks: 30L /min at 3 bar
Reinforced body / column interface
Intuitive and ergonomic knobs: easy grip
Easy maintenance: presence of a slot under the red / blue patch allowing the passage of a screwdriver Wall version: facilitates cleaning and promotes optimal hygiene
Product design
Flow straightener to channel water and avoid lateral water splashes
> TECHNICAL SPECIFICATIONS > Dimensions:
Height under spout: 228 mm
Spout projection: 340 mm
Height of the fixing: 582 mm compared to the body EA 150 mm
> Model:
Wall-mounted two-hole mixer with ceramic head 1/4 turn with flow rate of 30L /min at 3 bar
1/4 turn ceramic head tap with filling spout Lg 300 mm - adjustable
Black M 1/2'' hand shower with grip surface limiting the risk of burns
Shower flow: 12L / Min (regulated) - User adjustable jet: concentrated or wetting - Anti-tartar shower nozzle - Locking hook for continuous flow - integrated NF check valve
Interchangeable anti-tartar flow straightener
Guide spring for stainless steel hose
Adjustable wall support, can be cut from 60 to 200 mm (from column to wall) Adjustable shower holder on the left or right
> Recommended working pressure:
1 to 5 bars
> Flow rate:
30L /min at 3 bar
> Hydraulic supply:
G 1/2 '' (15x 21)
> Material and color of finish:
Body, spout and column in chromed brass Injected metal hook
Material compliant with the "UBA" list
> Thermal resistance:
Withstands a temperature of 75 ° C for 30 minutes (in the context of thermal shock).
> Delivered with:
Eccentric rosettes
1 filter
1 stainless steel braided hose (hand shower) surrounded by a PU sheath, resistant to temperatures up to 90 ° C. Continuous operating temperature at 70 ° C maximum
Ref: 70828 - Wall-mounted column with 2 holes – rinsing head
> THE PRODUCT BENEFITS
Resistant to intensive use
Spring flexibility
Ergonomic hand shower with continuous flow function, and gripping surface limiting the risk of burns. Tip to absorb shocks Fast filling of tanks: 30L / min at 3 bar
Reinforced body / column interface
Intuitive and ergonomic knobs: easy grip
Product design
Adjustable wall support
Locking hook to avoid MSD (musculoskeletal disorder)
PU sheath shower hose to avoid bacterial niches and facilitate cleaning
Easy maintenance: presence of a slot under the red / blue pad allowing the passage of a screwdriver
Ease of maintenance: availability of all spare parts
Flow straightener to channel water and avoid lateral water splashes
> TECHNICAL SPECIFICATIONS > Model:
Two-hole mixer on deck with 1/4 turn ceramic head with flow rate of 30L /min at 3 bar
1/4 turn ceramic head tap with filling spout Lg 300 mm - adjustable
Black hand shower M 1/2 '' with grip surface limiting the risk of burns
Shower flow: 12L / Min (regulated) - User adjustable jet: concentrated or wetting - Anti-tartar spray nozzle - Locking hook for continuous flow - integrated NF check valve
Interchangeable anti-tartar flow straightener
Guide spring for stainless steel hose
Adjustable wall support, can be cut from 60 to 200 mm (from column to wall) Adjustable shower holder on the left or right
> Recommended working pressure:
1 to 5 bars
> Flow rate:
30L /min at 3 bar
> Hydraulic supply:
G 1/2 '' (15x 21)
> Material and color of finish:
Body, spout and column in chromed brass Injected metal hook
Material compliant with the "UBA" list
> Thermal resistance :
Withstands a temperature of 75 ° C for 30 minutes (in the context of thermal shock).
> Delivered with :
Columns with nut
1 filter
1 stainless steel braided hose (hand shower) surrounded by a PVC sheath, resistant to temperatures up to 90 ° C. Continuous operating temperature at 70 ° C maximum
> Standards and approvals:
Chromed brass body compliant with standards NF EN1982 / NF EN 12164 / NF EN 12165 Nickel-Chrome surface treatment according to NF EN12540
Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227
Ref: 70836 - Extension
> THE PRODUCT BENEFITS
Easy assembly by screwing
Allows to easily upgrade an already installed tap
> TECHNICAL SPECIFICATIONS > Model:
Height of the extension: 300 mm
> Connection:
By screwing
Compatible with references 70800/70802 and all single-hole versions of the PRESTO CHEF range
> Materials :
Chromed brass
